CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 217 SW RADIO

Type: 5 tube, superheterodyne receiver
Frequency coverage: Broadcast band (535 to 1610 kHz)  plus short wave (5.82 to 15.6 MHz).
Tube lineup: 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Audio output: 0.5 watts
Power  input: AC or DC,  117 volts
Cabinet: Walnut
Comment: Other radios in the 217 series include models 217A and 217B. These two sets have a built-in phonograph.



Model 217 - front view
Model 217 - rear view

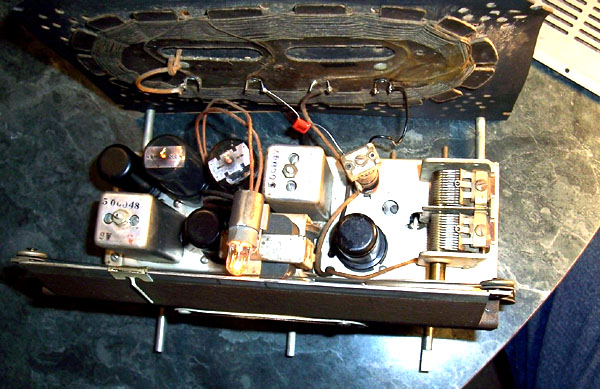

Model 217 - top view of chassis. Also showing the loop antenna.
/217_07.jpg

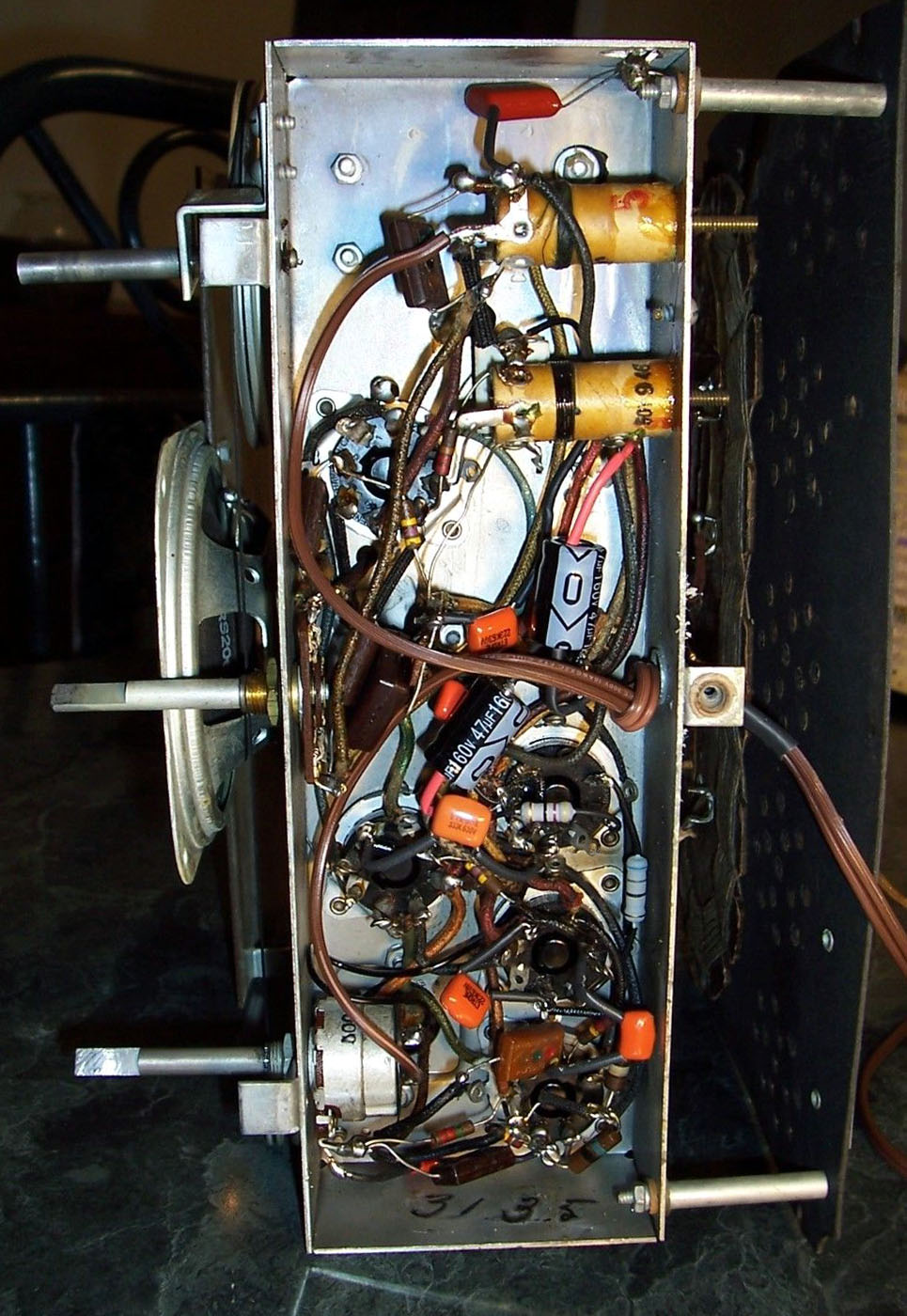

Model 217 - Bottom view of chassis

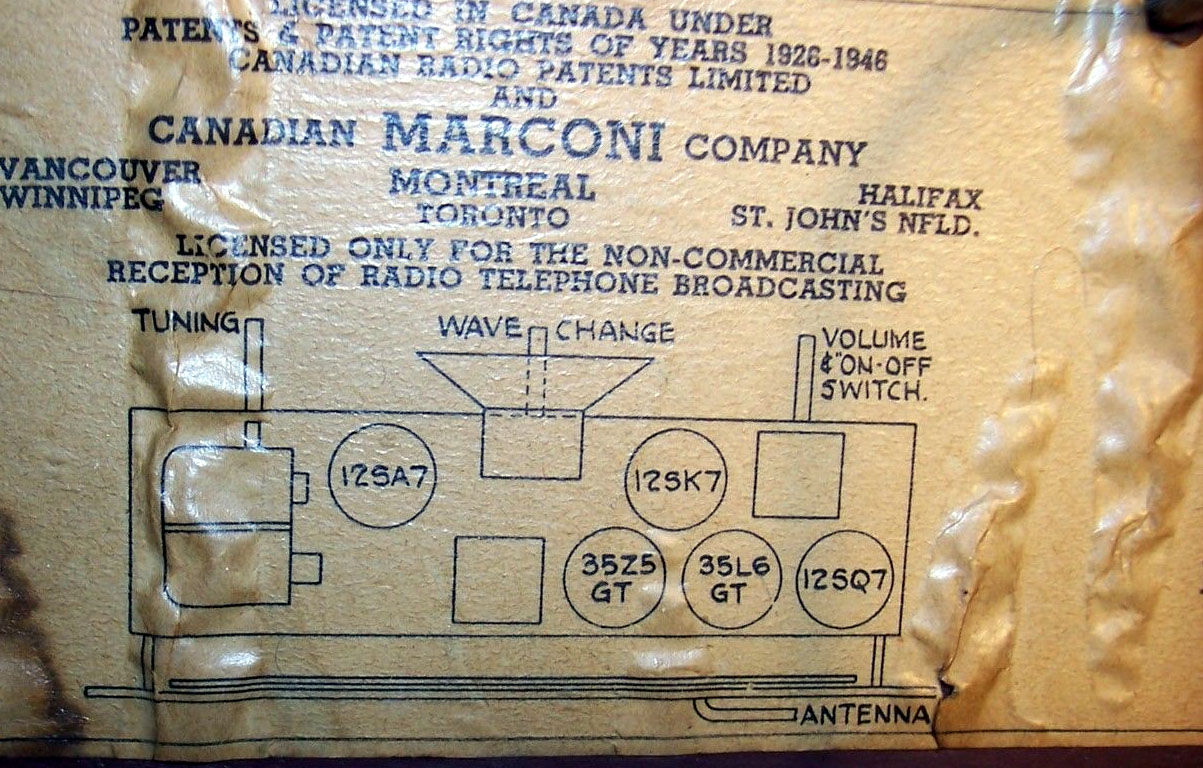

Model 217  - Tube chart on back cover.
Model 217 nameplate.
All Model 217 photos via E-bay.
Contributor or References:

1) https://www.radiomuseum.org/r/canadia_ma_217.html
