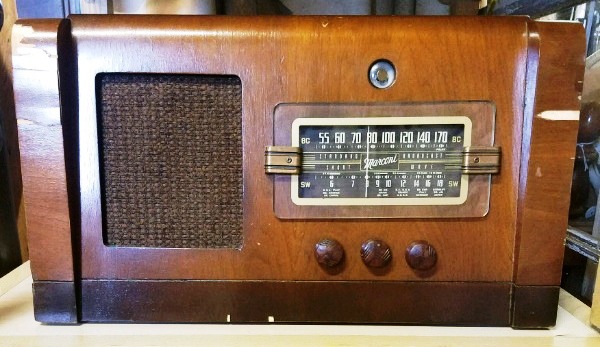

| Model 219 front view. |
 |
| Model 219 dial detail |
 |
| Model 219 rear view |
 |

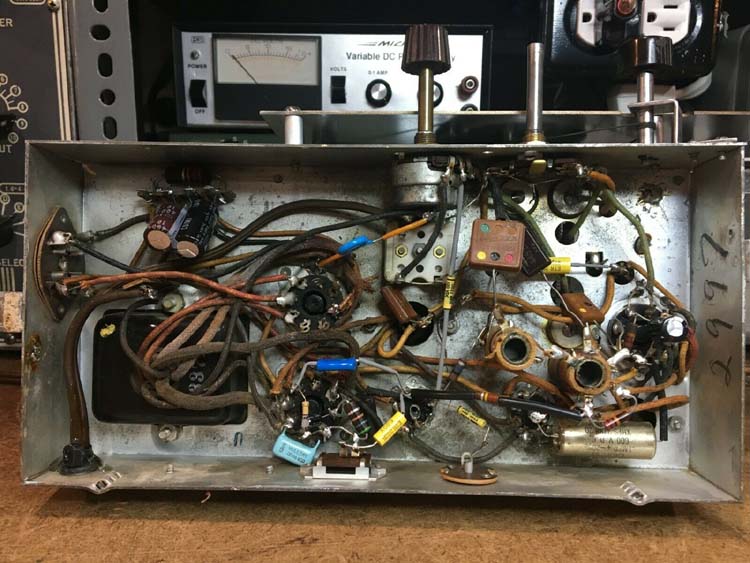

| Model 219 - under the chassis. |
 |
| Model 219 nameplate. S/N 272 |
 |
| Model 219 tube positioning chart. |
| All images in this table via Kijiji. |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 219 RADIO
Type: 6 tube superheterodyne
Year: 1946 ?
Tube lineup: 6SA7 6BA6 6AT6 6K6GT 6U5 5Y4G
Frequency range: 540 to 1720 kHz.; 5.8 to 18.0 MHz.
Audio out: 1.5 watts
Power: 115VAC 60 Hz
comment Uses the same chassis and schematic as model 220.
|
| Model 219 front view. |
|
| Model 219 dial detail |
|
| Model 219 rear view |
|
| Model 219 - under the chassis. |
|
| Model 219 nameplate. S/N 272 |
|
| Model 219 tube positioning chart. |
| All images in this table via Kijiji. |
 |
| Model 219 .This badly deteriorated cabinet has been shown here in order to demonstrate what happens to veneer and cloth if the radio is not stored properly. |
 |
| Nameplate - S/N 2540 |
| All photos in this table via Blogspot |
Contributors or References:1) http://www.radiomuseum.org/r/canadia_ma_219.html
2) http://progress-is-fine.blogspot.ca/2015/10/we-used-to-make-things-in-this-country_29.html
Feb 17/20
