CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 222 RADIO
Type: 5 tube, AC operated superheterodyne receiver with a built-in phonograph. .
Tube lineup: 6SA7 6BA6 6AT6 6K6G 5Y4G
Frequency range: 540 to 1720 KHz; Short wave range 5.6 to 18.2 MHz.
Loudspeaker: 6 inches permanent magnet
Power: 115 VAC 60 Hz 54 watts
Comment: Record changer plays twelve 10 inch or ten 12 inch record. Model 224 uses the same chassis and schematic.
 |
| Model 222 in walnut cabinet |
 |
| Model 222 - Closeup of dial. |
 |
| Model 222 with 79 RPM record sitting on the turntable. |
 |

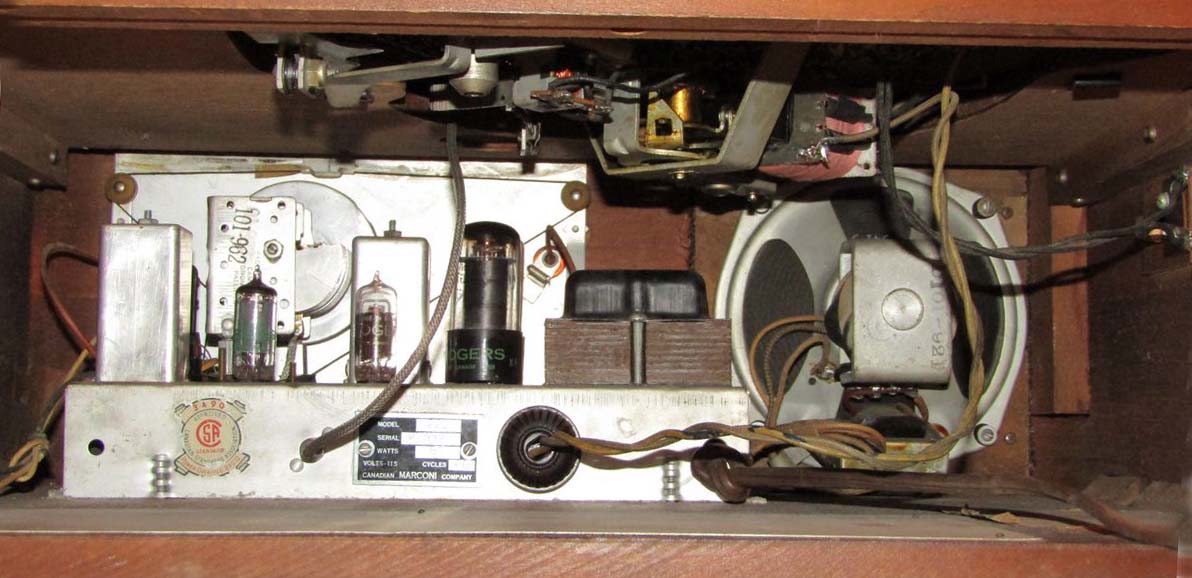

| Model 222 rear view of chassis |
 |
| Model 222 showing a beneath view of the turntable, |
 |
| Model 222 nameplate |
| All Model 222 photos in this table by Kevin Christopher. Download any image to enlarge. |
 |
Instruction manual (Page 1 of 3). Click on image to enlarge . |
 |
Instruction manual (Page 2 of 3). Click on image to enlarge . |
 |
Instruction manual (Page 3 of 3). Click on image to enlarge . |
 |
Model 222 tube layout sheet. Click to enlarge. |
| Instruction manual provided by Kevin Christopher . | |
 |
| Model 222 -in mahogany cabinet. (Photo via Kijiji,ca) |
Contributors or References:1) Kevin Christopher [kevinivc(at)gmail.com]
