CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 233 and 270 RADIOS

---

Type:  Battery operated,  7 tube BC/SW superheterodyne receiver.
Frequency range:

540 to 1720 KHz
5.9 to 10.2 MHz
10.2 to 18.2 MHz

Circa: 1947/48
Tube lineup: 1T4 1R5 1R5 1T4 1S5 1S4 1S4
Audio power:

250 mw with single output pentode.
500 mw with duel output pentodes.

Speaker:  Model 233 - 6 inch permanent magnet
                  Model 270 - 10 inch permanent magnet

Input power:

'A' supply - one 1.5 cell
'B' supply-  two 45 volt batteries in series.

With economizer on, A supply provides  0.25 ma
With  economizer off , A supply provides 0.35 ma

With economizer on, B supply provides 11.5 ma
With  economizer off , B supply provides 17 ma

Dimensions: ?

Comment: The basic difference between the 233 and 270 models is the speaker size.  Models 233 and 270 utilize the same chassis and schematic The two output tubes in the last audio stage are connected in parallel. There is an  'economizer' switch to save battery power. It reduces the output from 0.5 to 0.25 watts by disconnecting one of the two AF output tubes.

Model 233 front view (Image via E bay)

Model 233 rear view. The chassis in the foreground is a home made battery eliminator (Image via E-bay)

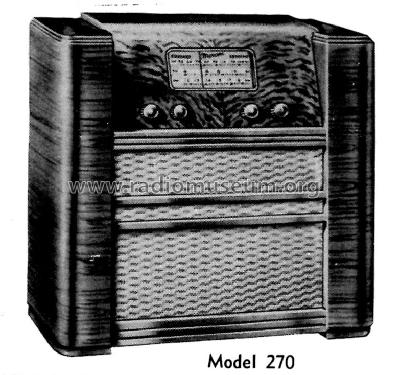

Model 270 image via Radiomuseum.org

Does anyone have actual photos of the Model 233 or 270 receiver? Please contact:  jerry.proc@sympatico.ca
