CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 236, 236A,  RADIOS

---

Type:  5 tube AC/DC superheterodyne
Frequency range: 540 to 1720 KHz
Circa: 1948?
Tube lineup: 12BE6 12BA6 12AT6 50B5 35W4
Audio power: 700 mw
Speaker: 5 inch permanent magnet
Input power:  117 VAC 25/60 Hz  0.25 amp

Dimensions: For model 264- 11.8 x 7.1 x 5.9 inches
Comment: Cabinet color is Walnut or Mahogany. Models 236/236A  and 264 use the same chassis and schematic.

236 image via E-bay.Does anyone have actual 236 photo? If so, contact: jerry.proc@sympatico.ca

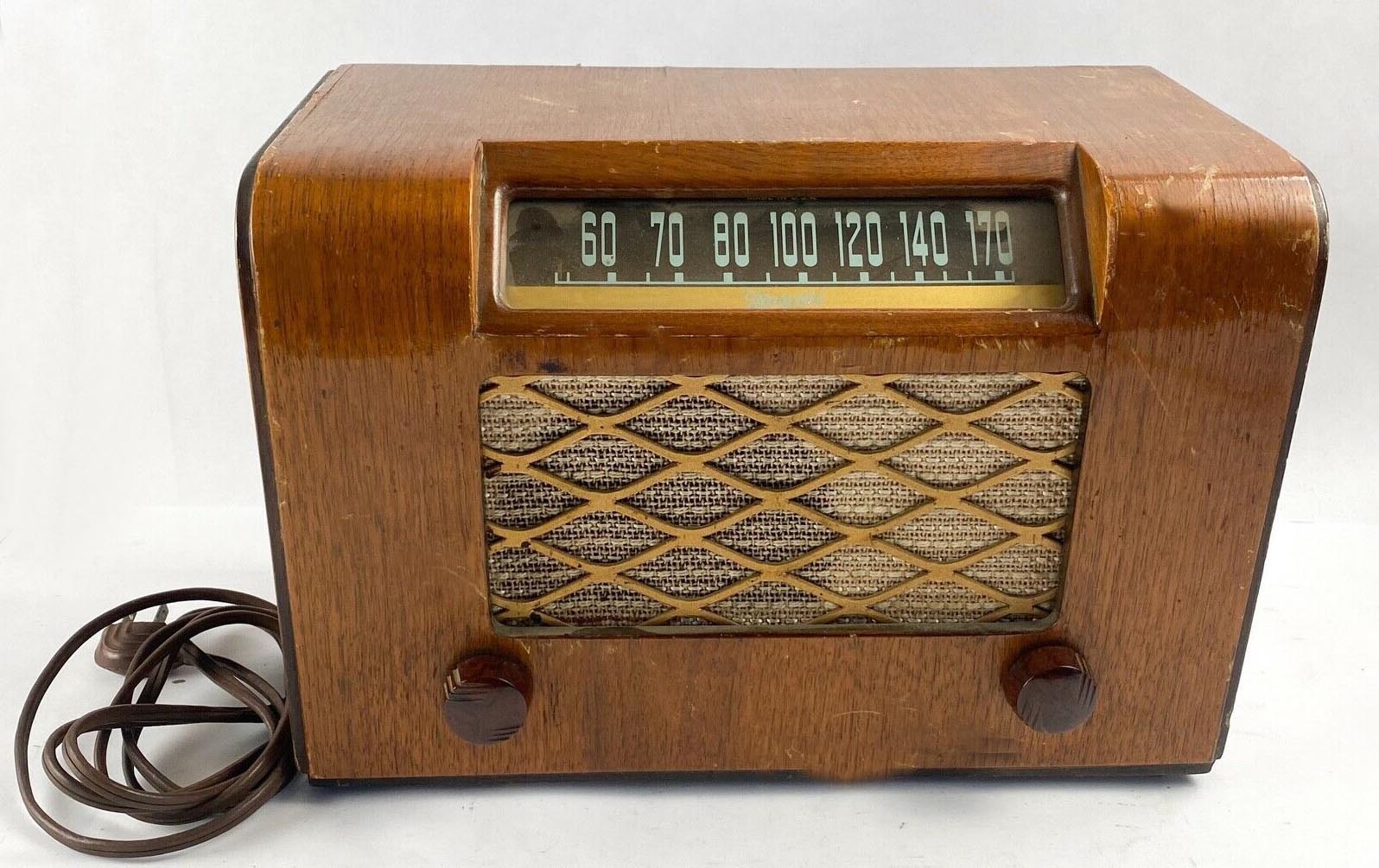

Model 236A front view. Note the diamond pattern grille  in the 'A' model.

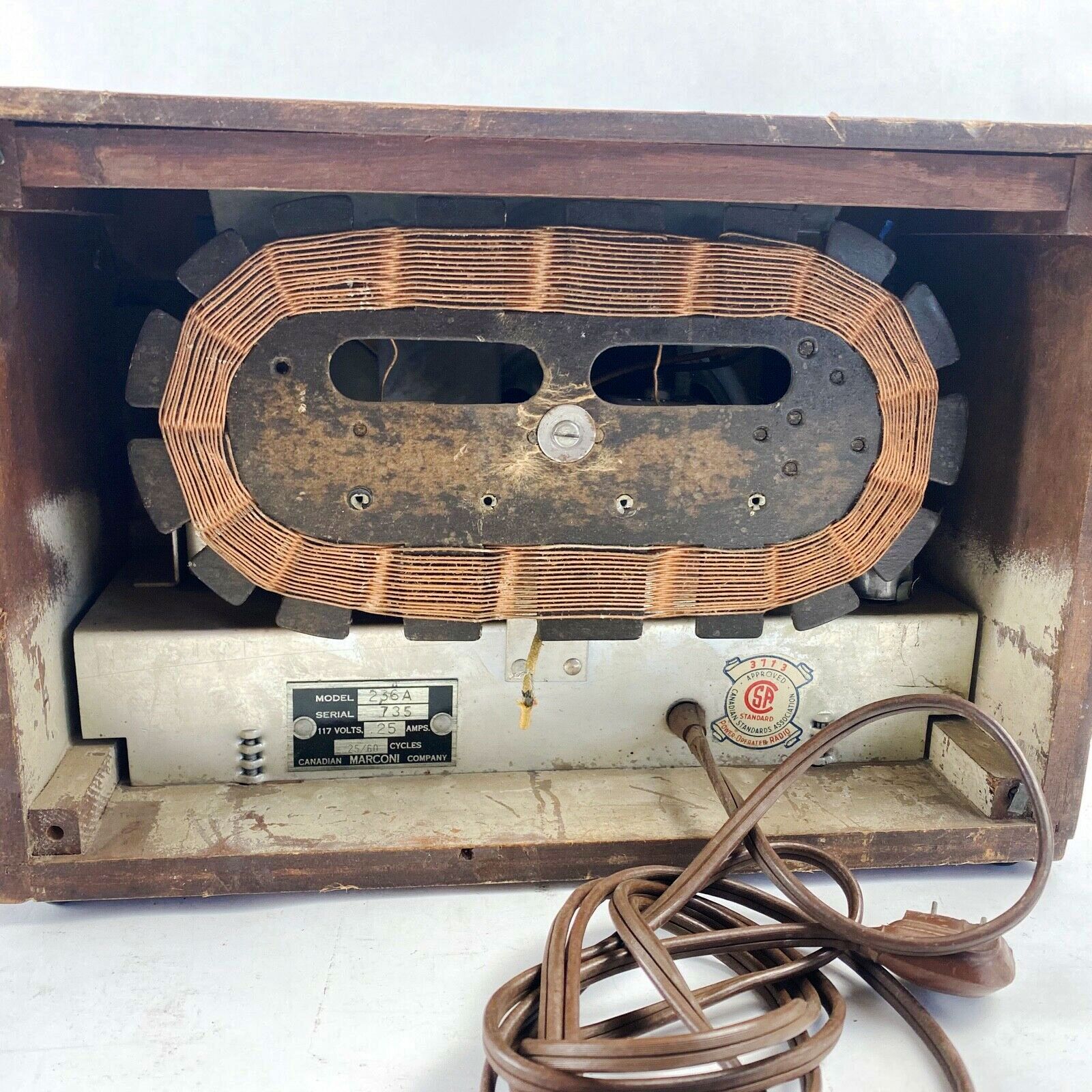

Model 236A rear view

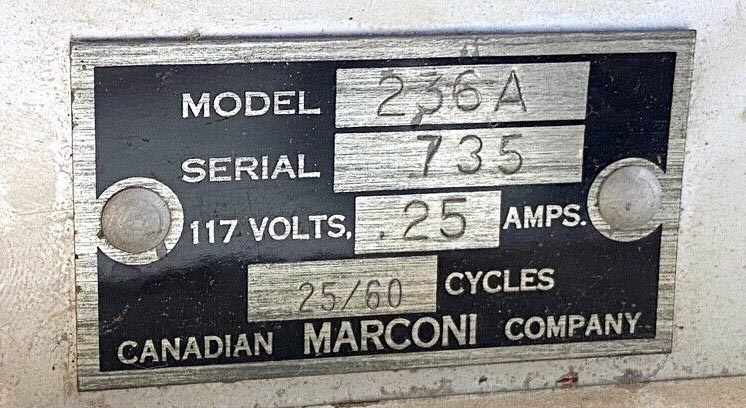

Model 236A nameplate

All model 236A photos in this table via E-bay.

Contributors or References:

1) Canadian Marconi Service Manual - Volume 2
2) http://www.radiomuseum.org/r/canadia_ma_236a.html
3) http://www.radiomuseum.org/r/canadia_ma_264_1703.html
