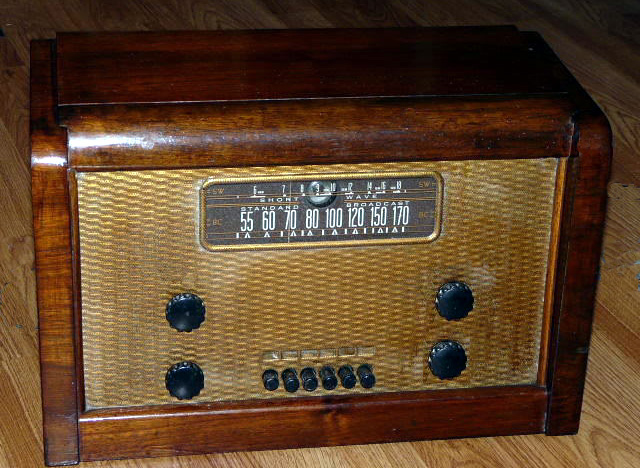

| Model 238 front view. |
 |

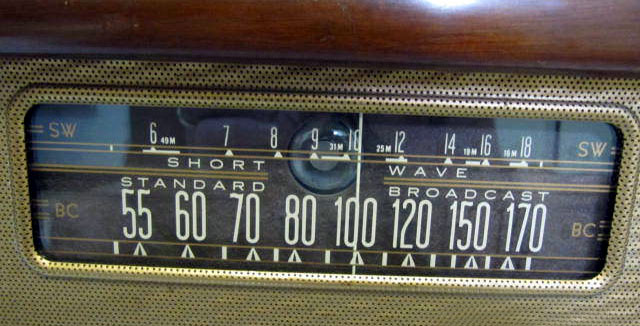

| MOdel 238 closeup of dial |
 |

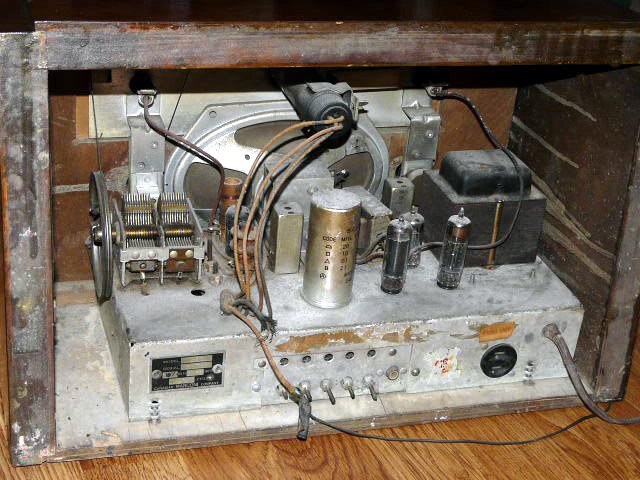

| Model 238 rear view. |
 |

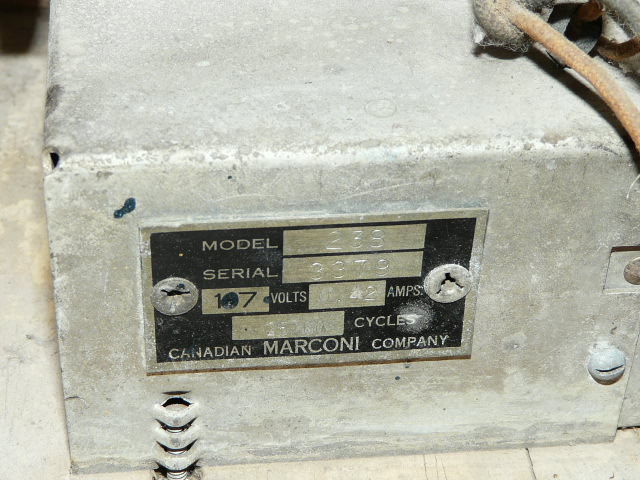

| Model 238 nameplate. |
| All photos in this table via E-bay. |
CANADIAN MARCONI HOME ENTERTAINMENT - MODELS 238 and 243 Mdel 238 (Mantel Version)
Frequency Range: BC band 540 to 1720 kHz.. SW Band Tuning Range: 6.0 to 18.0 MHz
Tube lineup: 6BE6 6BA6 6AT6 6AQ5 6U5 6X4
Vintage: 1950 ?
Audio Power : 2 watts undistorted
Speaker size: 5 x 7
Cabinet Dimensions: 18 In W x 11 in H x 9 in D
Input Power: 117 VAC 60 Hz 0.4 amps
Feature: Pushbutton radio
|
| Model 238 front view. |
|
| MOdel 238 closeup of dial |
|
| Model 238 rear view. |
|
| Model 238 nameplate. |
| All photos in this table via E-bay. |
 |

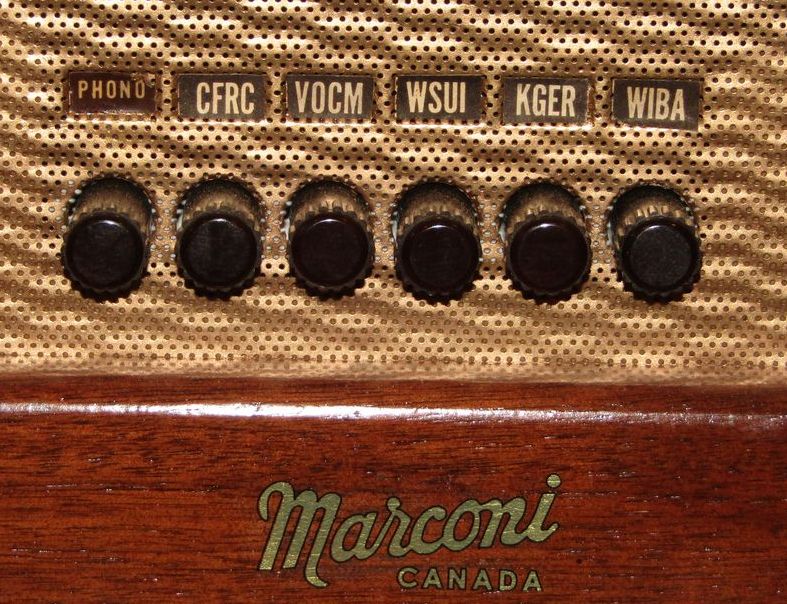

| Model 238 cliseup of pushbuttons. The station call signs have been staged to illustrate what can be done on a computer. (Photo by Kevin Chris decals opher) |
Model 243 (Console Version)The console model 243 uses the same chassis and schematic as the 238 but also has built-in, automatic record player.
Speaker Size : 12 inch
Cabinet Material : Wood
Cabinet Dimensions: 23 in Wide x 32 in High x 16 in deep
Input Power: 117 VAC 60 Hz 0.6 amps
 |

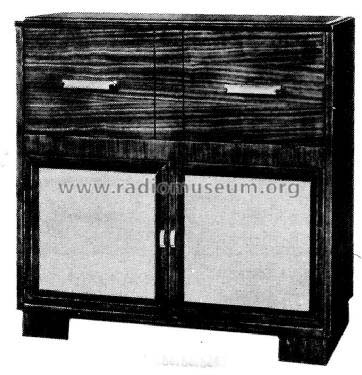

| Model 243 image via Radiomuseum.org |
| Looking for am actual 243 photo. Contact jerry.ptoc@sympatico.ca |
Contributors or References:1) http://www.radiomuseum.org/r/canadia_ma_238.html
2) Marconi Service Manual Vol 2
Aug 31/19
