CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 254FM RADIO

---

Type:  9 tube, AF/FM superheterodyne receiver ,
Frequency range:

AM  Broadcast 5540 to 1720 kHz.
FM  Broadcast 88 to 108 MHz

Tube lineup:  6BA6 6BE6 6BA6 6AU6 6AU6 6H6 6AT6 6AQ5 5Y4G
Audio power: 2.75 watts
Speaker:  ?
Input power: 117 VAC 60 Hz

Comment: Shares the same chassis and schematic as the model 255FM but without a record changer.

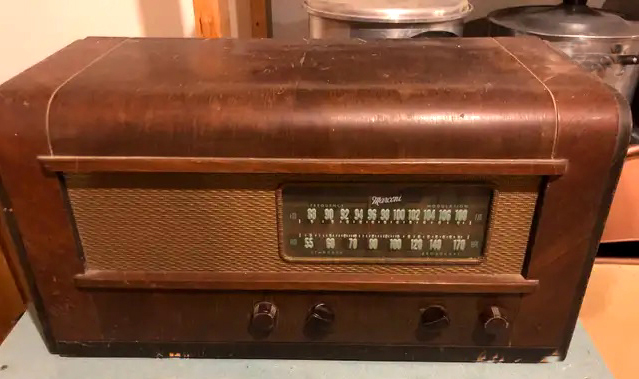

254FM  front view

254FM rear view.

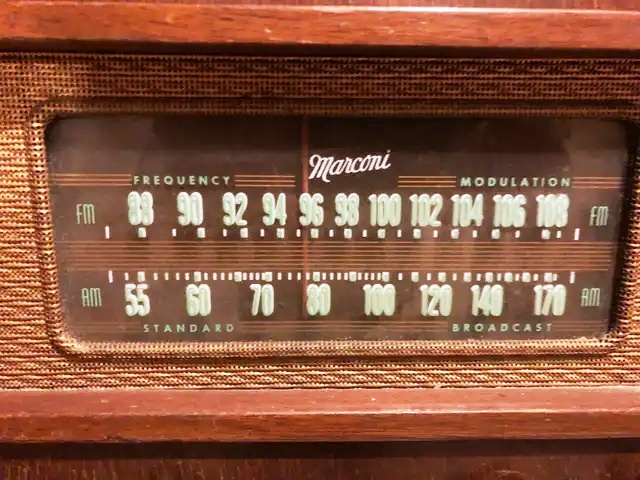

254FM - Closeup of dial

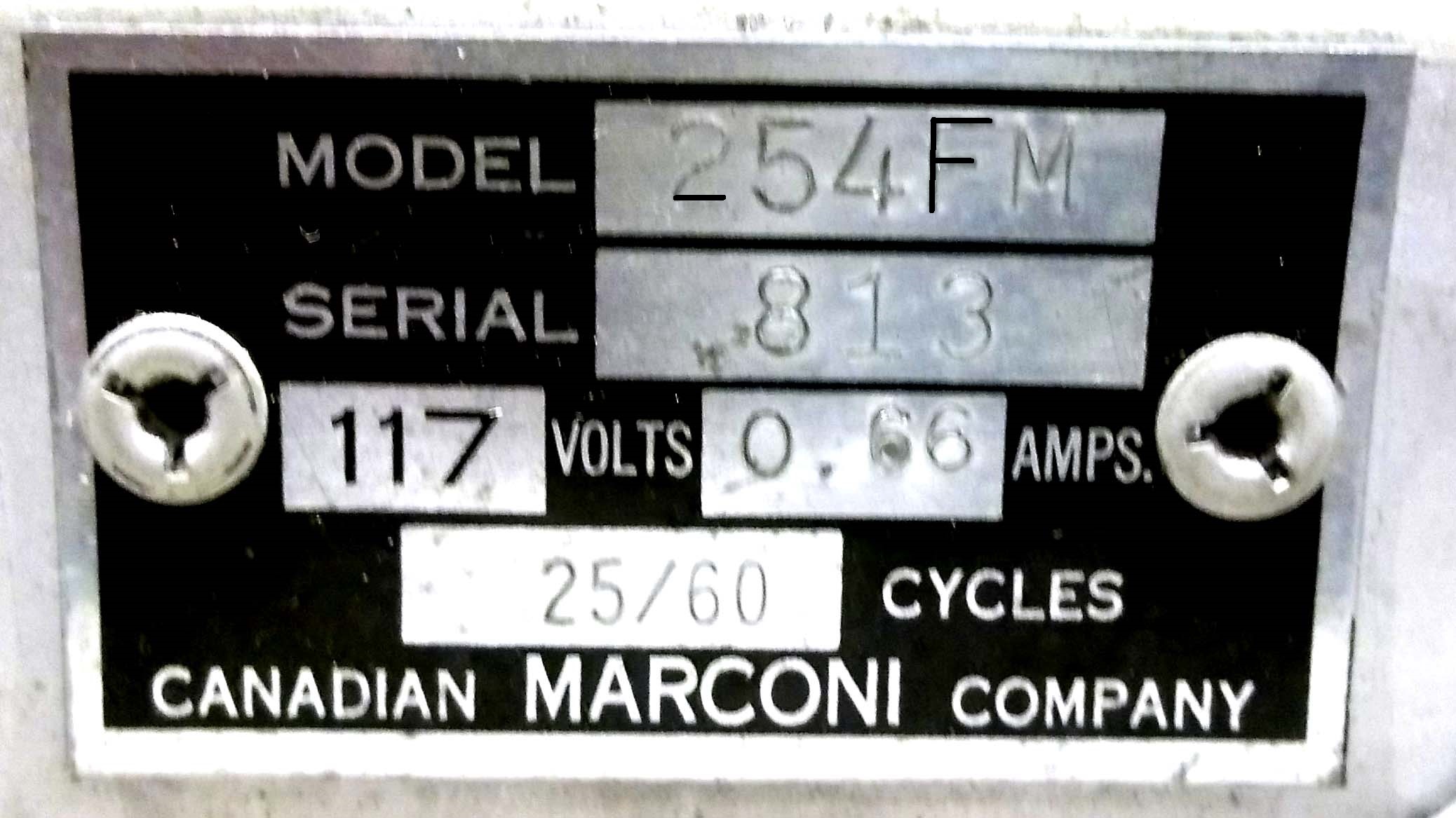

254FM nameplate.


Contributors or References:

1) Lewis Bodkin <05bodkin555(at)gmail.com>

Jun 29/23
