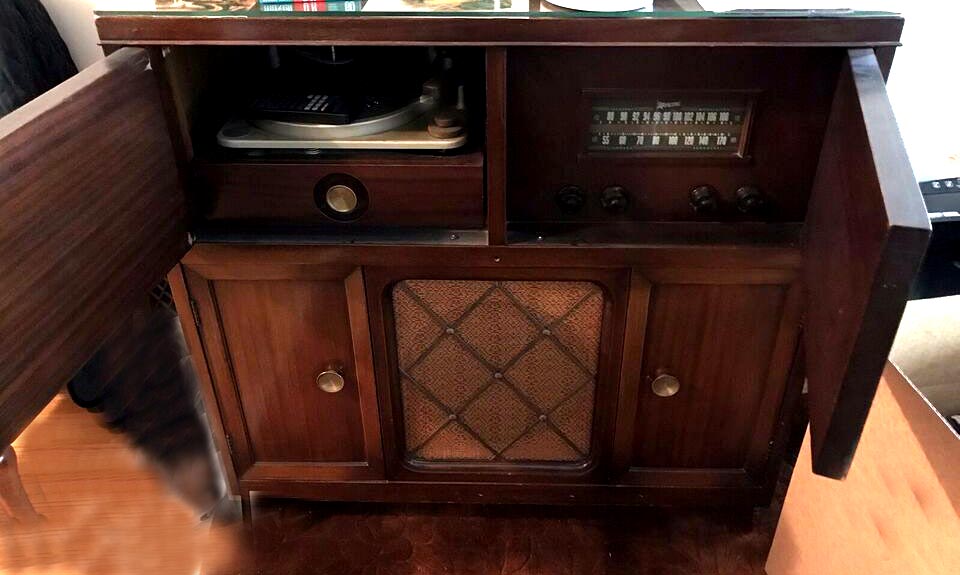

| Model 255FM front view. Click on image to enlarge.. |
 |

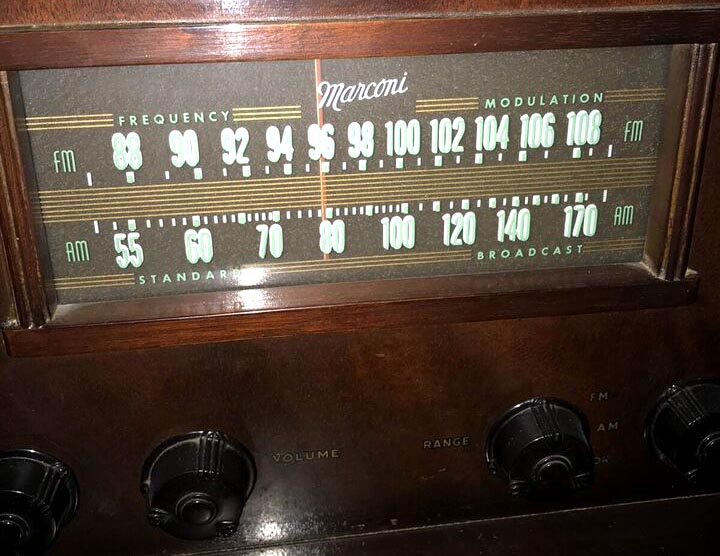

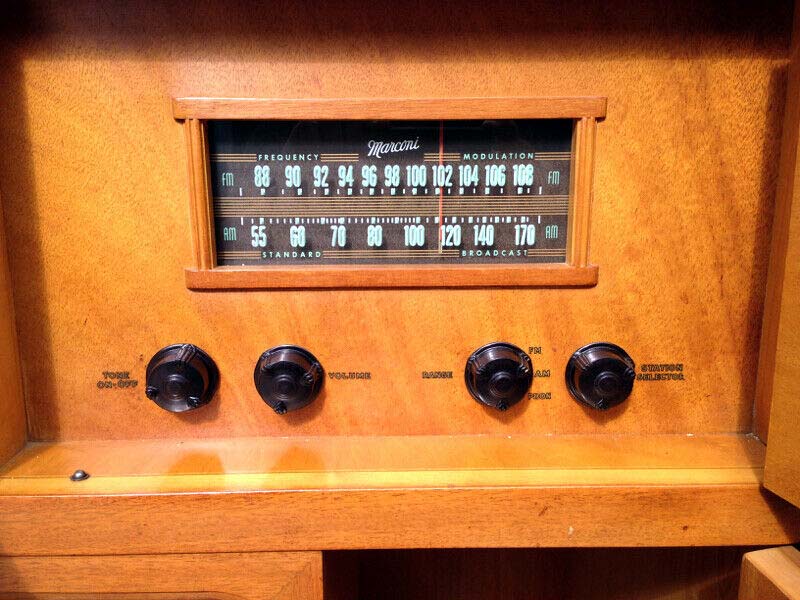

| Model 255FM closeup of dial |
 |

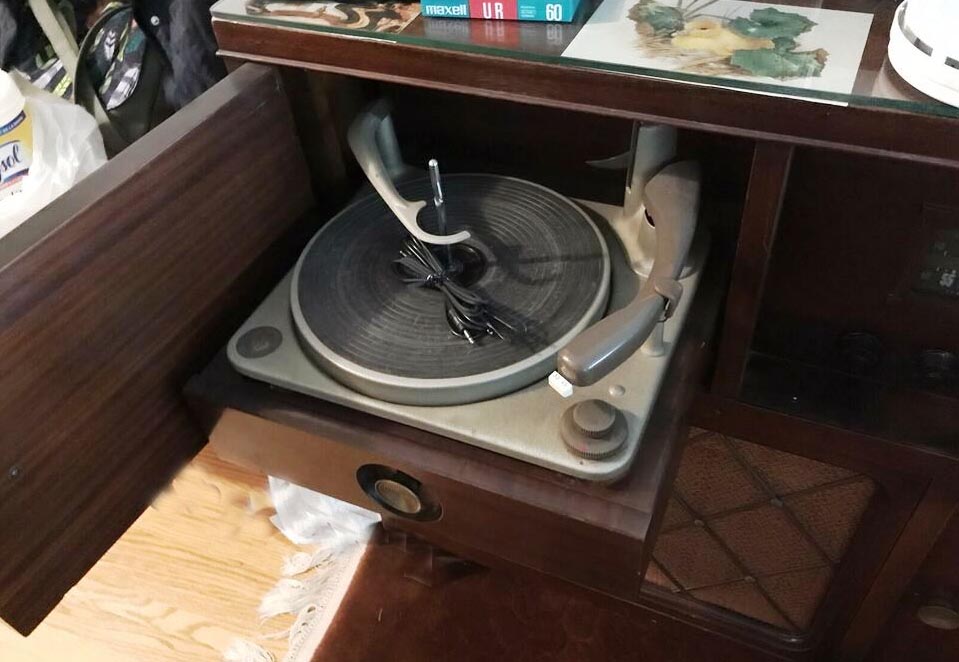

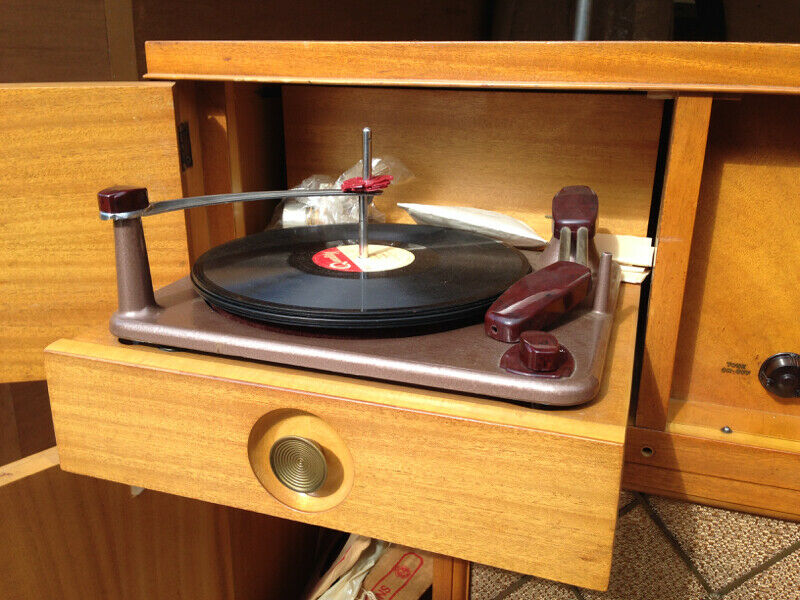

| Model 255FM closeup or record player. |
 |

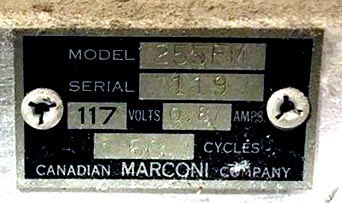

| Model 255FM nameplate. |
| All model 255FM photos via Kijiji.ca |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 255FM Type: 9 tube, AM/FM superheterodyne receiver with turntable,
Frequency range:AM Broadcast 5540 to 1720 kHz.
FM Broadcast 88 to 108 MHzTube lineup: 6BA6 6BE6 6BA6 6AU6 6AU6 6H6 6AT6 6AQ5 5Y4G
Audio power: 2.75 watts
Speaker: 12 inch
Input power: 117 VAC 60 Hz 0.87 ampsComment:
Early models used single speed record changer while later models used a three speed record changer. Marconi Table Model 254FM uses the same chassis and schematic as the 255FM but does not have a built-in phonograph.
|
| Model 255FM front view. Click on image to enlarge.. |
|
| Model 255FM closeup of dial |
|
| Model 255FM closeup or record player. |
|
| Model 255FM nameplate. |
| All model 255FM photos via Kijiji.ca |
MORE MODEL 255FM PHOTOS
 |
 |
 |

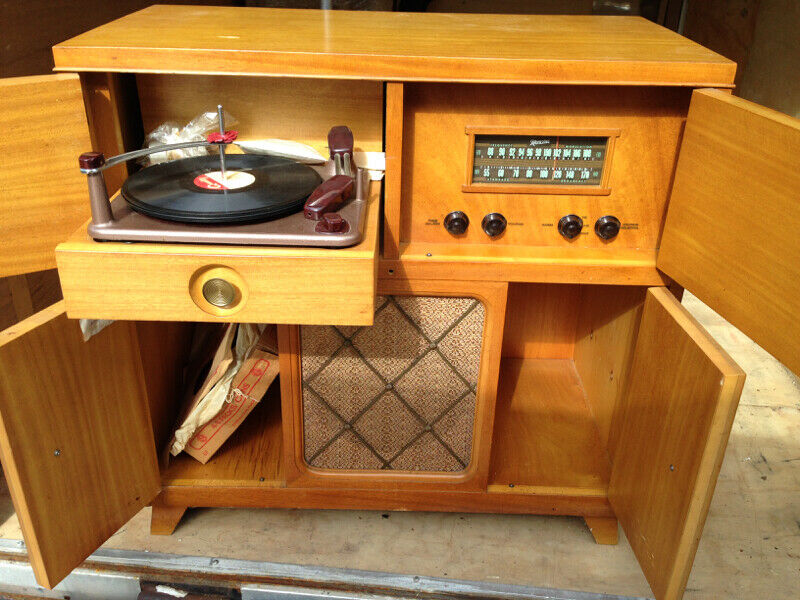

| This is how the 255FM looks in a blomfe cabinet (Via Kijiji,ca). |
Contributors or References:1) https://www.radiomuseum.org/r/canadia_ma_255fm.html
Oct 20/20
