CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 264 RADIO
Type: 5 tube AC/DC superheterodyne
Frequency range: 540 to 1720 KHz
Circa: 1948?
Tube lineup: 12BE6 12BA6 12AT6 50B5 35W4
Audio power: 700 mw
Speaker: 5 inch permanent magnet
Input power: 117 VAC 25/60 Hz 0.25 ampDimensions: For model 264- 11.8 x 7.1 x 5.9 inches
Comment: Cabinet color is Walnut or Mahogany. Models 236/236A and 264 use the same chassis and schematic.
MODEL 264 PHOTOS
|

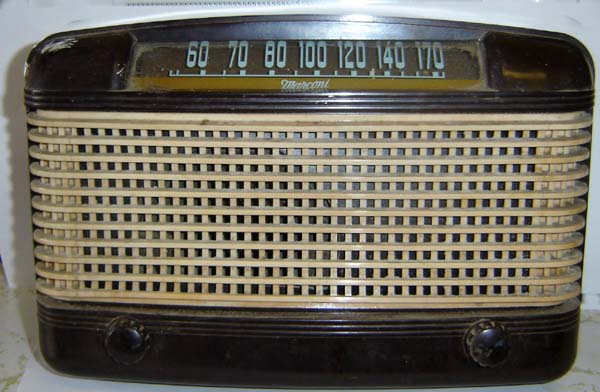

| Model 264 front view. |
|

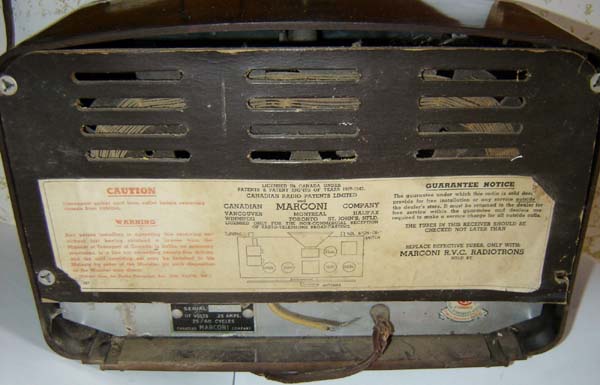

| Model 264 rear view |
|

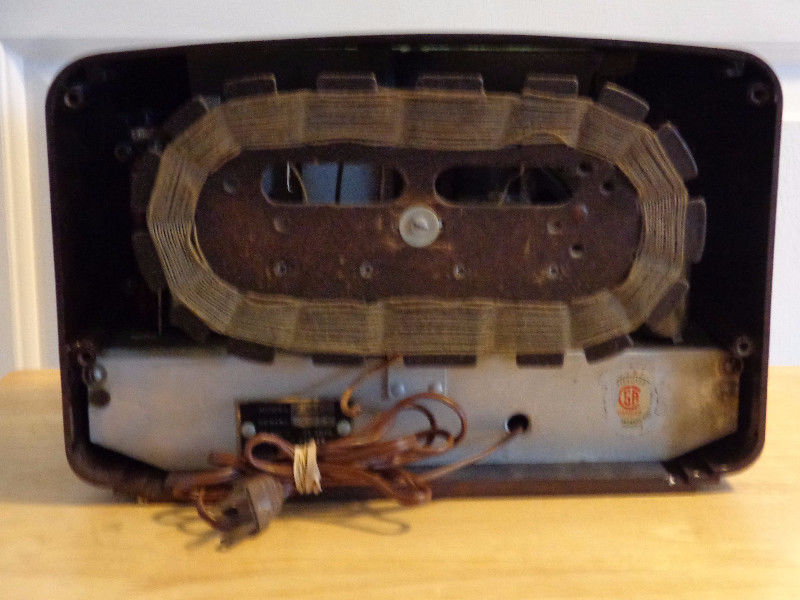

| Model 264 loop antenna detail. |
|

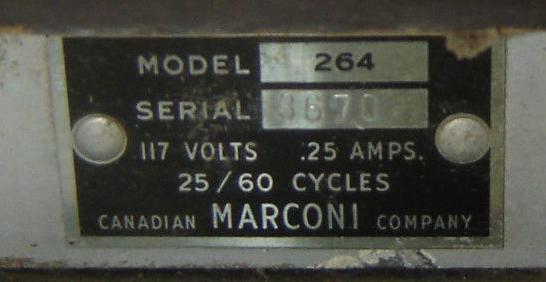

| Model 264 nameplate |
| Model 264 images via Kijji Canada |
Contributors or References:1) Canadian Marconi Service Manual - Volume 2
2) http://www.radiomuseum.org/r/canadia_ma_236a.html
3) http://www.radiomuseum.org/r/canadia_ma_264_1703.html
Nov 15/17
