CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 276FM, 277FM and 277FM-LP

---

Type: 8 tube, AM/FM superheterodyne receiver
Frequency range:

AM  540 to 1720 KHz
FM     88 to  108 MHz
Circa: ?
Tube lineup: 12AT7, 6BE6, 6BA6, 6AU6, 6H6, 6AT6,  6AQ5, 5Y3GT
Audio power: 2 watts undistorted
Speaker:  For model 276FM - Elliptical, PM, 4" x 6" speaker.
                  For model 277FM and 277FM-LP - 12 inch
Input power:

Model 276FM   117 VAC 60 Hz  0.56 amps
                          117 VAC 25 Hz 0.61 amps

Models 277FM and FM-LP  117 VAC 60 Hz  0.88 amps
                                               117 VAC 25 Hz  0.93 amps
Cabinet and  dimensions:

Model 276 - Bakelite, mantel format
                     8.25 D x14.25 W x 9 H (inches)

Model 277 - Wood, console format
                     17 D x 34 W x 34 H (inches)

Comment: Models 277FM and 277FM-LP are identical to the 276FM except for cabinet , speaker and the additional of a magic eye tuning indicator. Also,  a record changer was added to the 277 series. MOdel 276 only has a sound input jack for phonograph or TV

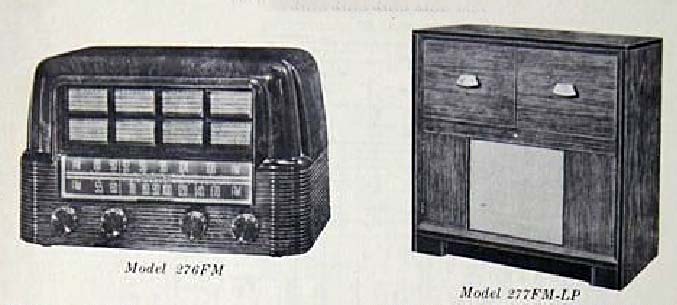

<<<<< 276FM     Photo via E-bay    >>>>>> 277FM-LP


Contributors or References:

1) Canadian Marconi Service Manual - Volume 2
