CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 302 and 303 RADIO

Type: 5 tube, battery operated  superheterodyne
Frequency range: 540 to 1730 KHz and 5.6 to 18.2 MHz
Circa: ?
Tube lineup: 2 x 1R5, 1U4, 1U5, 3V4
Audio power: 120 mw
Speaker: 5 inch for model 302
                10 inch for model 303
Input power:  'A' supply - 1.5 volt cell @300 ma
                       'B' supply - 2 x 45 volt batteries in series @ 13.5 ma

Comment: The difference between 302 and 303 models is the size of the speaker and cabinet style. Otherwise, both models share the same chassis and schematic.

It also appears that Models 302 and 303 are identical in appearance and operation to models 332 and 334 respectively.  The listing in the service manual does not explain the difference(s) between the model pairs. Model 302 also shares the same cabinet as model 291.

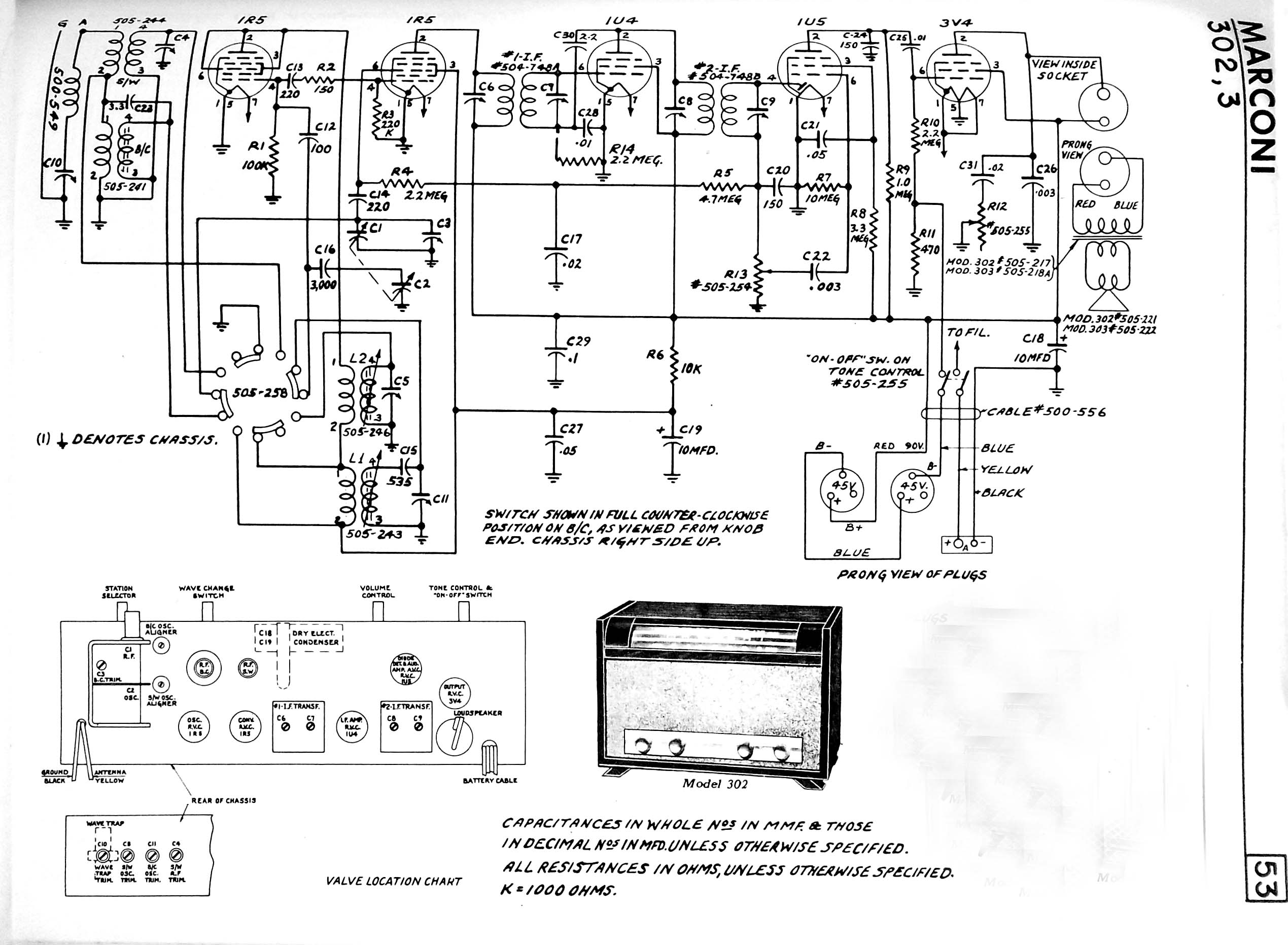

302/303 schematic is here.


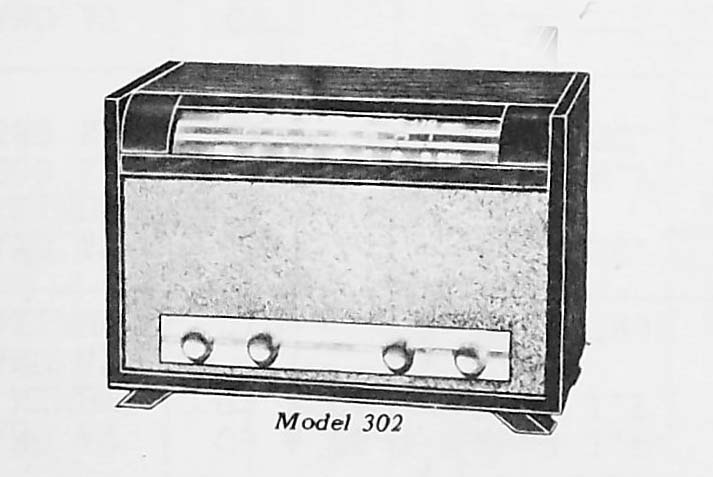

302 Image courtesy RCC Publications


/303_01.jpg

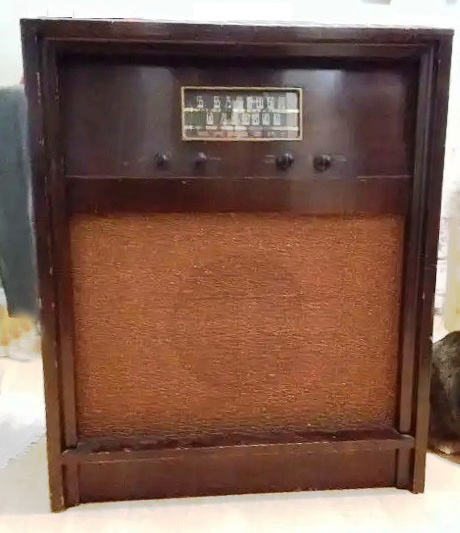

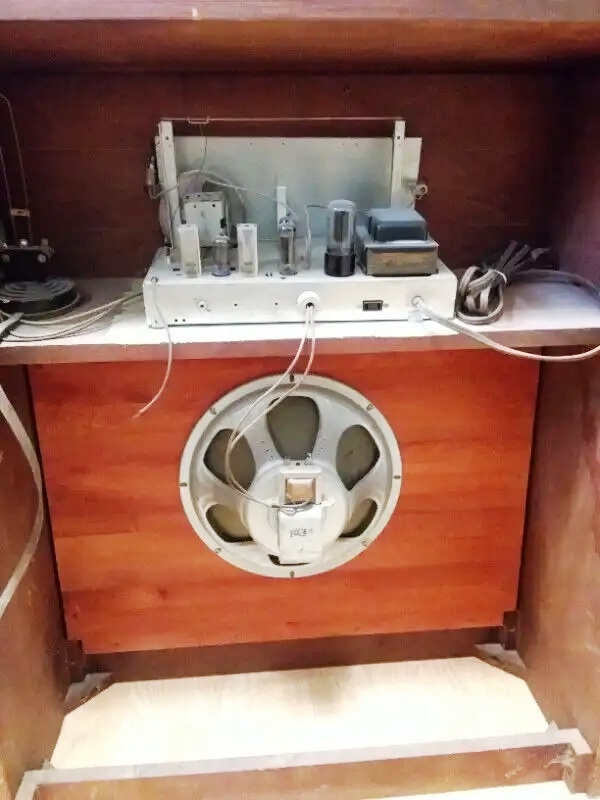

Model 303

Contributors or References:

1) Canadian Marconi Service Manual - Volume 2
