CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 305A RADIO

---

Type: 5 tube AC/DC superheterodyne receiver
Frequency range:  540 to 1650 KHz
Tube lineup:  12BE6, 12BA6, 12AV6, 50L6, 35W4
Audio power:  0.7 watts
Speaker: 5 in
Input power: 115 VAC , 25 or 60 Hz  ; 115 VDC    0.24 amps for all voltage ratings.
Comments:

1) Listed in Eaton's catalogue as item # 0960-7019.  Price $27.50
2) Available in the following cabinet colours: Walnut, Peach, Green, Blue, Rose, Ivory and White.

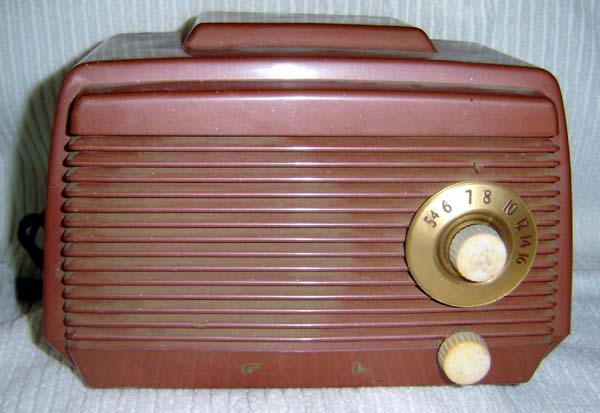

Front view . Frequency range 540 to 1650 KHz

Rear view, Power 117 VAC 25/60 Hz 0.24 amp

Photos via E-bay

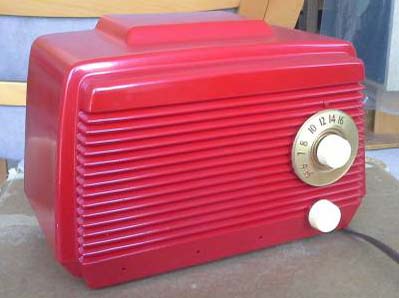

The 305 radio also came in this bright red case. It's not clear if the model 305 was available in more than two colours. (Photo courtesy Craig's List)

Model 305 front . This is the Blue cabinet version.

Model 305 top view of chassis, speaker and loop antenna.

Model 305 back cover with a service tag from a Philco authorized dealer.

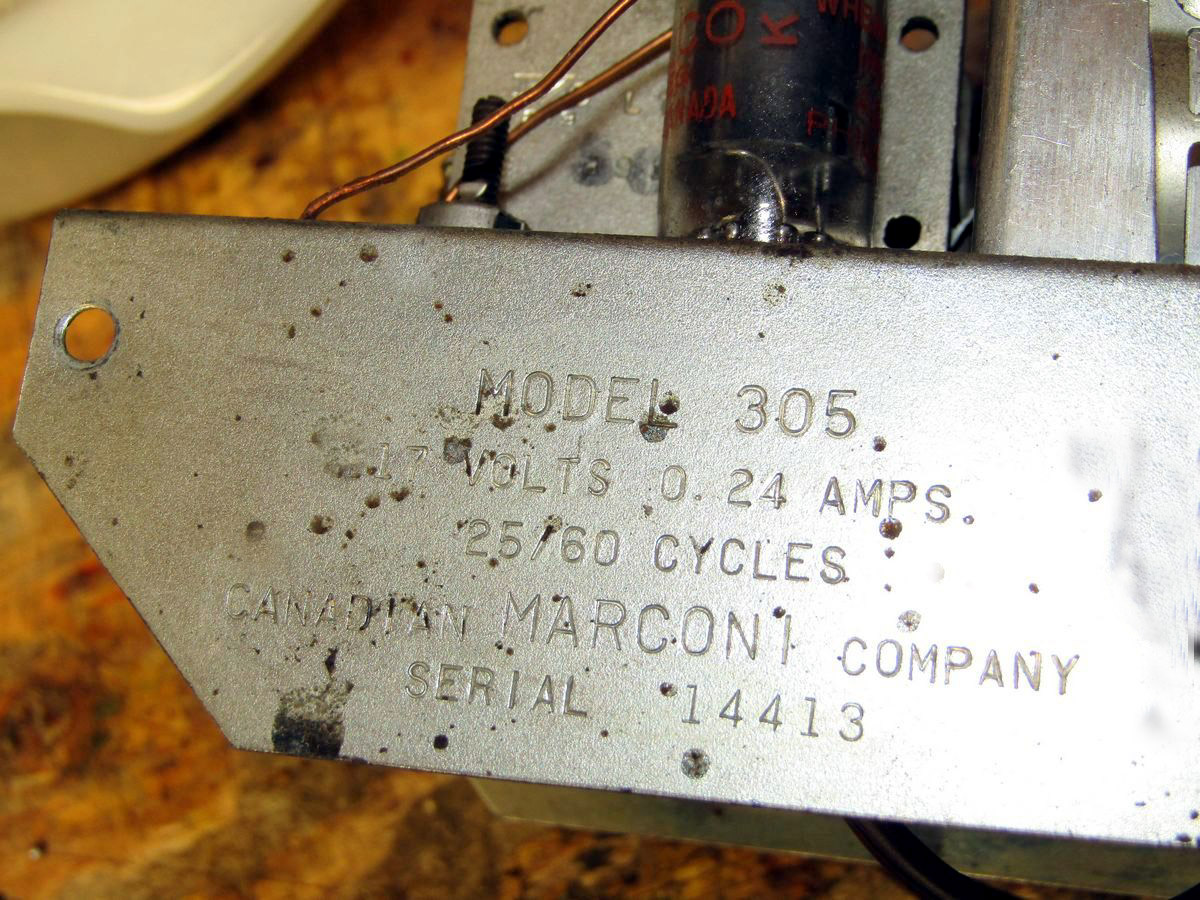

Model 305 nameplate data stamping.

All Model 305 photos in this table by Kevin Christopher. Download images too enlarge.



The model 305 as it appeared in Eaton`s Fall and  Winter 1951-1952 catalogue . It was also sold in the Fall and Winter 1952-1953 and 1953-1954 catalogues.   Image provided by Lewis Bodlkin)

Contributors or References:

1) Lewis Bodkin [05bodkin555@gmail.com]
2) Kevin Christopher  <kevinivc(At)gmail.com>

Sept 17/20
