CANADIAN MARCONI
HOME ENTERTAINMENT - MODELS 332 and 334
Type: 5 tube, battery
operated superheterodyne
Frequency range:
540 to 1730 KHz and 5.6 to 18.2 MHz
Circa: ?
Tube lineup: 2 x
1R5, 1U4, 1U5, 3V4
Audio power: 120
mw
Speaker: 5 inch
for model 302
10 inch for model 303
Input power:
'A' supply - 1.5 volt cell @300 ma
'B' supply - 2 x 45 volt batteries in series @ 13.5 ma
Dimensions: ?

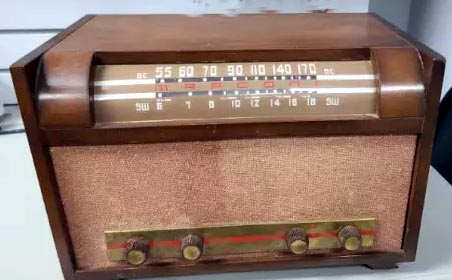

Comment: The difference
between models 332 and 334 is the size of the speaker and cabinet style.

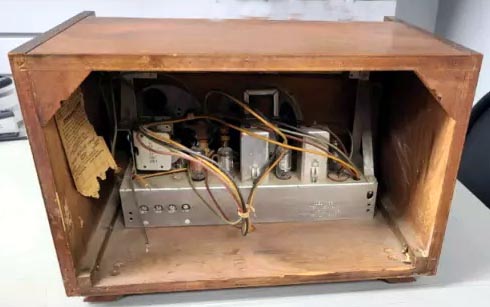

Otherwise, both models share the same chassis and schematic. It also appears
that Models 332 and 334 are identical in appearance to models 302 and 303
respectively. The listing in the service manual does not explain
the difference(s) between the model pairs.
