CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 349 RADIO

---

Type: 5 tube superheterodyne receiver
Frequency range: Standard broadcast band
Tube lineup:  12BE6 12BA6 12AV6 50B5 35W4
Audio power: 0.7 watts
Speaker:  4 inch PM
Input power: 117 VAC 25/60 Hz 0.23 amps

Comment: Plastic cabinets available in  decorator colours: White, Ebony, Cherry, Yellow, Terra-Cotta and , Walnut


Model 349 front view. The volume control is at the side of the radio,. .

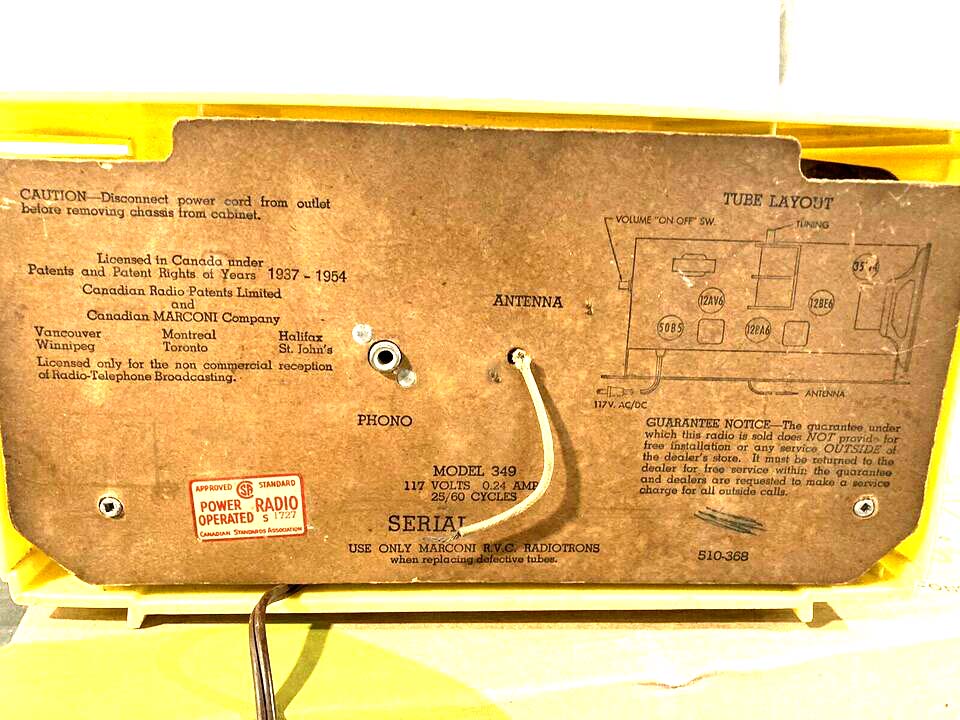

Model 349 rear view

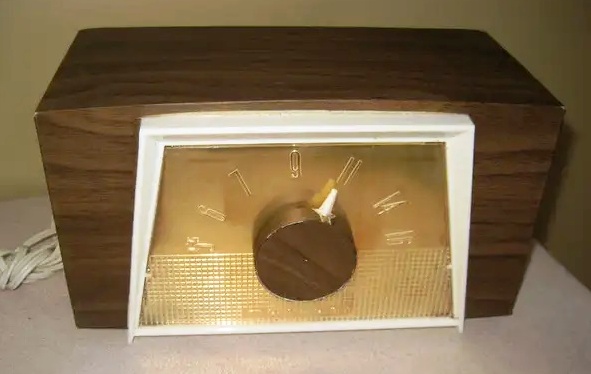

In this example, someone has applied a self adhesive, wood grain plastic tsheet  to the cabinet thus giving it a deep finish.  Marconi did not build it this way.

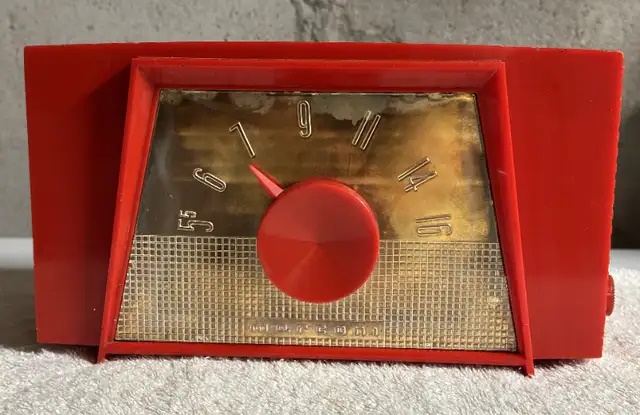

Model 349 in red finish.

All photos  on this table via Kijiji.ca


Contributors or References:

Nov 3/23
