CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 362

---

Type: 4 tube, portable superheterodyne receiver

Frequency range: 535 to 1620 KHz

Circa: ?
Tube lineup: 1R5, 1U4, 1U5, 3V4
Audio power:  80 mw
Speaker: 4 inch dynamic

Input power:

115 VAC 25/60 Hz .25 amp (per schematic)
117 VAC 25/60 Hz .15 amp  (per chassis stamping)
117 VDC  .25 amps

For Battery Operation
Filament power: 4.5 volts  at 85 ma
B+ power: 90 volts at 12 ma

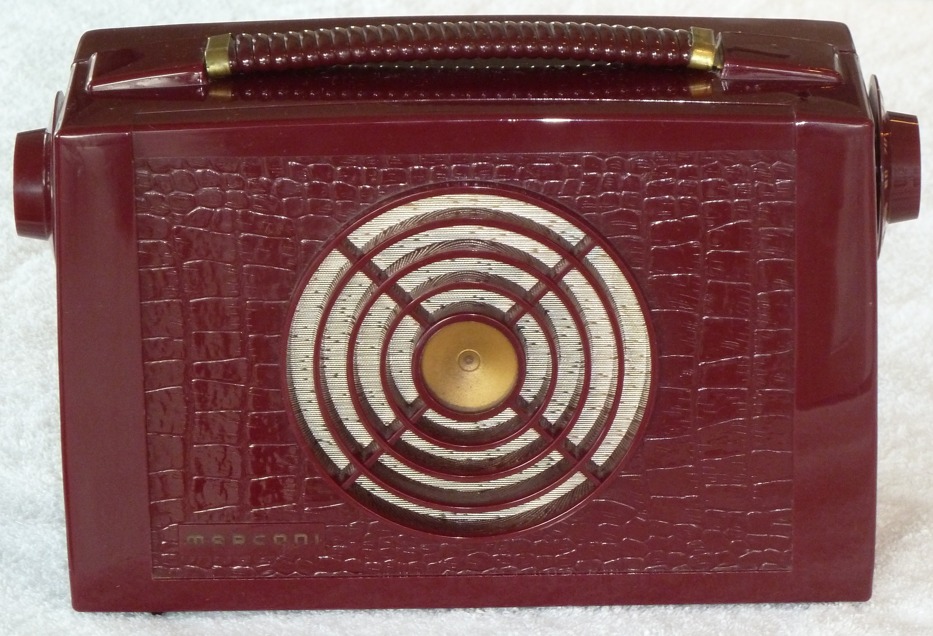

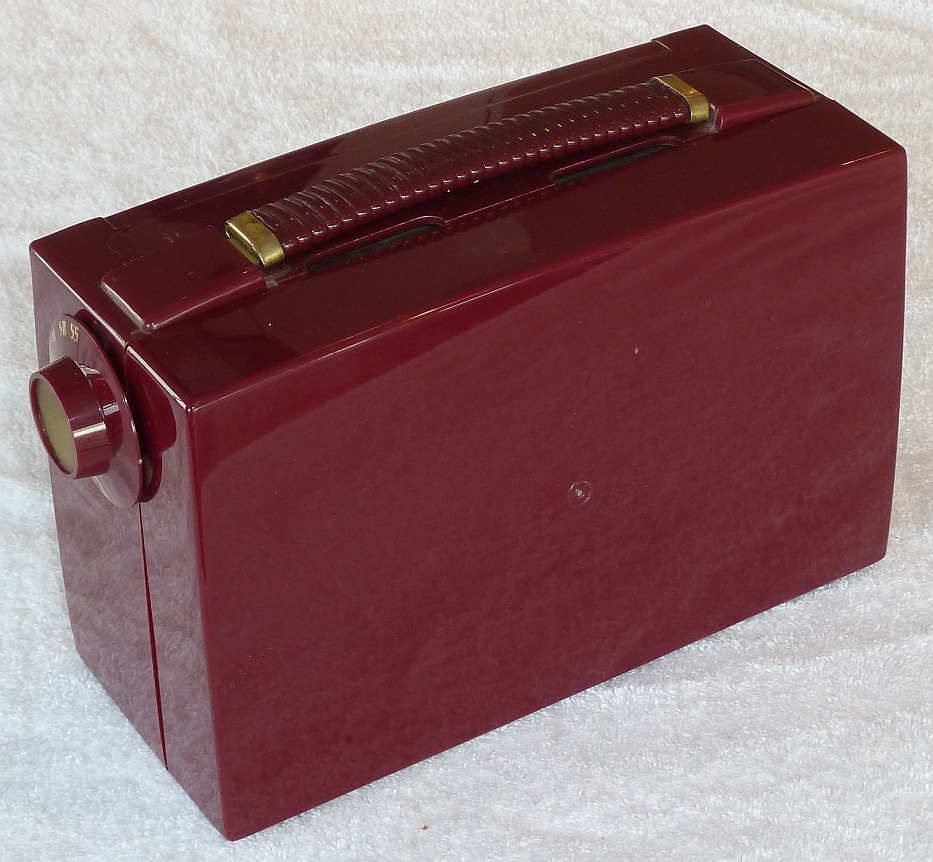

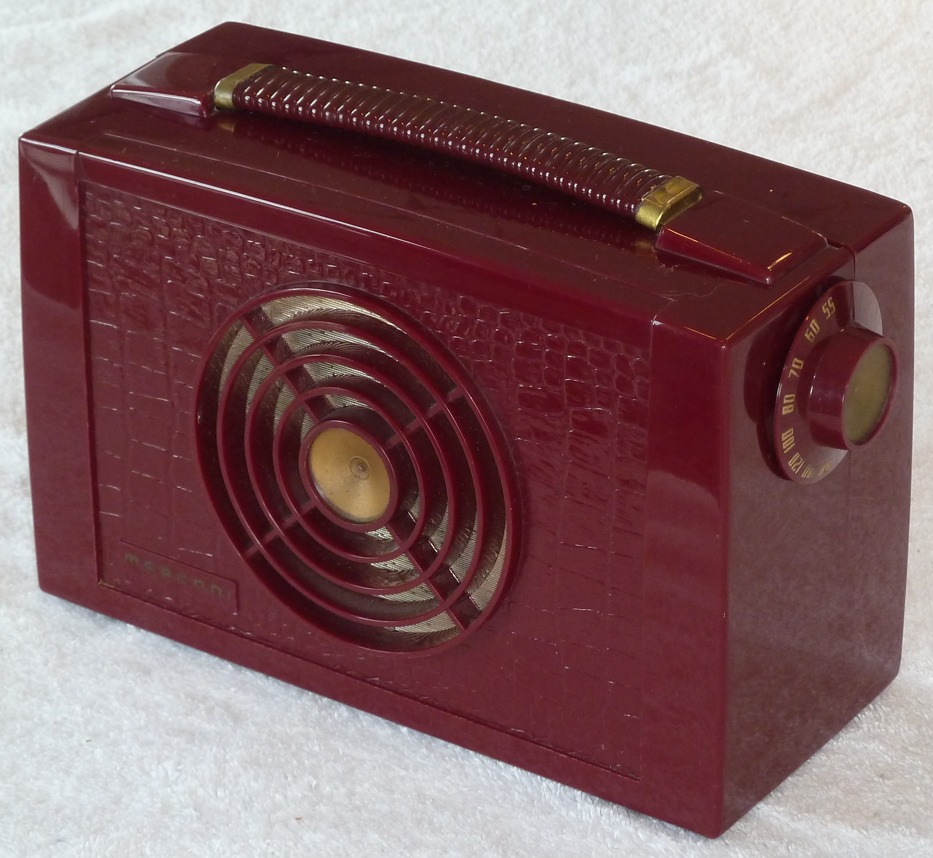

EXTERIOR VIEWS OF THE MODEL 362 RECEIVER. Unless noted otherwise, all photos in this web document were taken by Gary Albach.

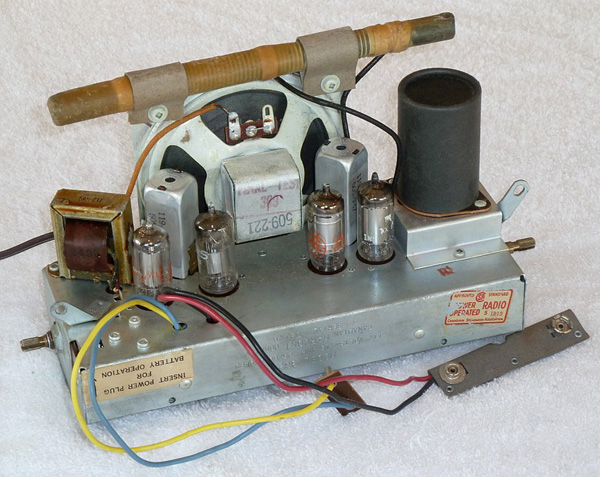

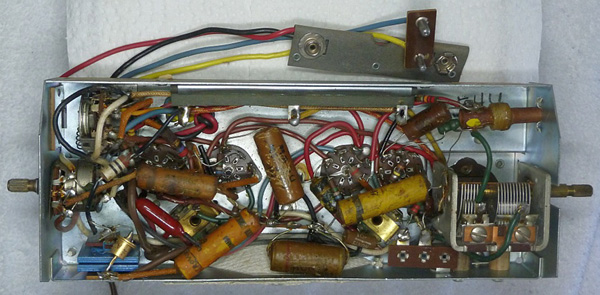

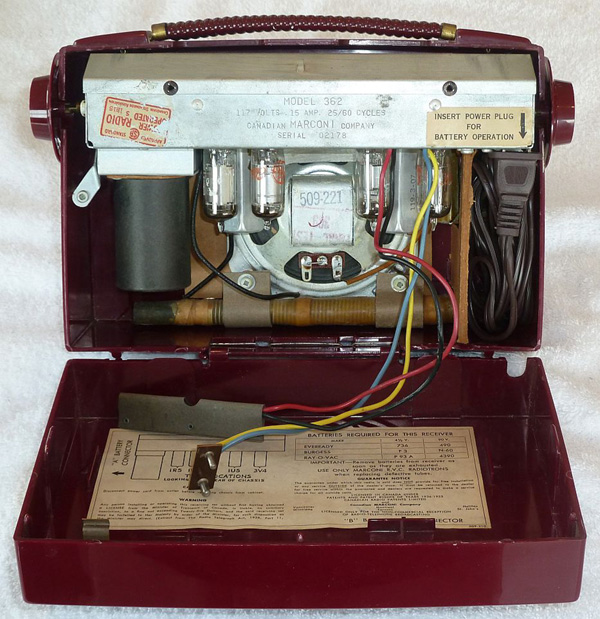

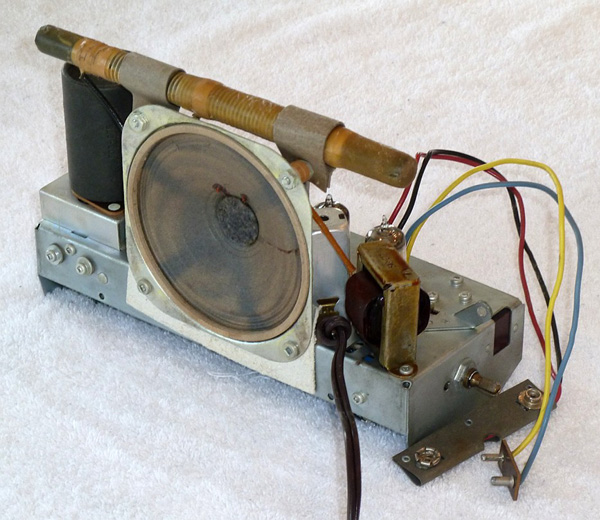

INTERIOR VIEWS OF THE MODEL 362 RECEIVER.. The chassis bottom  reflects the original capacitors before the set was recapped.

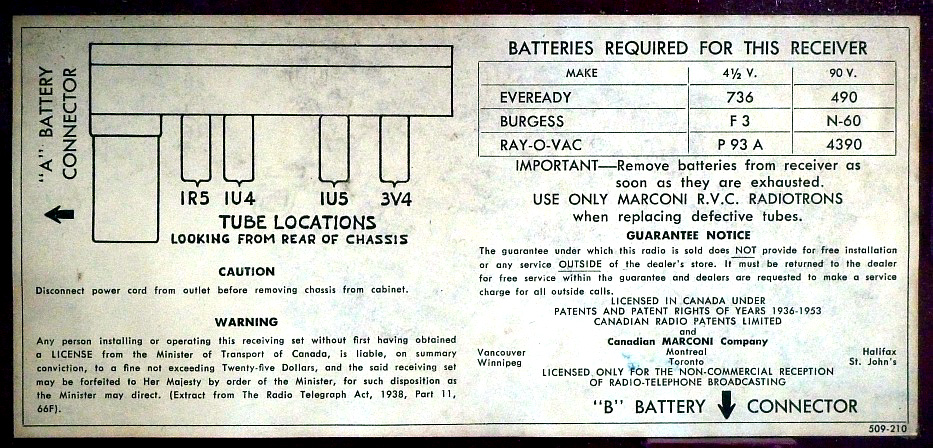

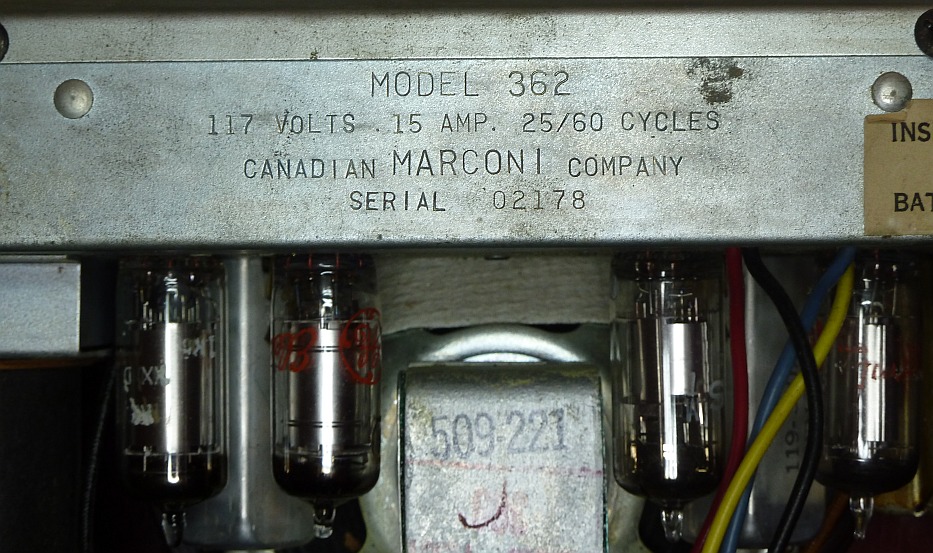

MODEL 362 IDENTIFICATION INFORMATION.

Full size schematics can be had by simply downloading the two images .

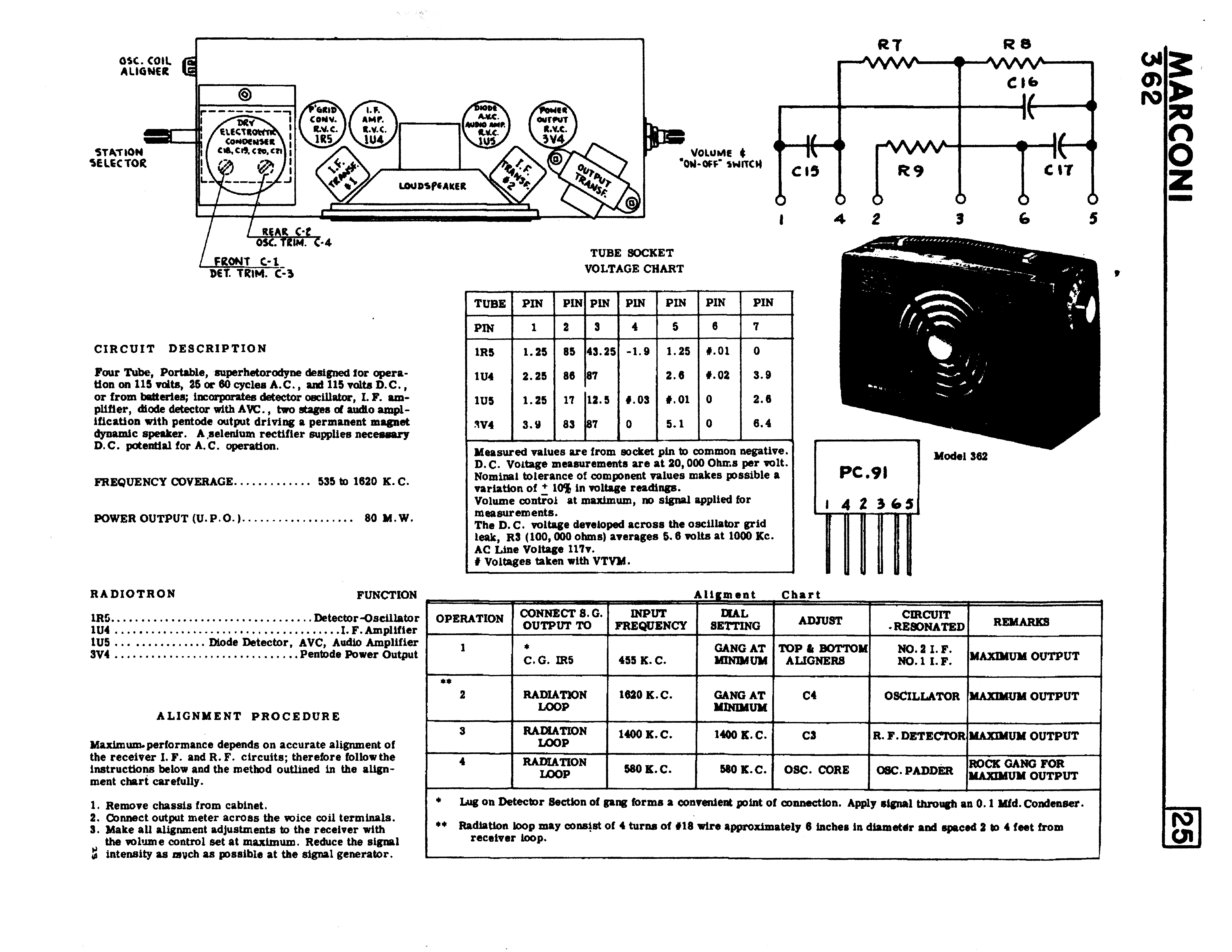

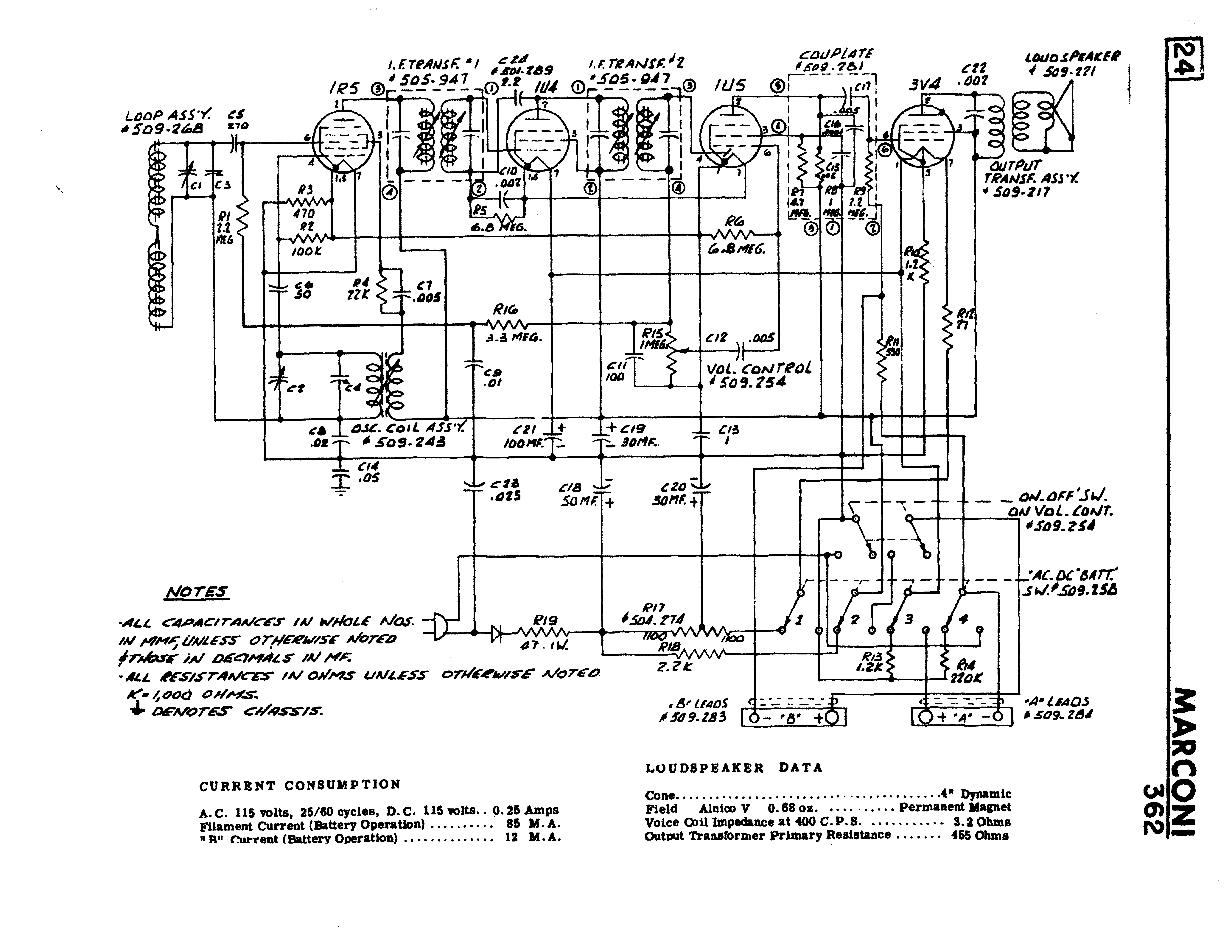

MODEL 362 ELECTRICAL DIAGRAMS


Contributors or References:

1) Gary Albach <[albach(at)direct.ca>

Sept 3/15
