CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 388 RADIO

---

Type: 6 tube AC/DC superheterodyne receiver with record player.
Frequency range: 535 to 1720 KHz
Audio power: 1.8 watts.
Speaker size: 8 inch
Input power: .115 VAC 60 Hz  or 115VDC  0.6 amps
Comment: This radio is also  the Emerson model 5809.

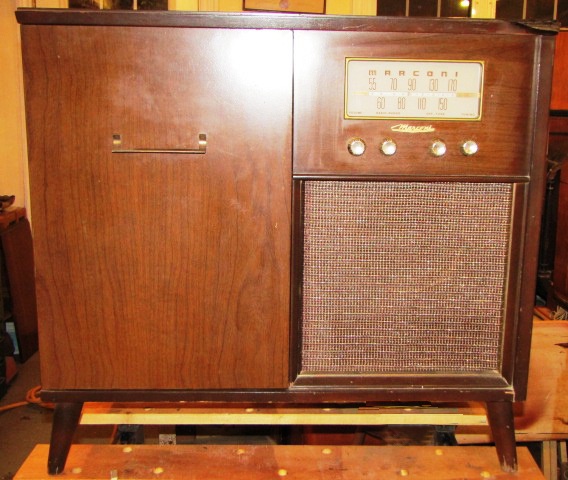

Model 388  front view.

Model 388 showing record player

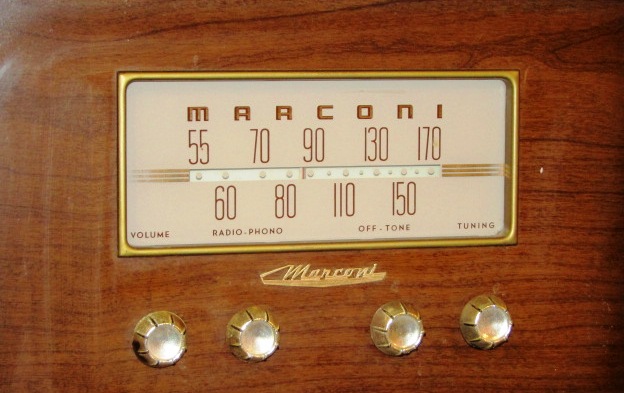

Model 388  closeup of front panel

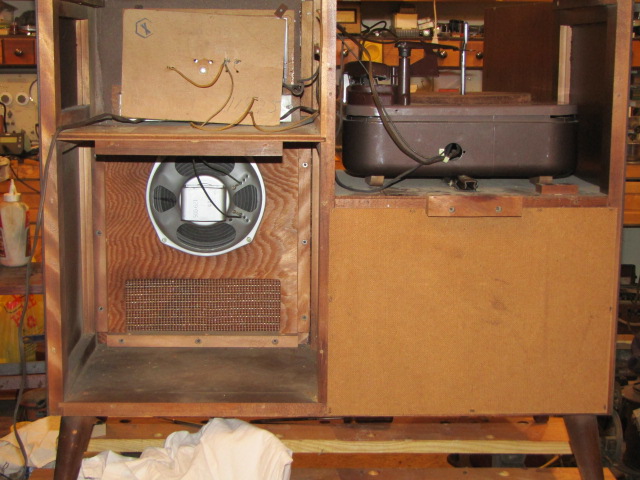

Model 388 rear view

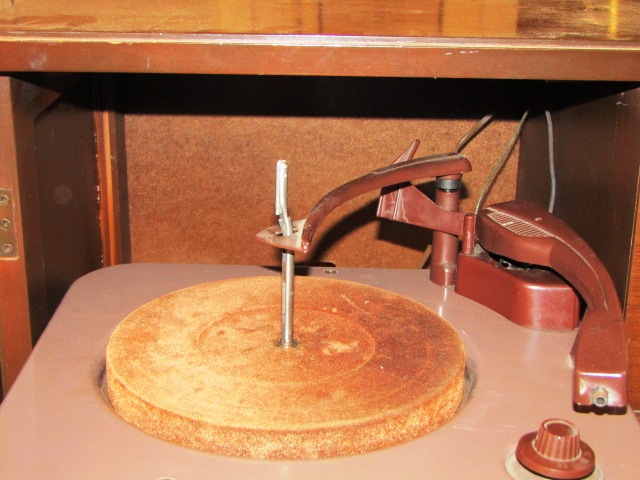

Model 388 closeup of record player.

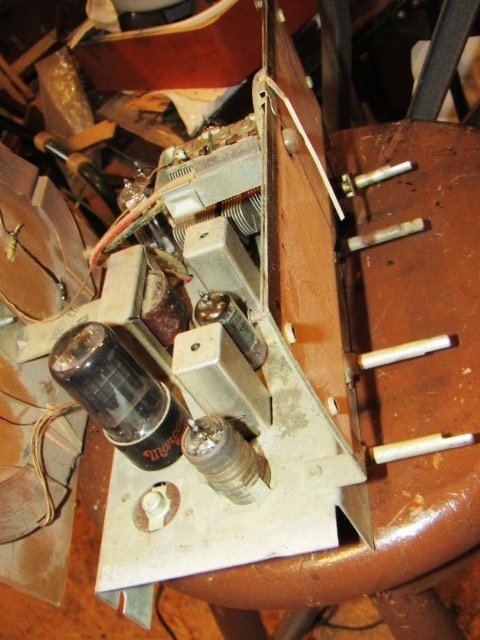

Model 388 chassis view. The model 388  uses the model 319B chassis

All model 388 photos in this table by  Kevin Christopher

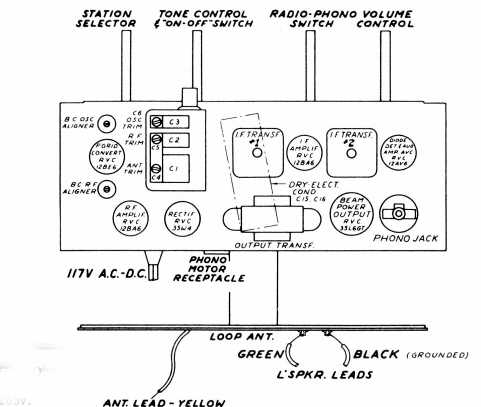

388 Chassis  (Image courtesy Pacific TV )


Contributors or References:

1)   http://pacifictv.ca/schematics/marconi388data.pdf
2) Kevin Christopher [kevinivc@gmail.com]



Jan 8/23
