CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 4503  RADIO

Type : AC operated superheterodyne receiver and phonograph.
Frequency range: Broadcast band plus FM  (assumed)
Audio power: ?
Speaker size: ?
Input power: 117 VAC,   0.7 amp 60 Hz
Vintage: 1959





Model 4503 with lid in lowered position

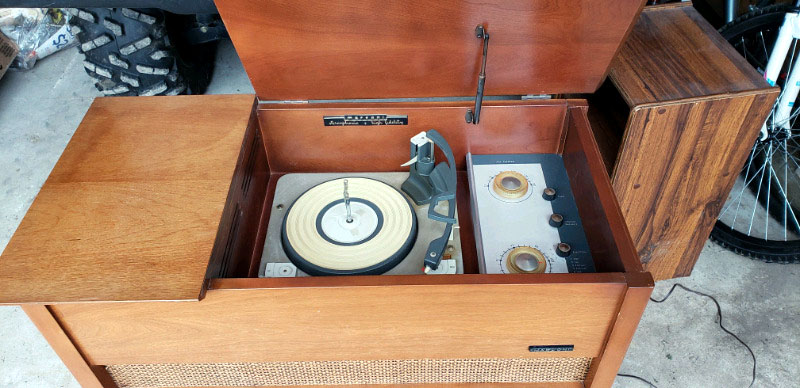

Model 4503 showing the top deck
/4503_03.jpg
Model 4503 showing a closer view of the top deck.
Model 4503 rear view

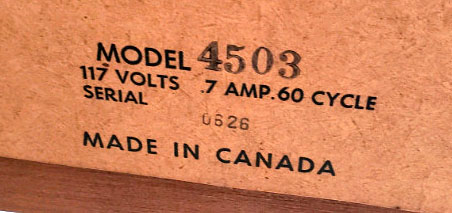

Model 4503 nameplate information
t/4503_05.jpg

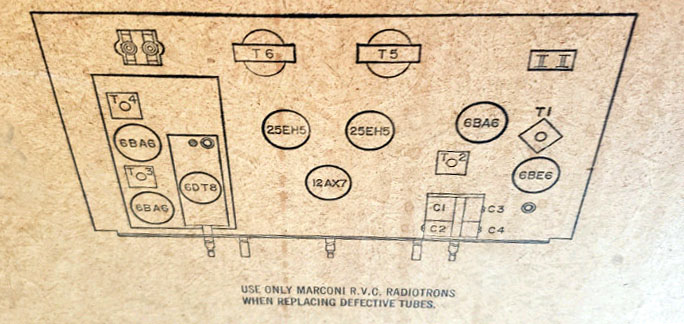

Model 4503 tube layout diagram
Model 4503 - This is the local dealer from whom this 4506 was originally purchased.
All images in this table via Kijiji




Contributors or References:
