CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 468 RADIO

---

Type:   5 tube AC superheterodyne receiver with alarm clock.
Frequency range: Broadcast band only
Tube lineup: 12BE6, 12BA6, 12AV6, 50C5, 35C3
Audio power:  ? .
Speaker size:  ?
Input power: .115 VAC   60 Hz
Comment: The model 468 chassis is also used in models 465 and 467

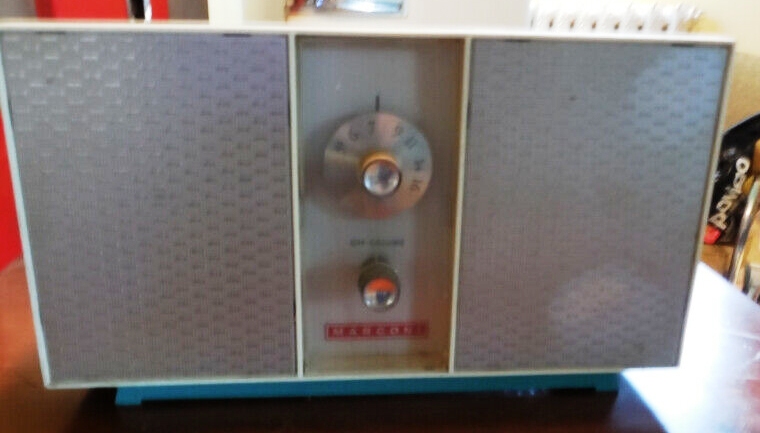

Model 468 front view. (Image via E-bay)

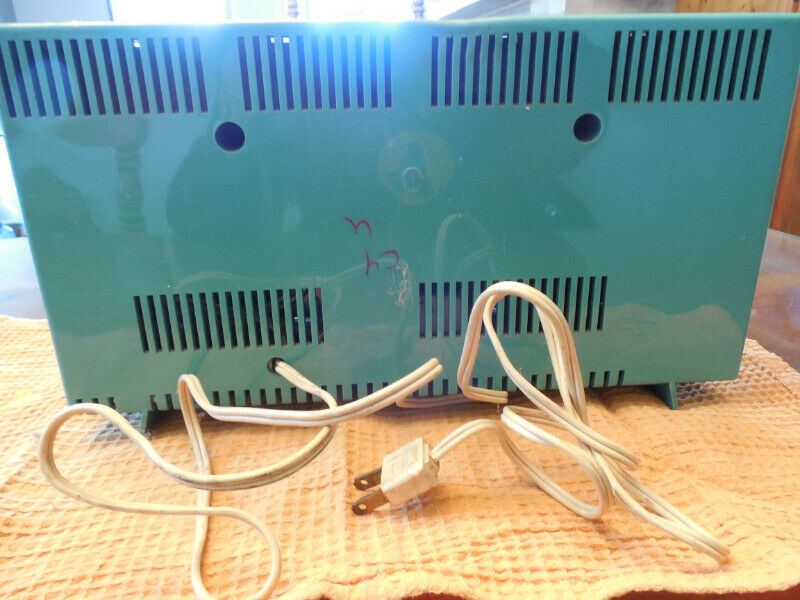

Model 468  rear view. (Image via E-bay)

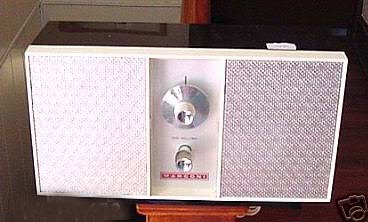

Model 468 in white cabinet. ((Image.via E-bay)

Model 465 / 467 / 468 schematic and parts layout (Courtesy Pacific TV)


Contributors or References:

1) http://pacifictv.ca/schematics/marconi467data.pdf

Apr 25.21
