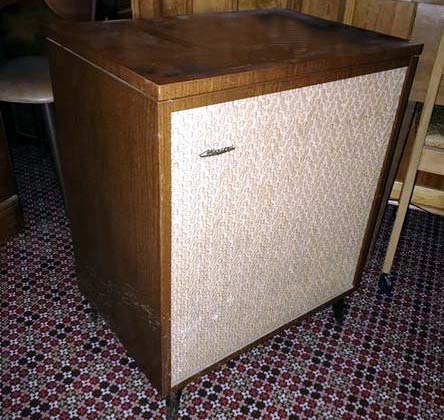

| Model 499 front view |
 |

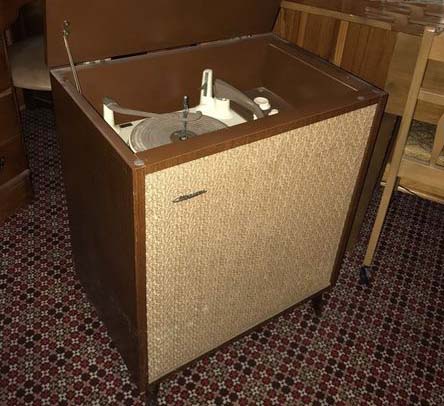

| Model 499 with cover raised. |
 |

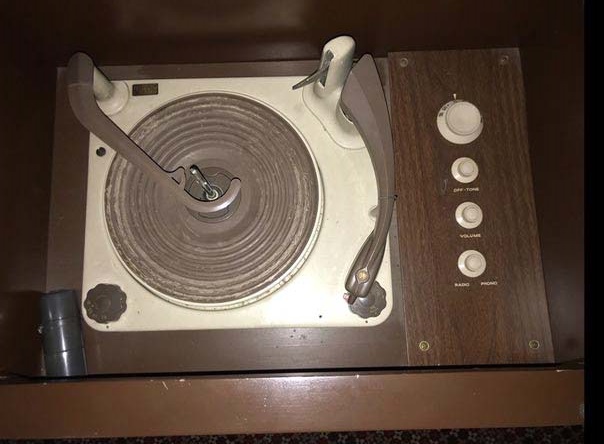

| Model 499 record changer and control panel. |
 |
| Model 499 technical data |
| All photos in this table via Kijji |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 499 RADIO-PHONOGRAPH
Type: Five tube, AC only, radio /phonograph
Frequency range: Standard broadcast band.
Circa: 1959?
Tube lineup: 12BA6, 12AV6, 12BE6, 35W4, 35C3, 50C5 (All American Five design)
Audio power: ?
Speaker: ?
Input power: .117 VAC 60 Hz 0.5 amps
Comment: Cabinet available in walnut or oak finish. On the tube layout sheet, Canadian Marconi opted to show the tube types 35W4 and 35C5 as being in the same envelope. Since both of these types are half wave rectifiers, that means that either tube type could be ffound at this position. It is also noted that this is a trsnformerless set, yet Marconi stated " 60 cycle only" operation.
|
| Model 499 front view |
|
| Model 499 with cover raised. |
|
| Model 499 record changer and control panel. |
|
| Model 499 technical data |
| All photos in this table via Kijji |
Contributors or References:1)
Dec 12/18
