CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 92x RADIOS

Type : Five tube superheterodyne receiver
Frequency coverage: FM band only.
Tube lineup:  12DT8 12BA6 12BA6 19T8 50C5. DC to run the circuits is provided by a selenium rectifier under the chassis.
Power rating : 117  AC/DC  60 Hz
Circa: 1960
Designator. This radio was made for Canadian Marconi by OEM Emerson. The Marconi designation, if any,  is not known at this time.

Comment:  This is still a work in progress. Sams Photofact set 499 folder 8 date 9-60 features the Emerson models 920B and 925B as sharing the same schematic. It is believed that the 920 and 925 series B are different only in appearance and colour.

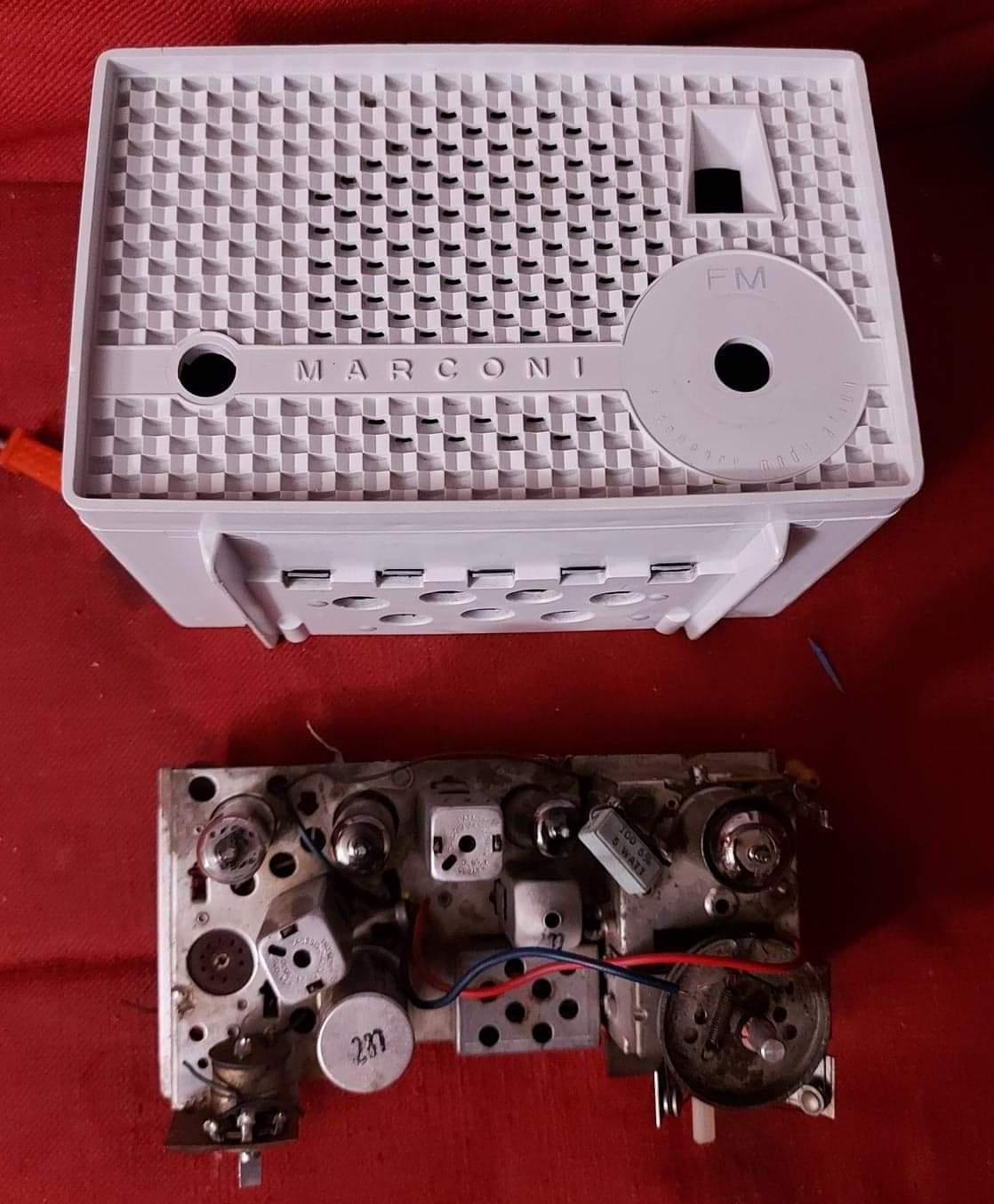

Model 920 case and chassis. .
i/home_ent/92x_back_cover.jpeg

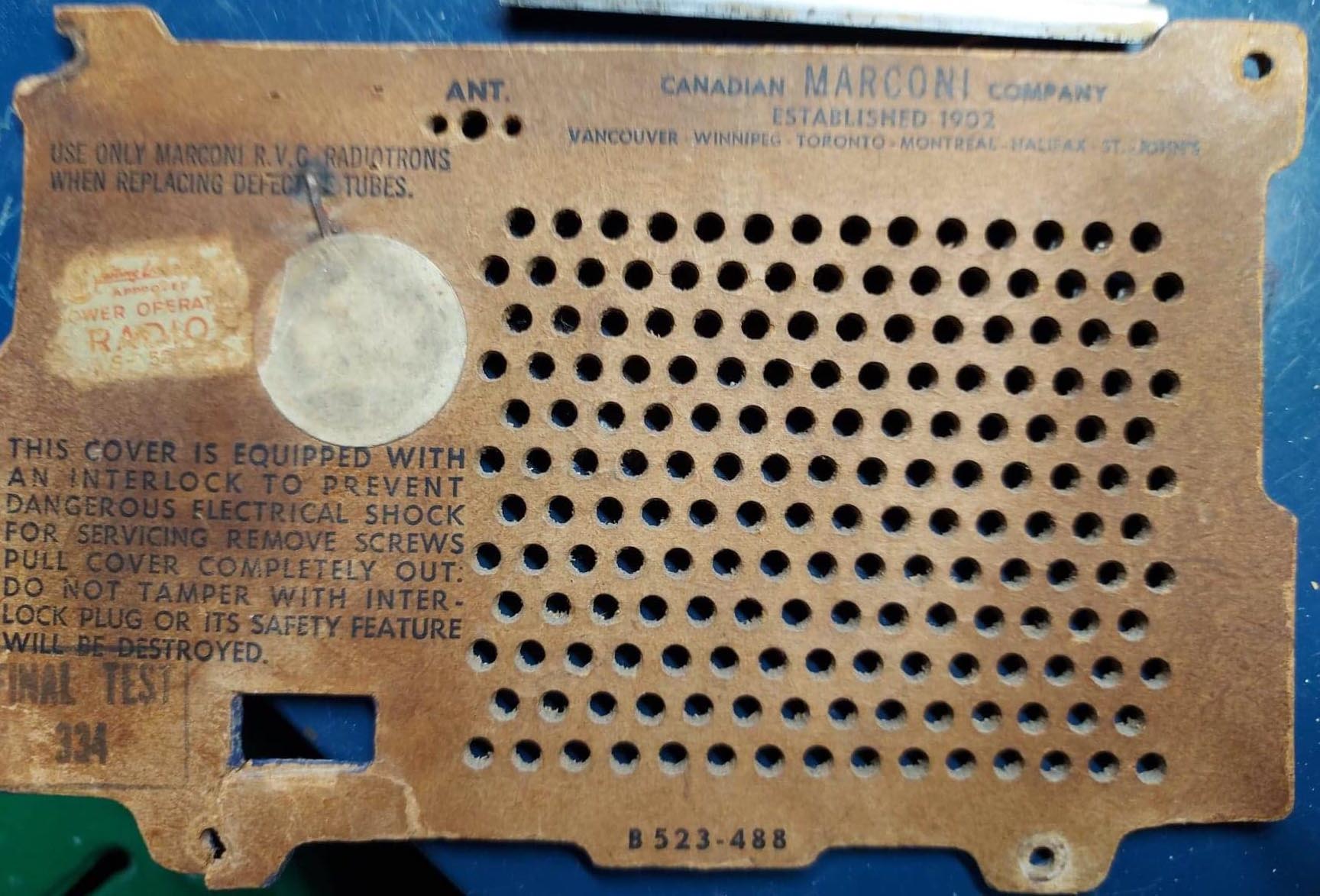

Model 920 back cover. The Marconi name is  stamped on the back. Click on image to enlarge.



home_ent/920b_01.jpg
Emerson or Marconi  Model 920B with pink cabinet. (Image via http://mwsherman.com/ )
Emerson or Marconi Model 920B (Image via http://mwsherman.com/)
Marconi Model 920B (Image via http://mwsherman.com/)





Contributors or References:

1)  https://www.radiomuseum.org/r/emerson_920b.html
2) http://mwsherman.com/fmonly/fm_only_list.html#Emerson
3) Franky 2Shoes [frnksilveri@gmail.com]
