CANADIAN MARCONI TELEVISION  -  MODEL TV 100

CRT size: 10 inches
Tube count: 20
Vintage 1950


Model  TV 100
This is the flyer for the Model TV I00
This date on the TV100 marketing brochure certifies that 1950 was  either the marketing or production year for the TV100.
All images in this table from the collection of Tom Genova


/tv_tv100_03.jpg

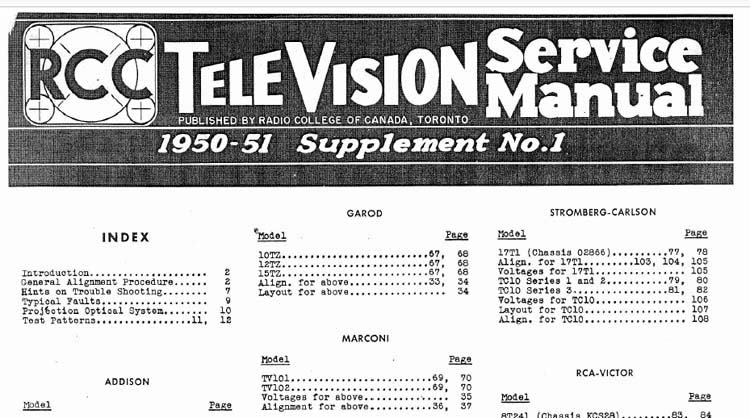

There is a minor mystery: The models TV101 and TV 102 are listed in the Radio Collecge of Canada Service Manual #1. It is puzzling as to why the TV 100 is not listed for the years 1950 and 1951. (Extract provided by Bruce Winter , SPARC Museum)

GENERAL ELECTRIC MODEL 10T5

PIctured below is the General Electric television model 10T5 which was made in 1949. The TV100 pictured above is identical in appearance except for a minor cosmetic difference . This would suggest that the 10T5 design was licenced to Canadian Marconi and they used the model TV100 designator. Can anyone confirm this licensing arrangement?  Contact : jerry.proc@sympatico.ca


/10t5_general_electric_tv_1949_01a.jpg

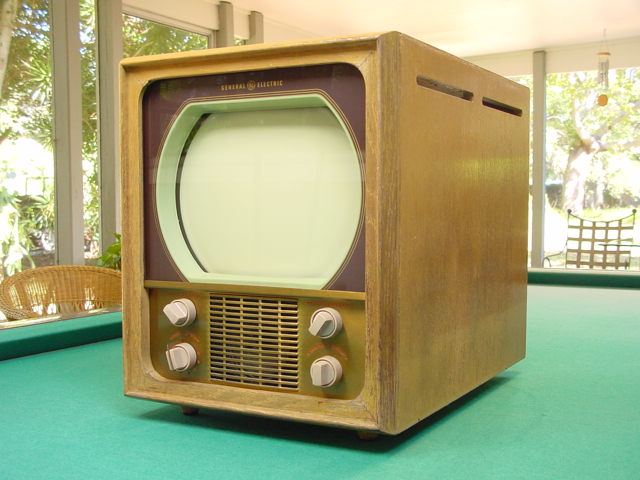

Model 10T5 - Front view. This TV measures 16 1/2 tall, 13 1/2 wide, 20 deep and weighs 50 lbs.
Model 10T5 - Control detail
/10t5_general_electric_tv_1949_03.jpg
Model 10T5 - Left side of chassis showing tube layout

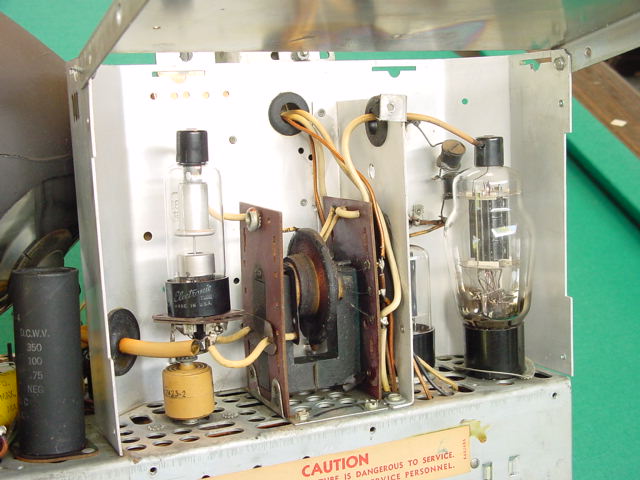

Model 10T5 - High voltage compartment
Model 10T5 -  Under the chassis
All photos in this table via E-bay.

Contributors or References:

1) Tom Genova  USA  <tgenova(at)gmail.com>
2) Bruce Winter <treasurer(at) sparcradio.ca>
