STT-4 Transmitter

SPECIFICATIONS

Type:   96450 CW transmitter
Power output: 100 watts
Frequency range:

1) 6,200 to 6,675 KHz
2) 8,200 to 8,900 KHz
3) 11,000 to 11,400 KHz
4) 12,300 to 13,350 KHz
5) 16,400 to 17,750 KHz

Frequency control:

One of four selectable master oscillators or one of four crystals. MO's were preset with the operating frequency.
Vintage: 1942
Mains power: 115 VAC 60 Hz  @ 4.5 amp (550 VA at a power factor of 0.85) . Provided by a rotary converter
Normal starting delay: 10 seconds. Can be reduced to 2 seconds in case of an emergency..
.
Now all we need is the rest of the transmitter that goes with the nameplate. . Please contact jerry.proc@sympatico.ca

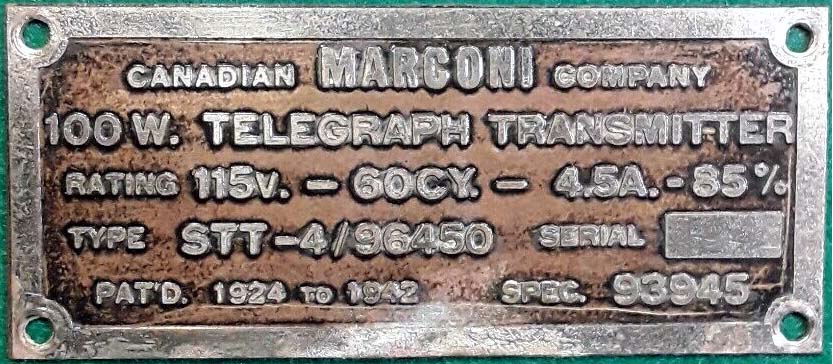

STT-4 nameplate. (Photo via E-bay.

Contributors and Credits:


1) William Mitchell    K8WOM  <womcom1(at)yahoo.com>
