For normal operational equipment, Matsqui and Newport Corners were generally identical. There were however some differences in equipment fits due to operational requirements, funding or trials.
RF-131-122 Exciter
The RF131-122 exciter (100 mw output) fed the RF-110 linear which
produced 1000 watts which was then applied to the input of RF-745 which
in turn outputs 10kW.
 |
Harris RF-131-122 HF Exciter
Compatible with the Harris RF-110A series power amplifier. Frequency control: Digital tuning with remote control capability
|
HARRIS RF-110 Linear Amp
This is the 1 KW linear amp used at Matsqui. The techs got in
the habit of referring to it as a 'pre-amp'. It was also used as
a 1 KW standalone transmitter in both CW ship/shore as well as RATT ship/shore
answering roles.
 |

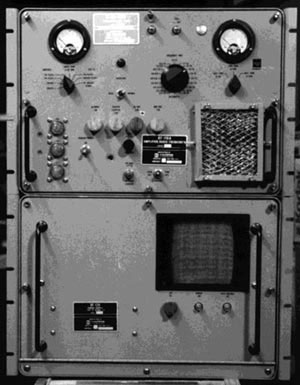

Harris RF-110A 1 KW Linear Power Amplifier with
matching RF-124 (PP-5237/URC) Power Supply. This amplifier is compatible
with the RF-131 and RF-1310 series exciters.
Frequency range: 2 to 30 MHz.
Power Requirement: 230 VAC 48-63 Hz, single phase. (Image courtesy Toronto Surplus and Scientific)
|
745 Transmitter System
Until replaced by the Harris 1165, the 745 saw service over several
decades. It was driven by the RF-110 linear amp.
 |
 |
|

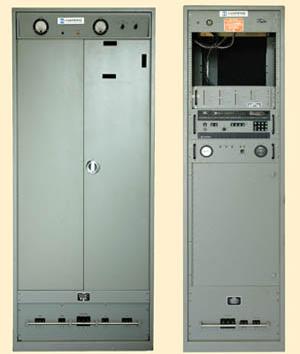

| This Harris RF-745-03 Transmitter System consists
of the RF-126 Amplifier (cabinet on left), RF-1815AR Performance Monitor,
RF-1310 Exciter, RF-1110A Amplifier & RF-1124 .
(Photo courtesy Toronto Surplus & Scientific Inc.) |

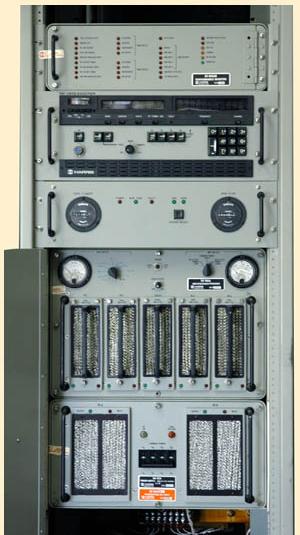

745 Power Supply and Control Panel. The AN designation
for the RF. Harris Model 745 was AN/FRT-510(v)2. Other data about this
set:
NATO Stock Number: 5895-01-252-5885
|
 |

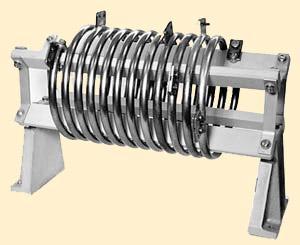

Gus Davidson, a former transmitter technician at Matsqui, specifically remembers cleaning and polishing this large 16uH coil inductor, since it was one of the monthly maintenance tasks for the Harris RF-745 transmitter. (Photo courtesy Toronto Surplus & Scientific Inc.) |
