TRIBAL CLASS (DDE 213 to DDE 219)  Radio Fit - Introduction

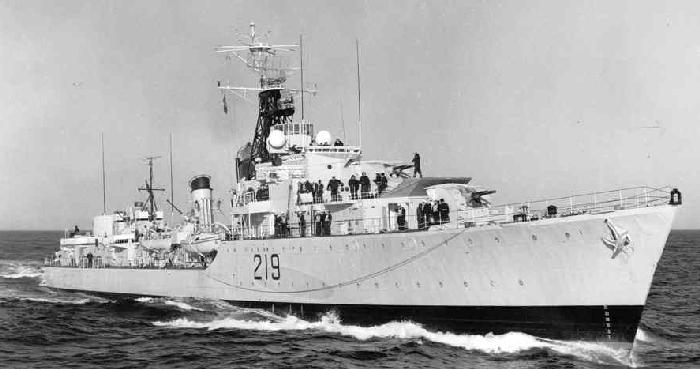

HMCS Athabaskan is representing the modernized Tribals. (Photo courtesy RCN Submitted by George Webster)


This is a cutaway view of HAIDA. The radio fittings are those when she paid off on October 1963 and are representative of the other Tribals of that era. Radio 1 and Radio 2 were called Wireless Office # 1 and #2 respectively when commissioned in 1943. Radio 3, Radio 4, Message Centre and the Crypto Office all were post 1950 additions. (Graphic courtesy HMCS HAIDA National Historic Site)

TRIBAL CLASS VITAL STATISTICS

Displacement : 2,200 standard; 2,744 tons (full load).
Length : 377 feet overall.
Beam : 37.5 feet.
Draught : 11 feet, 9 inches forward; 15 feet, 2 inches aft.
Engines : Two Parsons steam turbines; 22,000 shp each.
Boilers : Three, Admiralty 3 drum type.
Fuel Capacity : 520 tons of Bunker 'C' oil provided a range of 5,200 nm at 15 knots or 1,700 n/m at 20 knots.
Speed : 36.5 knots maximum.
Original cost for the four Tribals build at Vickers-Armstrong: 677,140 pounds Sterling (around $ Cdn 3.4 million in 1943).
Armament (in 1960): Four, 21 inch torpedo tubes. Two, twin 4 inch guns (A and B mounts - forward). Two, 3 inch 50 cal guns (aft mounting). Six, aft mounted, Squid mortar bomb launchers. Four, single barrel 40 mm Bofors.
Crew : 18- 20 officers; 230 men of other ranks.


For additional information on the Tribal Class ships, please visit your web master's home page.

The documents which follow in this section describe the equipment in HAIDA's radio rooms from 1943 to 1963.
