IFF SYSTEMS

GENERAL

The IFF acronym is derived from the words Identification, Friend or Foe. Sometimes it was called Radar Identification and Recognition System.  Starting with the MkI system in WWII, IFF initially started with its own separate equipment and antennas and had some limited direction finding capability. In later developments it was incorporated to work with the main main radar search antenna.   Not all radars have an IFF capability.  The radars today that usually have IFF are the Air Search and Surface Search (long range) using the same interrogator.  Today, the IFF interrogator is embedded in the feedhorn (or a secondary antenna 'bolted' to the parent) of the radar antenna and as the radar sweeps and hits a target it challenges it at the same time.  The operator on the radar set sees an IFF squawk on his PPI. The latest equipment using the Mk 12 protocol displays all kinds of information to the challenger.

When IFF is being used, the searching radar automatically sends interrogating pulses. This is accomplished by having the IFF dipole antenna mounted across the opening of the feed horn of the radar antenna. The IFF unit in a friendly target will automatically respond with the correct reply and the reply is made visible on the screen of the interrogating radar.

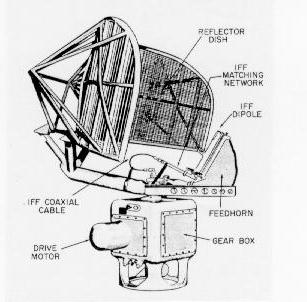

This picture shows the placement of the IFF dipole relative to the main antenna. (Photo courtesy U.S.N).

Having the dipole antenna across the feedhorn was not the case from the beginning. The next section traces the development of IFF from WWII to present.

In Britain, IFF was a pre-war development initially destined for installation on aircraft of the Royal Air Force. Designed by Don Priest and improved by Bob Carter of the Bawdsey station, the device was housed in an eighteen square inch box and was carried in the aircraft cockpit behind the pilot. It was a cumbersome unit for fighter aircraft with little cockpit space. The unit transmitted a signal to the operator of the Chain Home (CH) radar to indicate that the aircraft under surveillance was friendly. Failure to use IFF could cost a pilot his life as evidenced in the Battle of Barking Creek. This battle occurred in Britain in 1940 when an a CH operator on the Thames Estuary, not realizing the radar was incorrectly tracking an aircraft on a 180 degree reciprocal bearing, erroneously identified the aircraft as an intruder over the North Sea. Fighters were scrambled to intercept, however they did not turn on their IFF. The investigating fighters were plotted by a second CH station and reported to Stanmore as intruders. A second group of fighters was dispatched to intercept the first group. In the resulting confusion, British fighters fought British fighters and caused severe damage to a number of machines.

Pilots, who were not familiar with radar, did not appreciate the importance of switching on the IFF. Alongside the switch to turn on the unit was the IFF distract switch to prevent its capture by the enemy. Many a pilot chose the wrong switch and blew up his IFF unit. The thud of a contained explosion and the acrid smell of burning insulation in the cockpit did not deter many pilots from destroying IFF units time and time again. Eventually, the self distract switch was secured by a thin wire to prevent its accidental use. During World War II, both metric and centimetric radars proliferated on ships of the major navies. Search radars were joined by fire control sets and ultimately, a ship could locate and destroy air or surface targets in conditions of zero visibility. It therefore became important to be able to identify the targets, or at least distinguish friend from enemy.

The earliest American IFF system was the Naval Research Laboratory (NRL) Model XAE of 1937. It was a shipboard Yagi antenna mounted on a rifle stock that could be pointed at an unknown aircraft. The pilot would turn on his omnidirectional identification beacon and the ship would transmit back an acknowledgment that flashed a light on the aircraft, visible from the ship. The system worked on a frequency of 500 Mcs. This air to ship system was tested in 1938 and operational use began in 1939. In England, quite independently, Watson-Watt conceived a similar device for aircraft identification that became known as the Mk 1 system. Unfortunately, when aircraft were in tight quarters at a distance, it was not possible to distinguish friend from foe. What was needed was a more positive means of identification -- a transponder that would reply to each radar pulse it sensed.

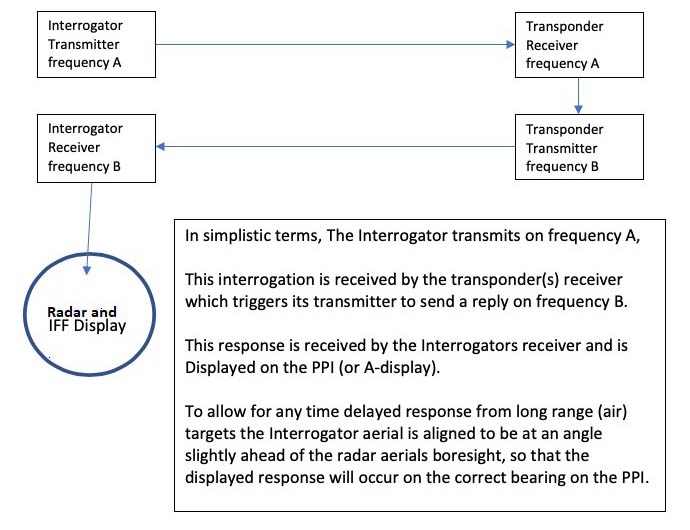

This is a simplified diagram of a generic IFF system.  (Drawn by John Wise)

In early IFF equipment,, results were displayed on an A type time base. The radar contact showed up as a  positive peak with the presence of an IFF peak meaning "Friendly".  No IFF peak meant "Foe".

MK I AND MK 2 IFF's

In 1940, the MK 1 system was introduced in British service. Its details were disclosed to the United States that fall, but this system was already obsolete. Quite independently, the Naval Research Laboratory (NRL) had developed a pulse transponder in 1939. To challenge, the radar was switched to a special pulse repetition frequency (PRF) which triggered responses. In US Service, the CXAMM IFF system was considered equivalent to the British Mk II. So far, the radar itself was the interrogator. Since the interrogator and transponder operated on the radar frequency such operation was not satisfactory when many different radars were used.

To see the Mk II  IFF in action , select this link. (Courtesy US War Department. Film #63)

MK III IFF

The Mk III IFF was Watson-Watt's invention and the precursor of modern IFF systems. IFF challenge and response were to occupy a separate, specialized band (A-Band; 165 to 185 Mcs or 157 to 187 Mcs, depending on the reference text). It was adopted as the standard Allied IFF of World War II and remained in US service for sometime after the war. An important design criterion was to ensure that the returning signals gave an accurate indication of target bearing and not merely of target range. The solution was to locate the IFF interrogator on the radar antenna, rotating with it to give directional indications. The same device would also receive the response. This was known as an 'interrogator-responsor' system. Mk III was distributed to all Allied forces including the Soviet Union. From a post-war point of view, it could be considered thoroughly compromised.

Because the system relied on active responses from other ships and aircraft, there were no problems with sea returns. It was possible to use vertical polarization, thus giving better vertical coverage. The transmitters also required much less power for a given range so the fitting of IFF presented few space problems. Initially, the interrogator aerials consisted of directional Yagi arrays mounted on a horizontal U bar, but in 1944, the most commonly used aerial system consisted of four, broad-band cage dipoles in a rectangular configuration and capable of power rotation.

Reports on the value of IFF varied, according to the theatre of operations. They ranged from "worked very well" to "never saw it used once in two years at sea."

To see the Mk III IFF in action, see the later part of this film. (Courtesy US War Department. Film #63)


MK IV IFF

Back in the United States, the NRL designed an alternative system designated Mk IV. It differed from the Mk III system by employing separate frequencies (470 and 493.5 Mcs) for challenge and reply. Mk IV was generally held in reserve during the war in case the Mk III was compromised. A few were used in the Pacific theatre at the end of the war. In Europe, it was not used due to its closeness to the frequency of the German Wurzberg radar that operated at 550 Mcs. A German radar operator might discover IFF pulses from Allied aircraft, thus compromising the system. Due to its higher operating frequency (G-band), Mk IV had greater directivity and the typical beam width was 7 to 10 degrees.

MK V IFF

Mark III was an interim measure and the NRL was directed to produce a new system that became Mk V/UNB (United Nations Beaconry). Wider transmitter and receiver frequency separation permitted the use of higher gain antennas and higher frequencies (950 to 1150 Mcs) made for better directivity. Twelve channels were made available within this range as an anti-jamming measure. Signals were coded to permit, for example, identification of one among several 'friendlies'. On a Plan Position Indicator (PPI) display, transponder coding would be displayed as a dot and dash elongation (radially) of the target pip. The first Mk V systems appeared in August of 1944 but the system did not complete service evaluation until 1947-48. Mk V was considered successful but few were produced. Installations were confined to CVB's and fleet carriers where it was important to be able to track and identify targets such as jet aircraft. An attempt was made to re-design and simplify the Mk V system. This was designated as Mk VI.

MK X IFF

The follow up system to Mk V was Mark X, a system developed in the USA. At first, this did not mean a jump from the fifth to the tenth Allied IFF system. The X denoted an experimental system and after it went into production, it assigned the Mk X (ten) nomenclature. There were problems with the Mk V system. It used a universal 'code of the day' to distinguish friend from foe but the NRL considered this a serious, potential security risk. Another danger in the Mk V was enemy use of Allied IFF to identify our own craft. By July 1952, the Mk X system started operational use in 50 per cent of the US Navy. The balance of the fleet was to be converted by January 1954.

The Mk X IFF system sends a pulsed secondary signal from its Interrogator along with the main radar signal.  This in turn is received by a Transponder situated in the craft under observation. The Transponder then sends back an appropriate reply that is detected by the Interrogator and distributed for display. Separate pre-set frequencies are used for interrogation and reply; 1030 MHz for transmission and 1090 MHz for reply. Normally, the IFF antenna will rotate in synchronism with the main air warning radar thus enabling the responses to be superimposed on the radar picture.

Three modes of operation are available for General, Personal and Functional identification. The mode of operation is determined by the spacing between the two 1 microsecond pulses which constitute the interrogating signals. Spacings employed are 3, 5, and 8 microseconds for modes 1, 2 and 3 respectively. The transponder reply to each of these interrogations is a single one microsecond pulse except in the case of an aircraft in which the reply to a mode 2 challenge is two, one microsecond pulses spaced 16 microseconds apart. In addition, the aircraft has the facility of an emergency reply consisting of four, one microsecond pulses spaced by 16 microseconds between adjacent pulses. A transponder will always reply to a mode 1 interrogation but replies to interrogation in modes 2 and 3 are optional. This is dependent upon the setting of appropriate switches on the transponder control panel. When set to emergency mode, the aircraft transponder will transmit the four pulse reply to all modes of interrogation.

MK XII IFF

Mark X did not provide real security. Its interrogation pulse was not coded. There was always a possibility that an enemy might use Mk X interrogation pulses to induce US aircraft to identify themselves and then use the aircraft's IFF system as a homing beacon for missiles. As early as 1951, the NRL had developed a vacuum tube binary coder but it was too massive for airborne use. Transistor technology improved matters. By 1956, an American tri-service group had been formed to implement what has now become the Mk XII system, the current system in use.

This is a fully cryptographic system so even if the enemy had full knowledge of the system design, it cannot be used unless the correct interrogation and response codes are known.

British IFF systems were designated into two series during World War II.  The 240 designation was used for interrogators and the 250 series for transponders and beacons . A transponder is the marriage of a transmitter and a receiver which was called a responsor. Sometimes the receiver in a transponder is referred to only as a respomsor.

Type 242 IFF series interrogation equipment was fitted on RCN ships in conjunction with Type 291 and Type 275 radar sets to provide 'A' band interrogation using the standard Mark III IFF system. Interrogators could function anywhere in the 165 to 185 MHz band, but were normally used around 179 or 182 MHz (1.8 to 1.6 metres) at a power output of 1 kilowatt. The pulse repetition frequency was 125 or 50 pulses per second and the pulse length was 6 microseconds. When used with radar types 291, the 242 was fitted with aerial outfit 'ASD'. This aerial had an omni-directional radiation pattern. Type 242 was first introduced into service in 1943. The pulse repetition frequency of the main radar was counted down in ratios of 4:1 or 10:1 in the modulator which then fired the interrogator transmitter. Simultaneously, a secondary trace, displaced from the main trace was displayed as an 'A' scope presentation. Interrogator signals received by the responsor unit were displayed on this secondary trace as inverted signals along with the normal radar echoes. Correspondence of the interrogator pulse and the radar echo identified the target. The associated shipborne transponder was the type 253 or the Mark III IFF when fitted on an aircraft. HMCS HAIDA  was fitted with the 242WC and 242WS types in the mid 1940's.

Types: 242 was used with types 271 and 275 radar and  was specifically designed to operation the  band  157 - 187 MHz  and to work with WS, WC and G radars with results on A scopes displays. It was independently controlled for use with WS (Warning Surface) sets as it had its own rotation motor)
242M was used with radar types 276/277 and 293.
242P/Q were used with radar sets 960/982/983.

Frequency band: 165 to 185 or 159 to 189 MHz (covers all variants)
Type 242

A generic diagram of the biconical antenna used with the type 242 interrogator. This was called aerial outfit ASD (Drawing by Koji Kamori)	The bicone antenna as fitted on HMCS Sackville. Clicj on image to enlarge (Photo by Sandy McClearn)

Biconical antennas (also known as Bowtie or Butterfly antennas) are broadband dipole antennas that are made up of two roughly conical conductive objects, nearly touching at their points. These antennas have dipole like characteristics, with a wider bandwidth achieved due to the double cone elements structure.

The pulse repetition and pulse length varies depending on the types of radar that the 242 was used with. 242M is similar to that of type 242 except for some minor modifications. Transmitter power was now selectable between low and high power outputs (2 kw or 10 kw) and the output frequency could be varied across a 30 MHz wide band. A pre-amplifier was incorporated in the transmitter unit that increased the responsor range and the transmit/receive (T/R) switching arrangements were improved. When the 242M operated in conjunction with the 276/277/293 radar types, it was fitted with aerial outfit 'ASS'. This aerial consisted of four broadband vertical dipoles with power rotation.

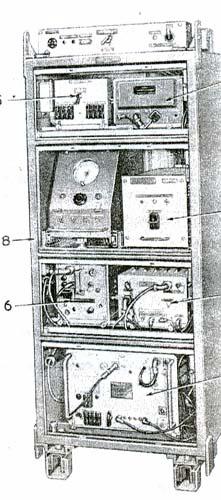

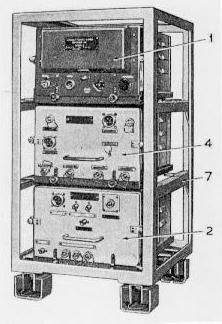

242 Interrogator - Component Parts. 1.W4790 responsor unit  2.7AD transmitter 4. W6332 Modulator and mixer. (Photo courtesy of the British Admiralty)	242Q.  The power output of the Q variant was 2 or 10 kw.  (Photo courtesy of the British Admiralty)

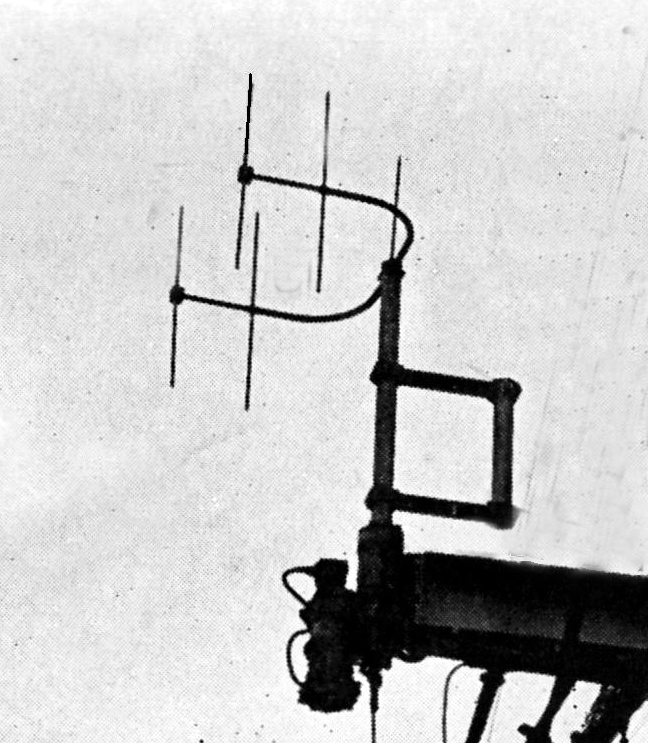

242 antenna. This was used with type 271 radar aboard HMCS HAIDA in 1944. (Extract from CB 4182)

Close up view of 242M Aerial Outfit ASS. (Photo courtesy of the British Admiralty)	Aerial Outfit 242M on HMCS HAIDA as seen on her first tour of duty in Korea. (Photo courtesy RCN)

Modified to independently work with WA  sets and also with 'A' scopes.

This was is a modified Type 242 with its own display system. It was produced for American SL Radar, which has only a PPI and no A scope. Type 244 has a semi-directional ASB aerial and was also fitted to American SG radars.

In summary:
Type 242 was independently controlled for use with WS (Warning Surface) sets (i.e. it has its own rotation motor)
Type 243 was independently controlled for use with WA (Warning Air) sets and subsequently:
Type 941 was fixed to WA set aerials. (i.e. so it rotated with the parent radar aerial and gave PPI presentations)

Type 253P was a shipborne transponder, compatible with the Mark III IFF system and operated in response to triggering pulses from any interrogator or radar set in the same frequency band. When triggered, Types 253P/Q responded with various coded signals as required for the purposes of normal interrogation or ship-to-ship identification or homing. This set could operate in the 157 to 187 MHz band but normally operated at 182 MHz for ship-to-ship identification or when used as a beacon facility. In a normal fit, aerial outfit 'ASH' was used. For installation aboard coastal craft, aerial outfit 'ANT' was used. Normally the power output was 10 watts. A low power setting of 0.75 watts was available as an anti-direction finding measure. The pulse repetition frequency was triggered by the receipt of signals from interrogators of radar sets. This was limited only by a 300 microsecond period of quiescence between each transmission. The pulse length of the output signal could be set for narrow (6-10 us), wide (17-25 us), or distress mode (80 us).

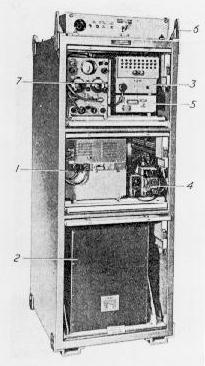

253 Transponder - Component Parts (Photo courtesy of the British Admiralty)

Types 253P and 253Q were similar except that type 253Q was mounted in a resilient steel cabinet. By operating the buttons marked 'I', 'A', and 'B' on the code selection unit, the following operating conditions were permitted:

I: Normal Mark III IFF responses (sweeping 157-187 MHz every 2.8 seconds). Six codes were available by selection and each code consisted of four transmissions using narrow and wide pulses. A complete code was transmitted once every 11.2 seconds. A special extra wide pulse was available for distress purposes.

A: Alternate normal IFF codes consisting of four narrow pulses for 5.6 seconds followed by 5.6 seconds of Identity Code on a fixed frequency of 182 Mcs. This code consisted of two letters that could be of any combination of nine narrow, wide or blank pulses which were selected by means of the nine switches on the Code Selection Unit.

C: Chopped response on the frequency of 182 MHz. The response was mechanically interrupted for 40 milliseconds every one-fifth second to distinguish it from a normal code.

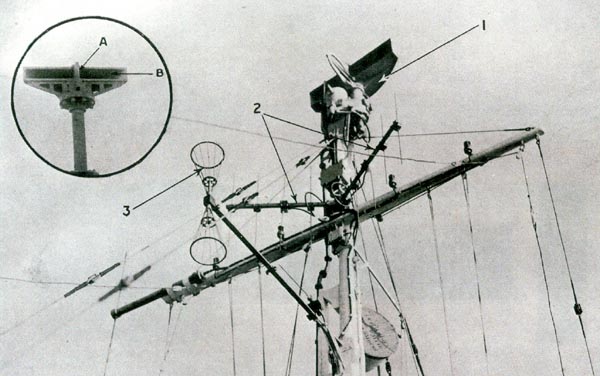

To limit mutual interference, the antenna for type 253P was situated at least 12 feet or more from the nearest interrogator antenna on a ship. HAIDA was fitted with the type 253P transponder during the mid 1940's.

Item 1 - 268 Radar; Item 2 - Interrogator type 242; Item 3 - 253 Transponder. (Photo via Ovyvind Garvik)



AN/UPX-1 DIRECTIONAL IFF

When HMCS HAIDA paid off, this was her Mark 10 IFF fitting. Unless otherwise noted, all the equipment was fitted in  the Electronics  Maintenance Room  (EMR)   compartment.  UPX-1 EQUIPMENT * AN/UPA-24 /KY80        IFF Video Decoder * AN/UPA-24 /C1008       Radar Set Control (in Operations Room) * AN/UPX-1A /RT-194A  IFF Receiver-Transmitter (for IFF dipole in front of SPS-6C feed horn) * AN/UPX-1A /KY-61A   IFF Coder/Decoder * AB-274                           IFF Dipole antenna assembly in front of SPS-6C feed horn AN/UPX-5 EQUIPMENT  * AN/UPX-5 /RT-269        IFF Receiver-Transmitter (for dedicated omnidirectional IFF antenna on foremast yardarm) * AN/UPX-5 /KY-88         IFF  Decoder * AS-177UPX                           Antenna Assembly (dedicated to UPX-5). 1090 mHz TX/ 1030RX * AN/UPM-99                   Radar Test Set * AS-177-UPX                           Antenna Assembly (dedicated to UPM-99)  These devices were shown on the ship's drawing but were never installed: * AN/UPA-38 /KY-136    Video Coder * AN/UPA-38 /C1407       Radar Set Control (in Ops Room)



HMCS HAIDA's directional IFF system,namely  the UPX-1.

HMCS Haida's omnidirectional IFF Interrogation-/Response System .

RT-194A/UPX-1

RECEIVER/TRANSMITTER

F. Oorschot, from the Netherlands, provides a UPX-1 description."The UPX series were used on the destroyers and frigates of the Dutch navy  in the years 1950 to 1970.

UPX-1 was the IFF (Mk X) interrogator; Tx Freq. 1090 Mc/s, Rx Freq.1030 Mc/s. Average power  - 1 kw. using  Modes 1, 2 and 3. Mode 1 and 2 was a naval-airforce mode. Mode 3 was also a airborne civilian mode. The time between the two send pulses depended on the mode. Mode 1 was 3 usec. Mode 2, was 5 usec while Mode was 3.8 usec. With the code-selectors, you could select a video code that was filtered for a  display on a PPI screen.

With the big switch, in the middle and under the UPX-24, you could select the kind of video for the display.
The IFF antenna was fitted on the feeder of a long range early air warning radar (L-band). Trigger for the transmitter came from same radar. The UPX-1 transmitting mode was also controlled by the AN/UPX-24".



RT-194/UPX-1 (Photo courtesy Destroyer Escort Central page,  http://www.de220.com)

KY-61/UPX-1  coder/decoder.  (Photo courtesy Destroyer Escort Central page,  http://www.de220.com)



C1008/UPA-24.

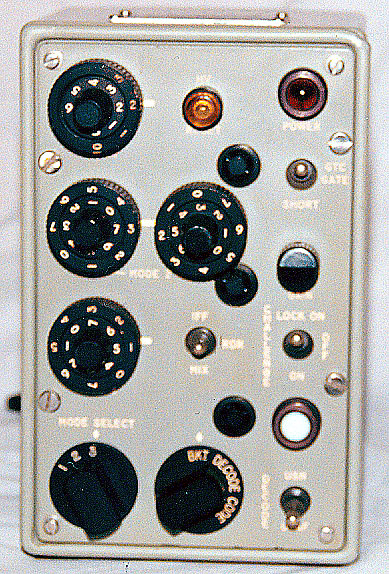

This was the control head for the group video decoder for the UPX-1 IFF system. It controlled the mode of transmission ( i.e. modes 1, 2 or 3) and the 'squawk' code assigned to each particular ship. (Photo by Jerry Proc)

GENERAL
The AN/UPX-5 Radar Identification Set responds to appropriate interrogations from Radar Recognition Sets for the purpose of self-identification. It receives  challenging signals, called interrogations, and transmits single-pulse identifying replies. Interrogations are pulse-pairs in one or more of three modes as determined by the spacing of the pulses in a pair. Replies to all modes are single, one microsecond pulses.  Comprehensive technical  information on the UPX-5 system can be found here.

MODES OF OPERATION.
In all three modes interrogation from a single Recognition Set may occur at any rate between 20 and 1000 pairs of pulses  per second and, except when pre-vented by suppression or enabling, a challenged Identification Set will transmit a reply signal for each pair of interrogation pulses it receives. The AN/UPX-5 always has a single reply pulse, and can respond to a single mode, a combination of modes, or all three modes according to the settings of the Identification Set mode switches and the type of interrogation. Al-though a one microsecond reply signal is transmitted for all modes of challenge, ambiguity between signals is avoided by circuits on the Radar Recognition Set initiating the interrogation. The maximum reply rate when challenged by more than one Recognition Set is 4000.

BASIC COMPONENTS

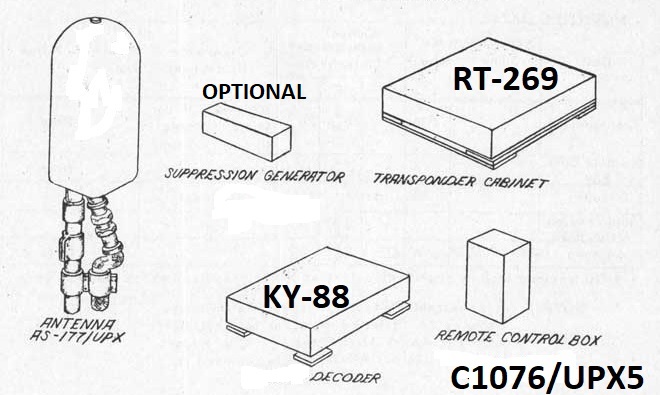

AN/UPX-5 basic components. The Supression Generator helps in managing mutual interference between multiple IFF systems operating in close proximity. So the generator is "configuration dependent "It is not known if the RCN used this optional equipment on any of its ships. .The test set for the UPX-5 system was the AN/UPM-6B. Additional technical info on the UPX-5 system can be found here.  The link typifies a shipborne installation in the UK.  (USN Navy image ) In cases where the the  Suppression Generator is installed,. it It gets triggered from the UPX-5. It prevents overlapping responses: When multiple IFF transponders or interrogators are in operation, they can generate overlapping signals, causing false returns or degraded system performance. The suppression generator helps to mitigate this issue.

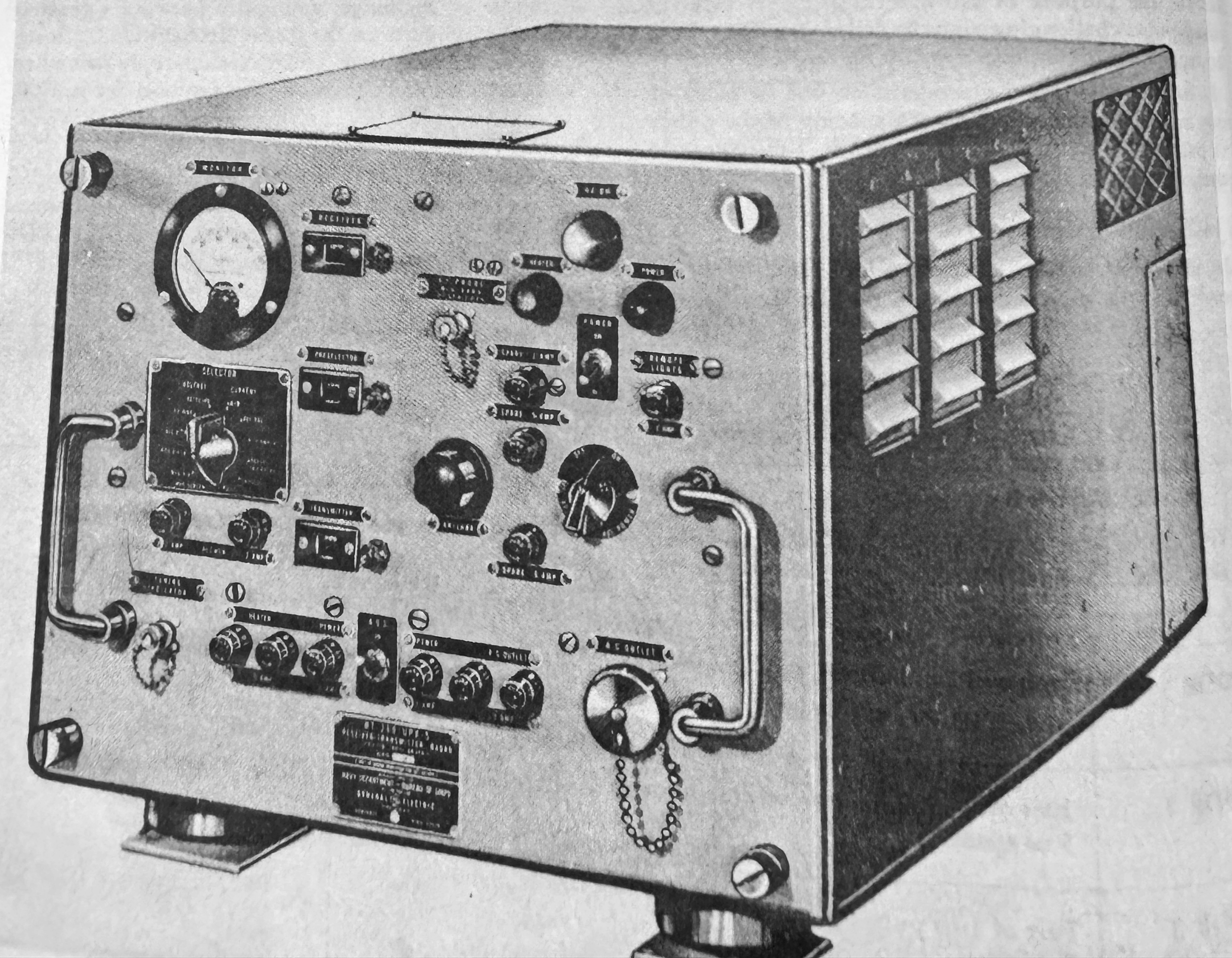

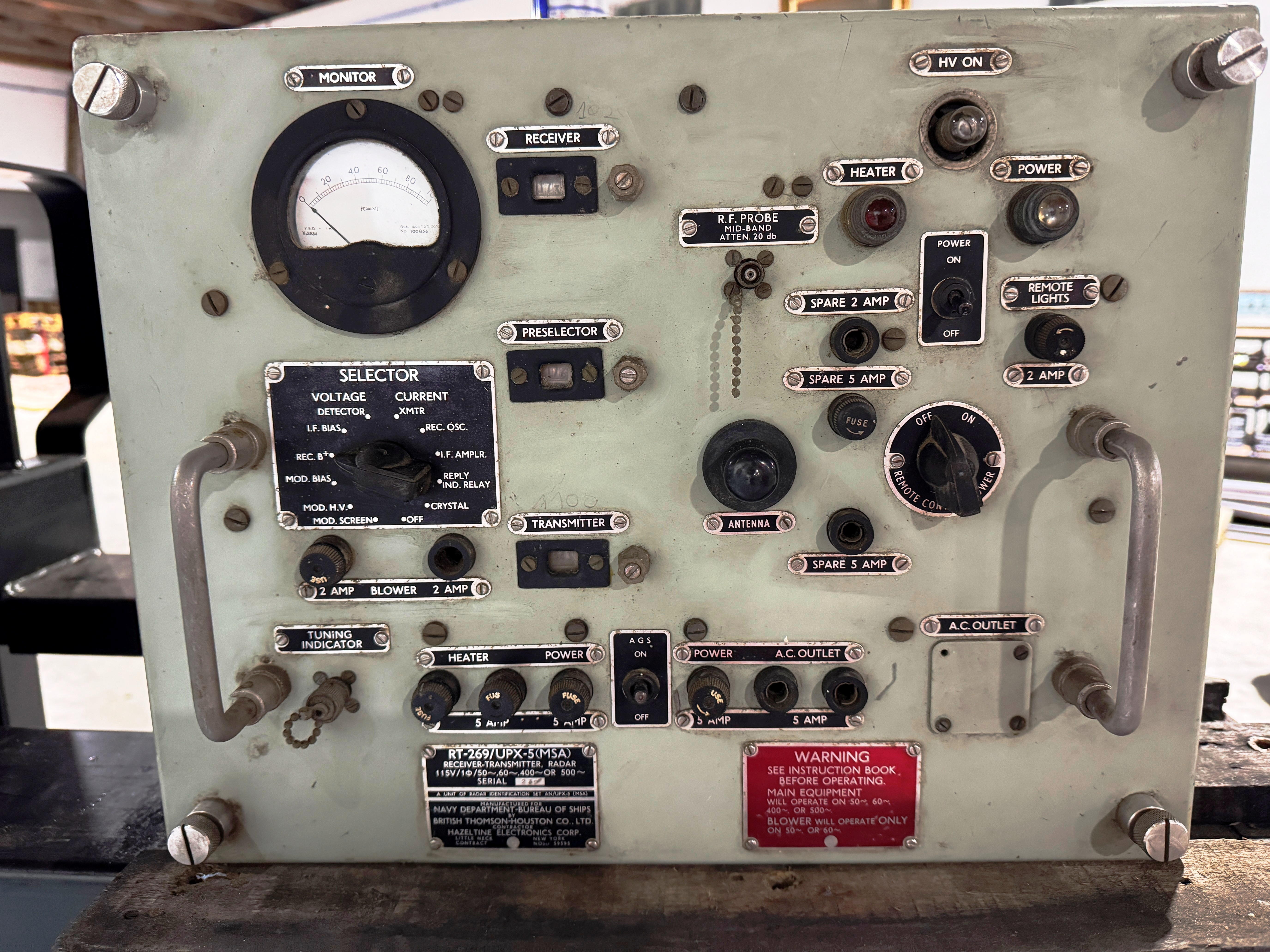

RT-269/UPX-5.rceiver and transmitter.  USN Ref - 98579,98825. Power draw is 158 watts during operation.. Circa 1956. Click on image to enlarge, (Photo by Serge Margoulies)

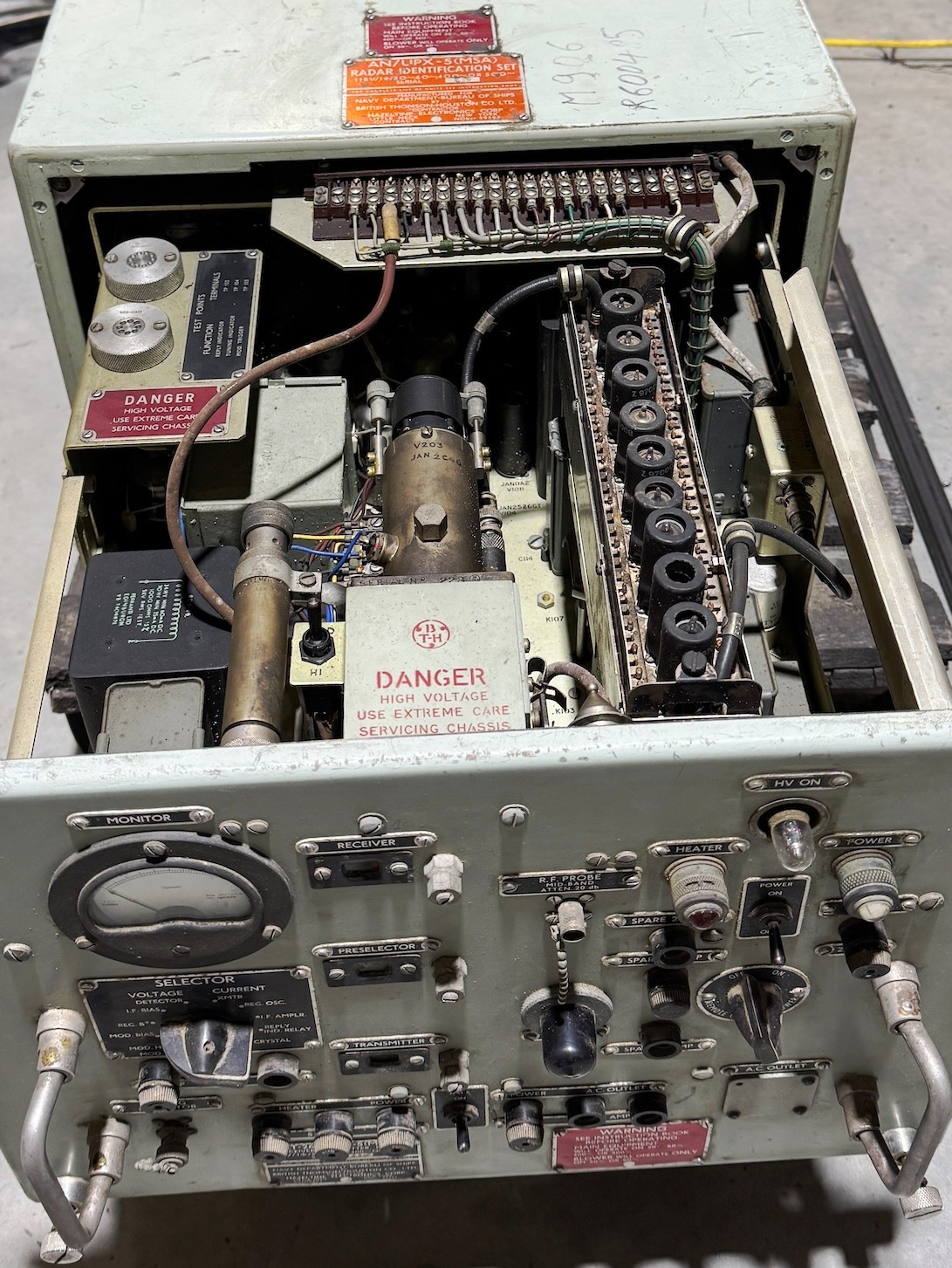

RT-269/UPX-5  internal view. Click on image to enlarge. General Electric built 823 UPX-5 systems.(Photo by Serge Margoulies)  Receiver-Transmitter RT-269/ UPX-5 contains the modulator,power supply, meter circuits, and two subassemblies: - the  RF Head Z212 and IF Amplifier U301. The receiver-transmitter circuits perform the following functions: they receive, amplify, and detect challenging pulses, feeding them to the Decoder KY-88/UPX-5, and they generate R-F reply pulses in accordance with the modulator triggers sup-plied by Decoder KY-88/UPX-5. All interconnections to the RT- 269/UPX 5 are made with cables which connect to terminal boards within the cabinet.

The RT-269/ UPX-5 transmitter/receiver built by General Electric and illustrated in  NAVSHIPS 911836(A)

This is the British version of the KY88/UPX-5 /decoder.  BTH stands for British Thomson-Houston located  in Rugby, England.

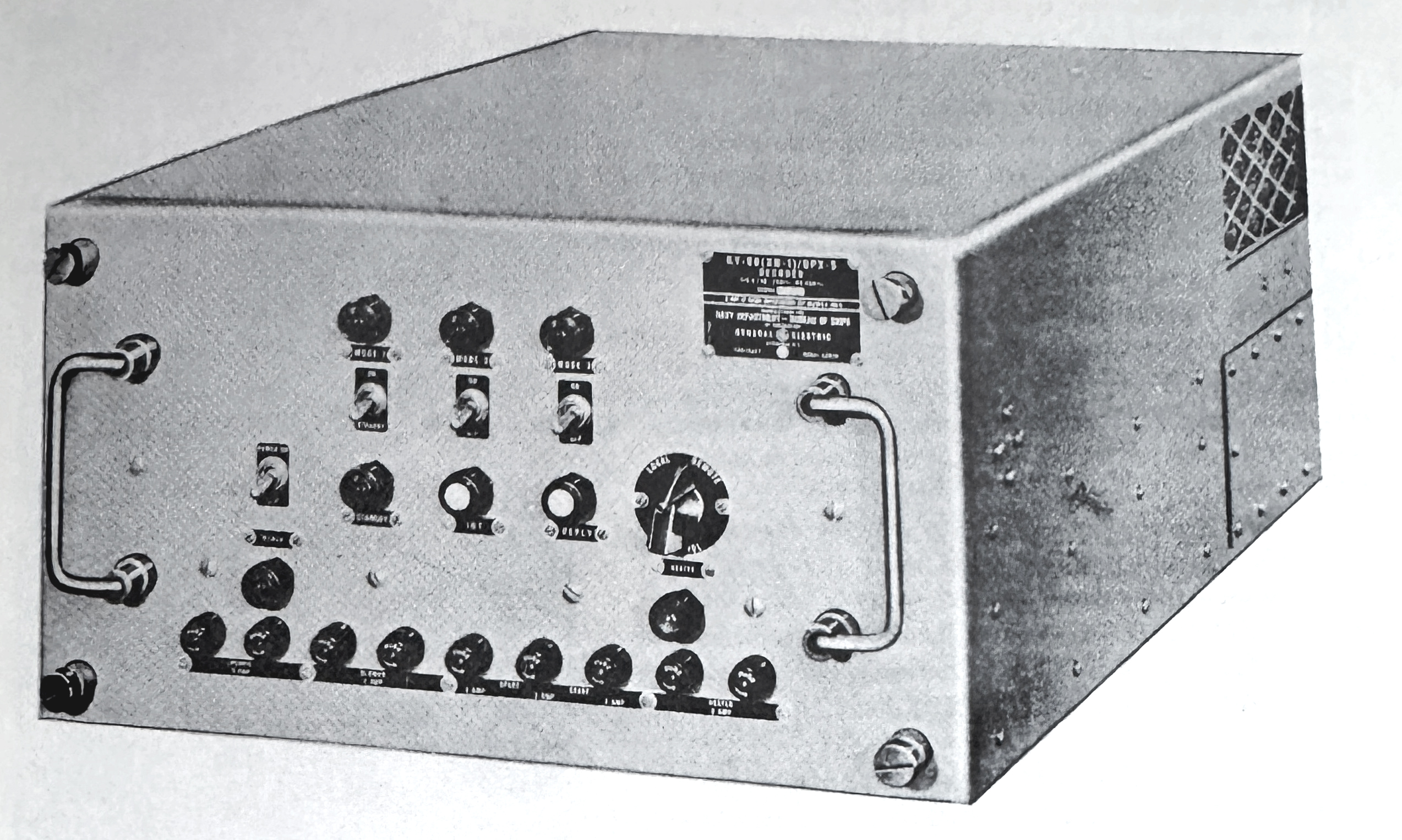

This is the version of the KY88 built by General Electric.and found im  NAVSHIPS 911836(A) The KY88/UPX-5 consists of a panel and chassis on which are mounted a power supply, and the circuits necessary to perform the following functions: amplify and shape the output pulses of the IF amplifier; de-code the paired-pulse interrogation signals, accepting paired pulses of the proper characteristics, and reject-ing certain types of undesired received signals; initiate the reply signal upon the acceptance of a proper inter-rogation signal; and pre-amplify the blocking-oscillator output before delivering it to the modulator circuit in the Receiver-Transmitter RT-269/UPX-5. All interconnections to Decoder KY-88/UPX-5 are made through cables attached to terminal strips located in the cabinet. Removable panels permit cable entrance through either side, the rear, or the bottom of the cabinet

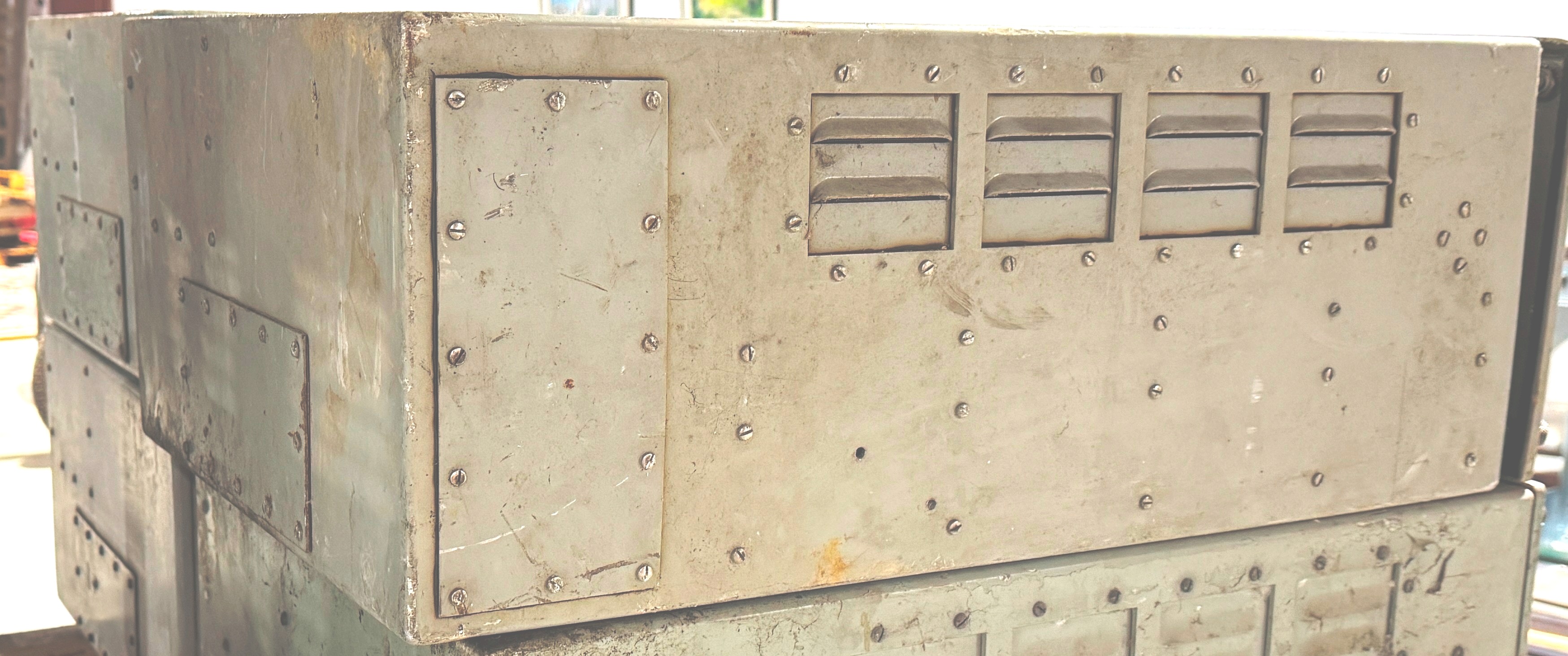

KY88/UPX-5 side and  rear views. Removable plates permit cable entrance through bottom , rear or either side of the cabinet. .

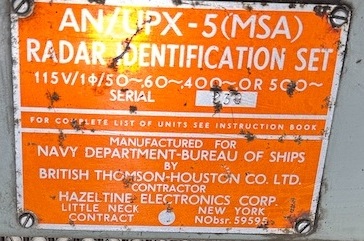

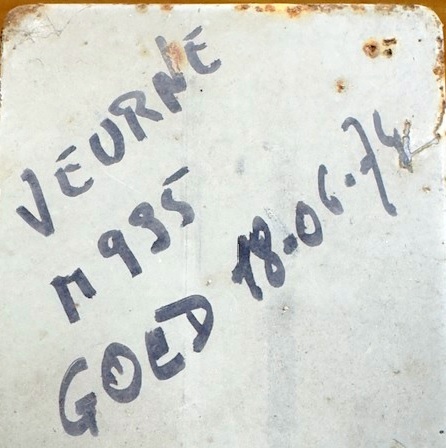

These markings appear on the UPX-5/KY-88 featured in this web page. M935,  – GOED – 18-06-74” refers to the Belgian coastal minesweeper “M935 VEURNE.” This reference suggests that this radar transponder was used aboard this vessel. Veurne is a city near the sea in Belgium, with a military base. GOED means “good” in Flemish, the Belgium language in that area.The last is the all-important date of 18-06-74 , which establishes its vintage to be 1974.

All photos in this table  by Serge Margoulies.

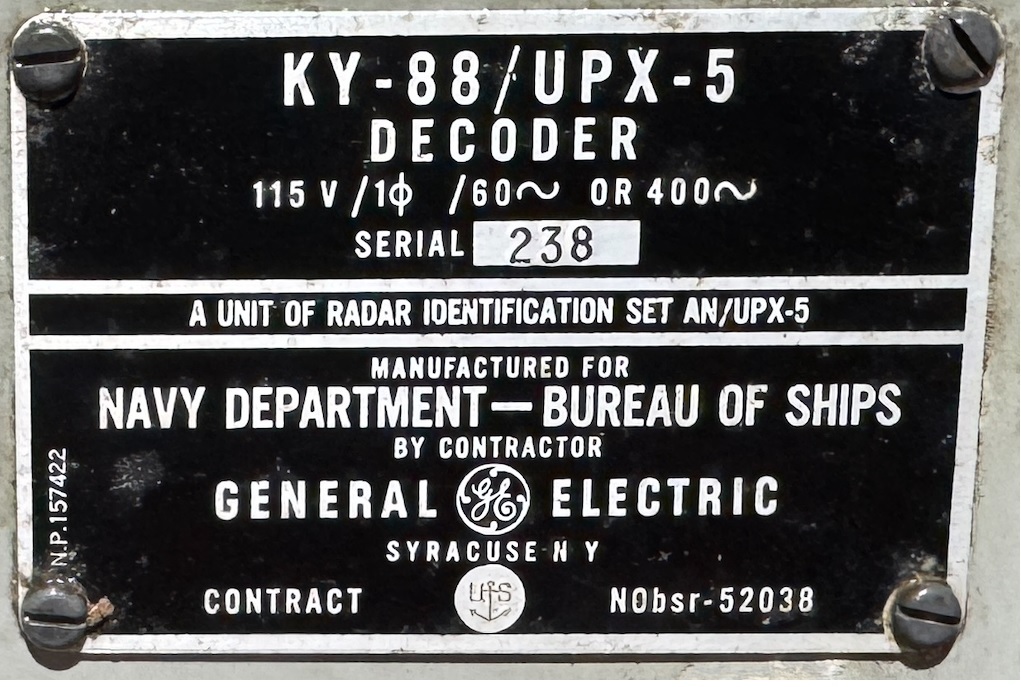

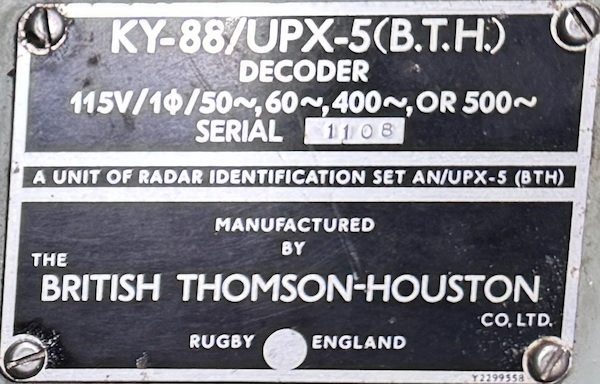

General Electric nameplate for the KY-88 decoder. . Circa:1950  Draws 240 watts of power when operating.	MSA (1951-1953) means  Mutual Security Agency. The Hazelttine Corp was the designer of the equipment.	BTH nameplate for the UPX-5 system.
All photos in this table  by Serge Margoulies.

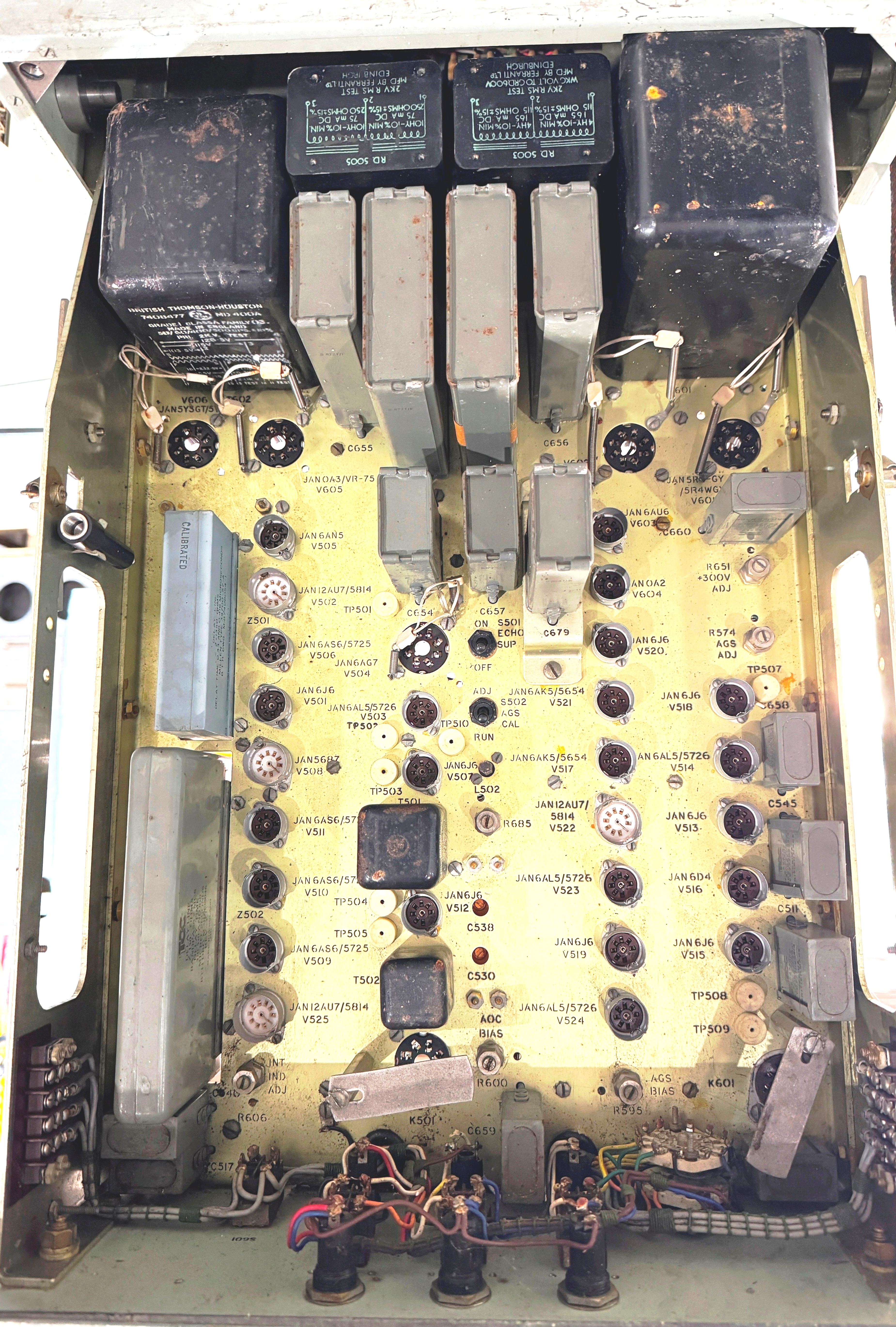

KY88/ UPX-5. Top view of chassis made by Thomson Houston. All the tubes are missing.  Click on image to enlarge.

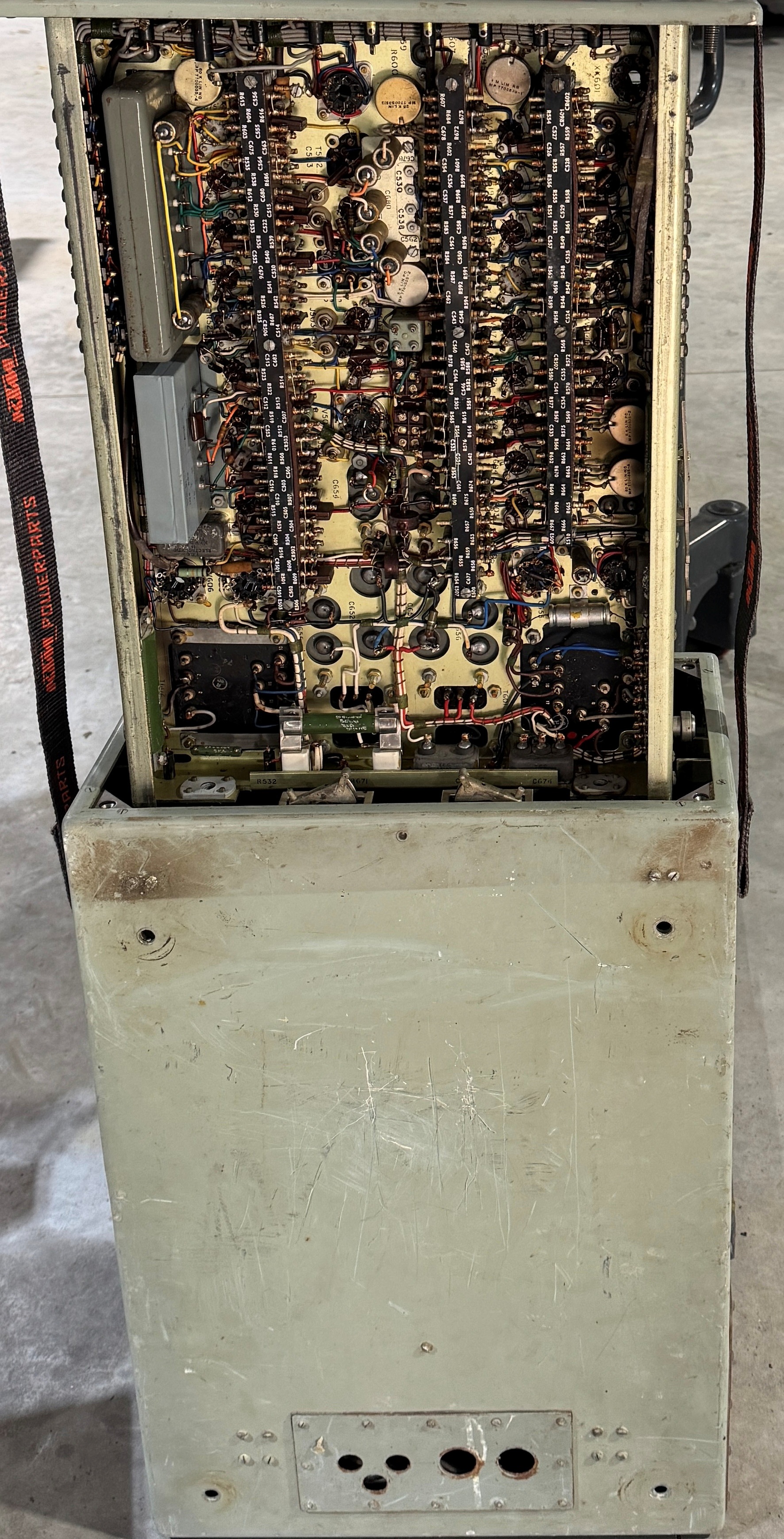

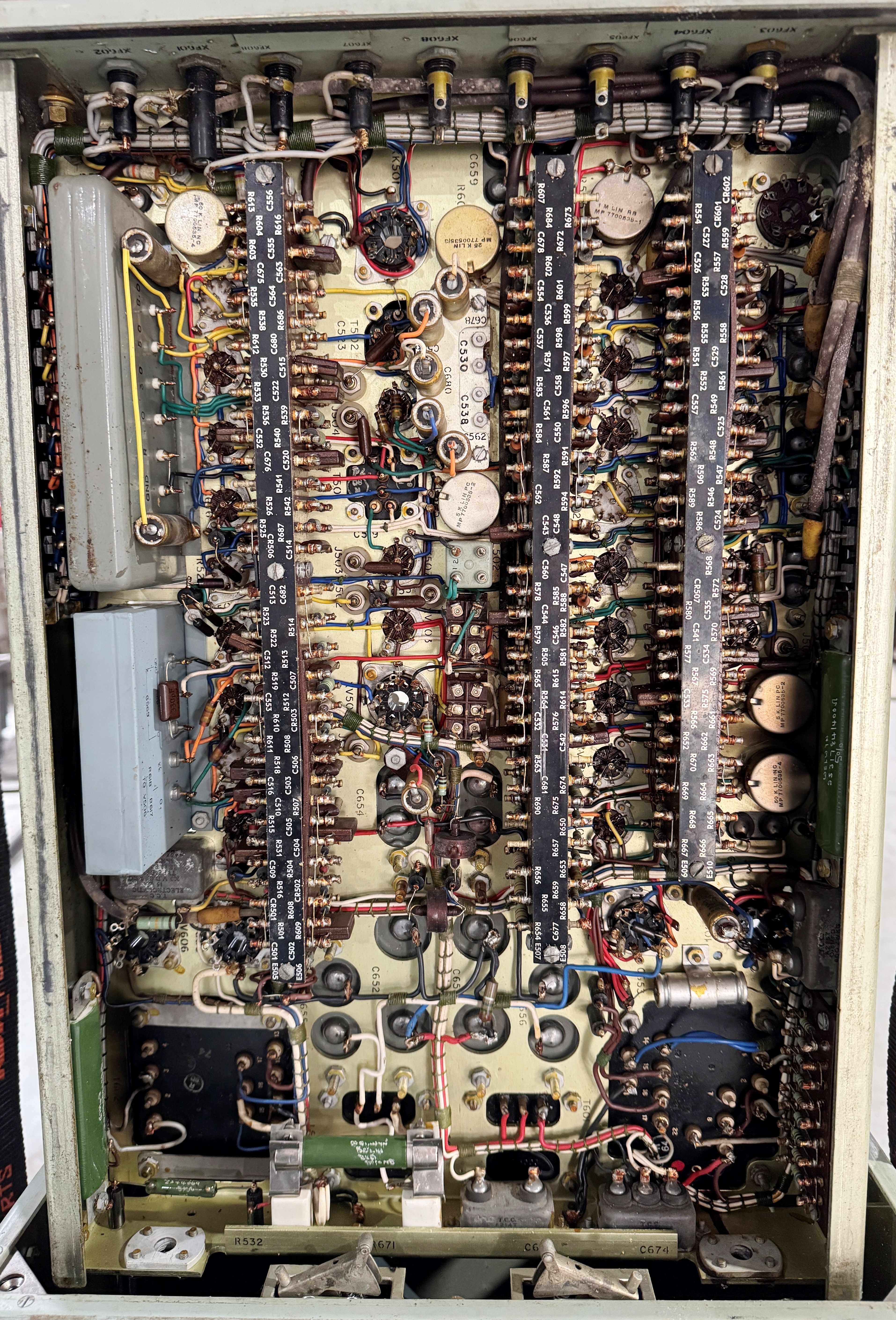

KY88/ UPX-5.Decoder -  Bottom  view of chassis. Made by Thomson Houston. Click on image to enlarge.

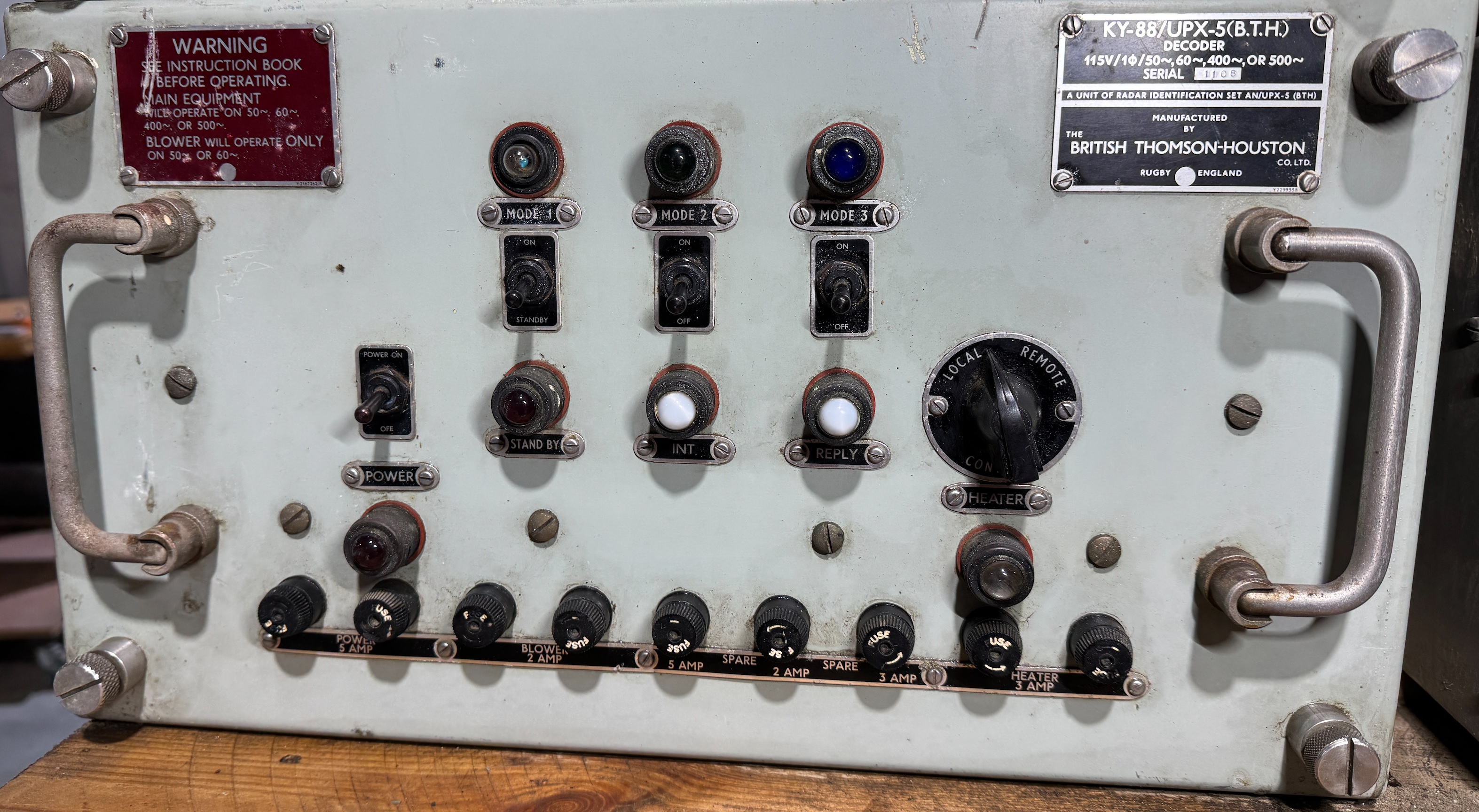

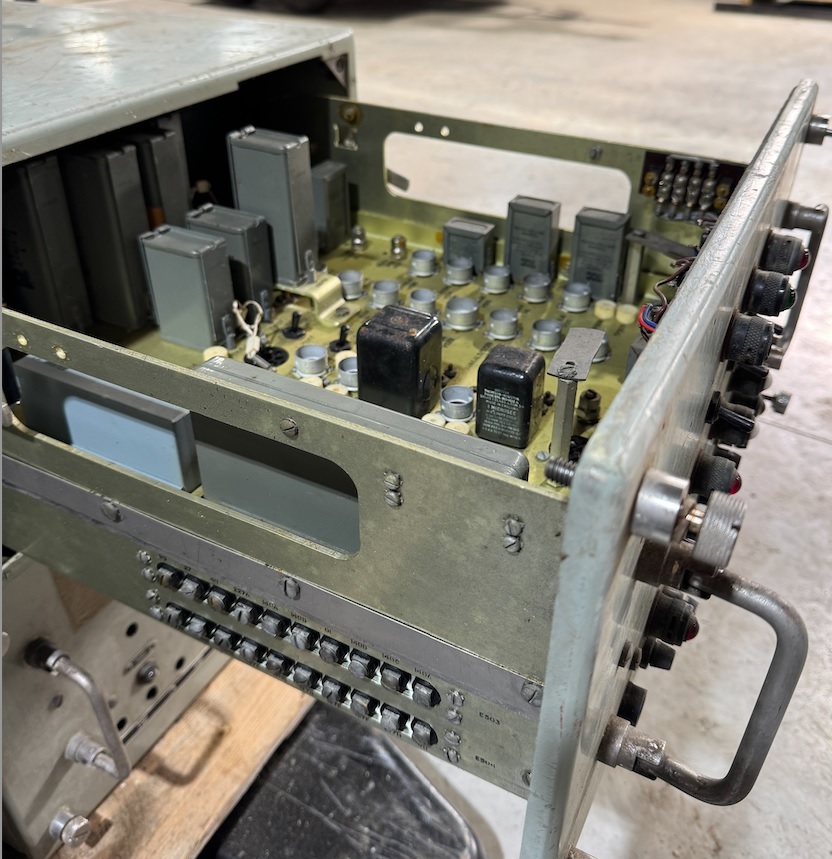

KY88 UPX5  (BTH version) which shows the connection screw location.

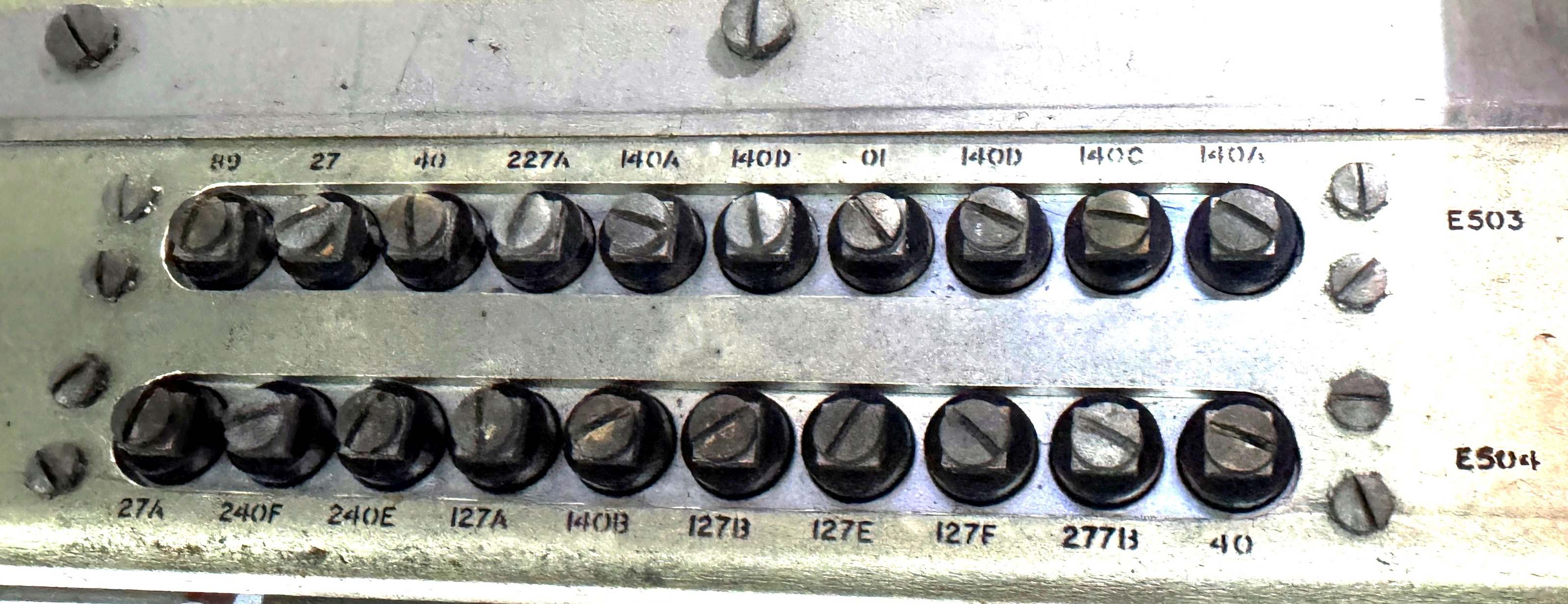

KY88/ UPX-5. - Closeup of the connection screws.

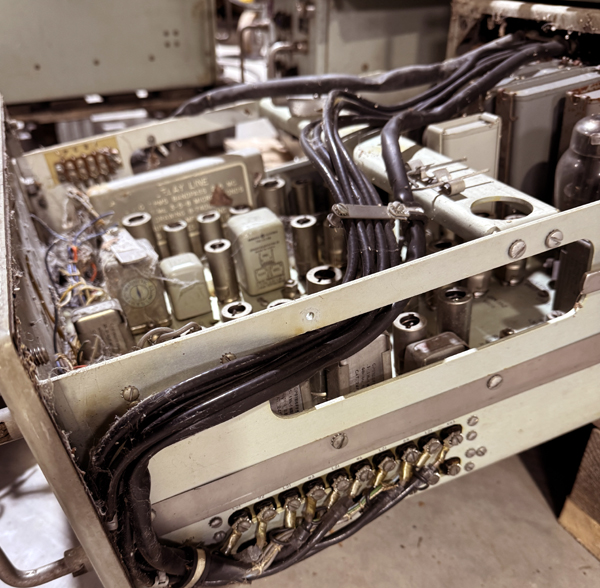

KY88/UPX-5  In reference to the General Electric version of the KY88, this view shows the interconnecting cable harness  from the screw block to the rear of the unit. . The interconnecting cable between the RT-269 and the KY-88 cannot be longer that 20 feet.

KY88/UPX-5. Bottom view of cabinet with chassis extended. Made by Thomson Huston. Note the openings at the centre bottom of the cabinet for the power and signal cables on this particular cabinet. . The four holes near the corners of the cabinet are for the shock mounts.

The blower motor can only run on a 50 or 60 Hz power source. When running on 50 Hz, the blades will rotate at a slightly slower speed than on 60 Hz. This nameplate was affixed to the KY88 built by BTH. Heaters are provided to maintain temperature control and prevent moisture damage during the time the equipment is turned off. These heaters are  in operation whenever the RT-269 transmitter/receiver  power plug is inserted into a live power outlet. When the power switch is thrown to the on position , the heaters shut off and a steady drying temperature is maintained through the use of a blower which dissipates the heat generated by the tubes.

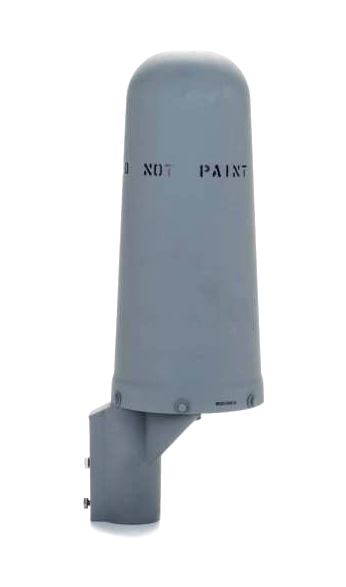

Omni directional IFF. This is the AS-177  antenna for the UPX-5 .It radiates signals onmi directionally to all challenging signals. 1030-1090 MHz. Nominal impedance is 50 ohms. General Electric built 1,123 such antennae for the USN. .  (Image via RAMI).

Above and below: Internal views of the AS-177 antenna. Click on image to enlarge. (Via E-bay.com)

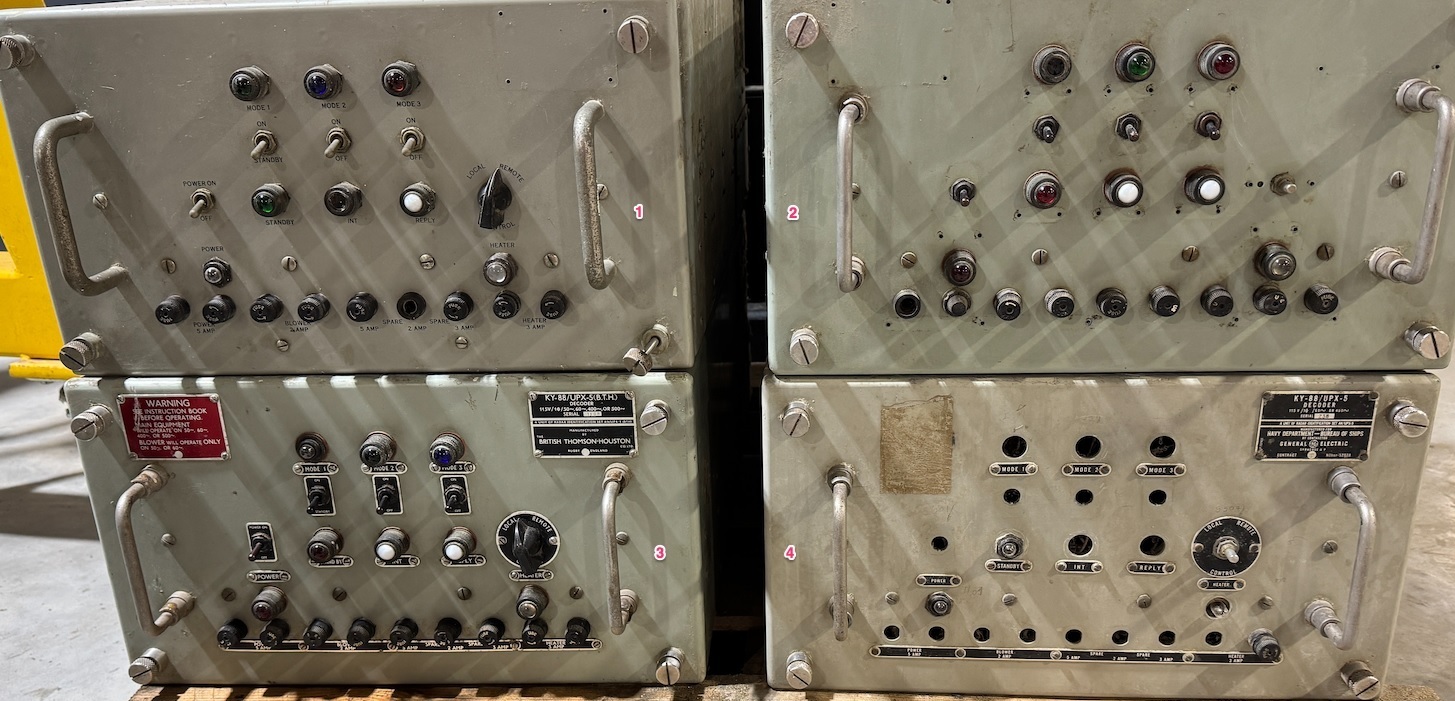

KY88 group photo. Made by General Electric or British Thomson Huston, these are probably the last surviving examples of their kind. Click on image to enlarge. The unit at the right bottom has been stripped of switches, indicator lights and fuse holders.  IFF gear sold as surplus had little value except for components.

Unless noted otherwise,, all KY-88 / UPX-5 photos in this table are by Serge Margoulies.

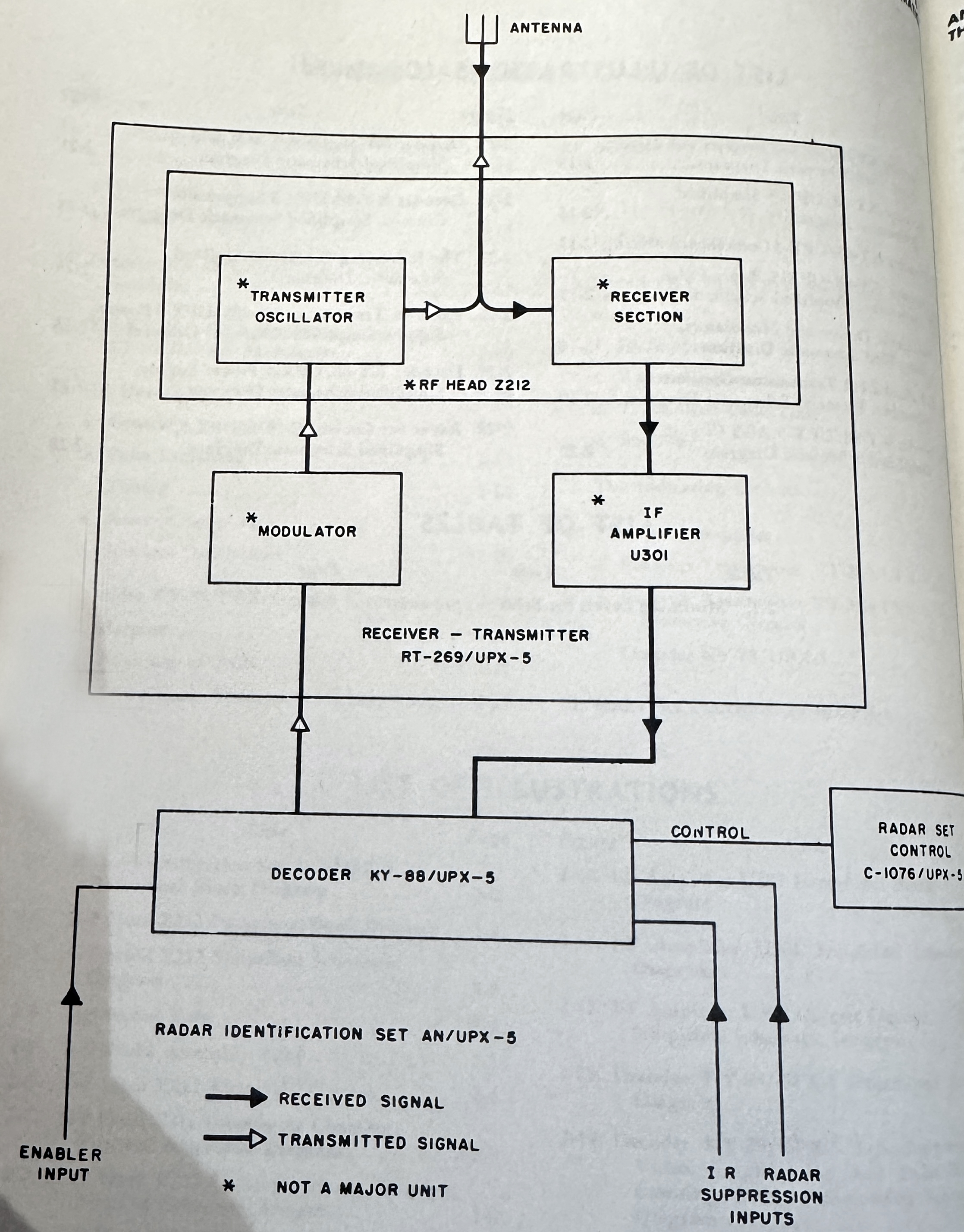

UPX-5 block diagram of system Click on image to   enlarge.. (via NAVSHIPS 911836(A).

UPX-5 system showing signal names. Click on image to enlarge. ((via NAVSHIPS 911836(A).

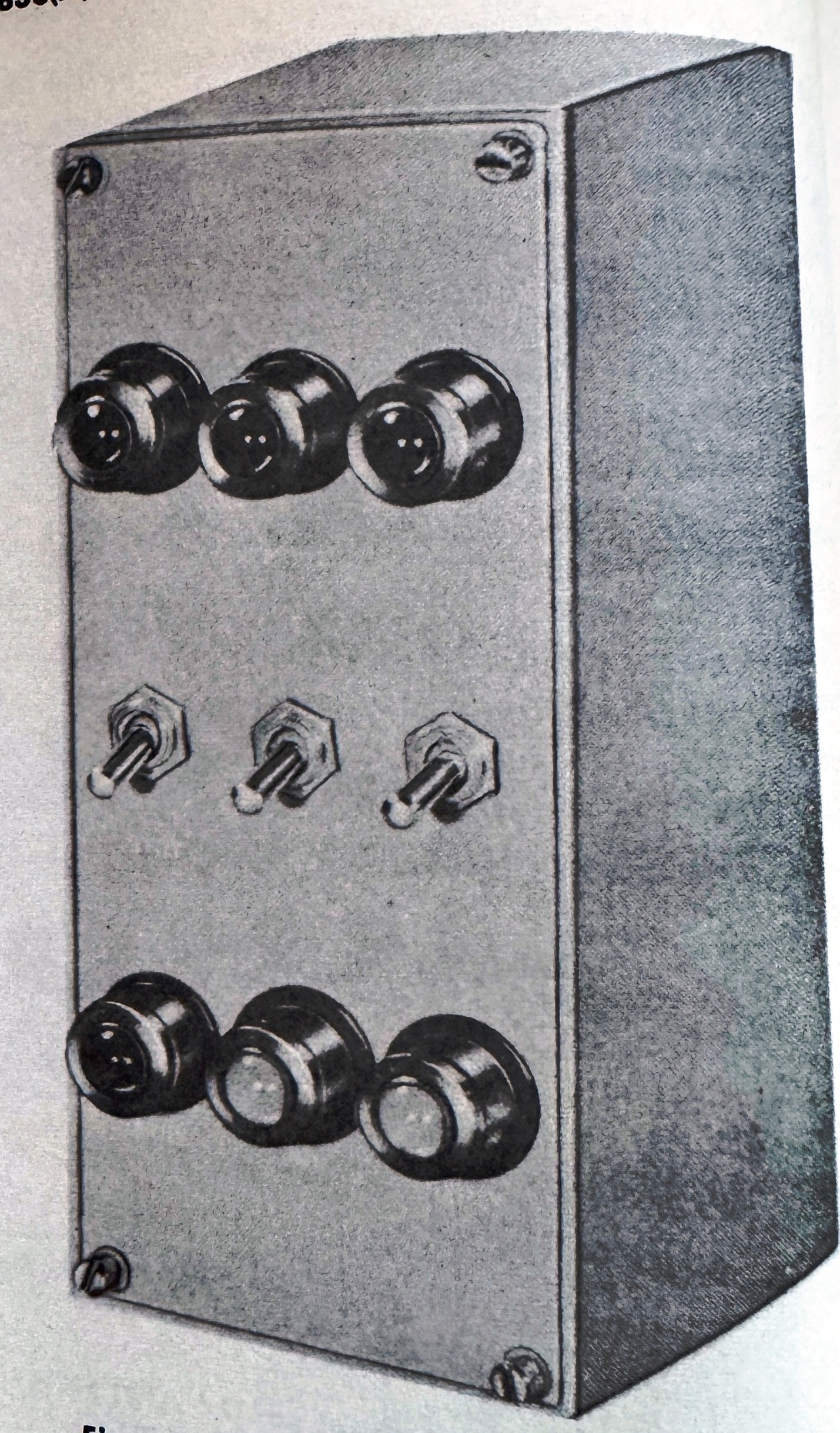

Radar Set Control C-1076/UPX-5 is a control box designed to select modes and monitor the operation of the AN/UPX-5 at a remote point. Main power must be controlled at the main equipment. All interconnections to the control box are made to terminal strips located on the chassis. Knock-out plugs in the case permit cable entrance from various directions. Since the operating modes can be selected on the front panel of the KY-88, the remote control is an optional item. Three mode selector switches (S801, S802, and S803) are located on the front panel. In the STBY position, the MODE 1 switch places the equipment on standby. Mode 1 must be on before either mode 2 or mode 3 can be used. Nine pilot lamps are included in the control box, three to indicate mode operation, one to indicate when the equipment is in standby position, one to indi-cate when the equipment is being interrogated (marked INT) , one REPLY lamp to indicate when the AN/UPX-5 is replying, and three panel illuminating lamps. Remote control can be exercised only when the Decoder KY-88/UPX-5 LOCAL-REMOTE switch is in REMOTE position and the Receiver-Transmitter RT-269/UPX-5 REMOTE-CONTROL-POWER switch is ON. The three illuminating lamps in mentioned in  the manual are nowhere to be found. (via NAVSHIPS 911836(A).

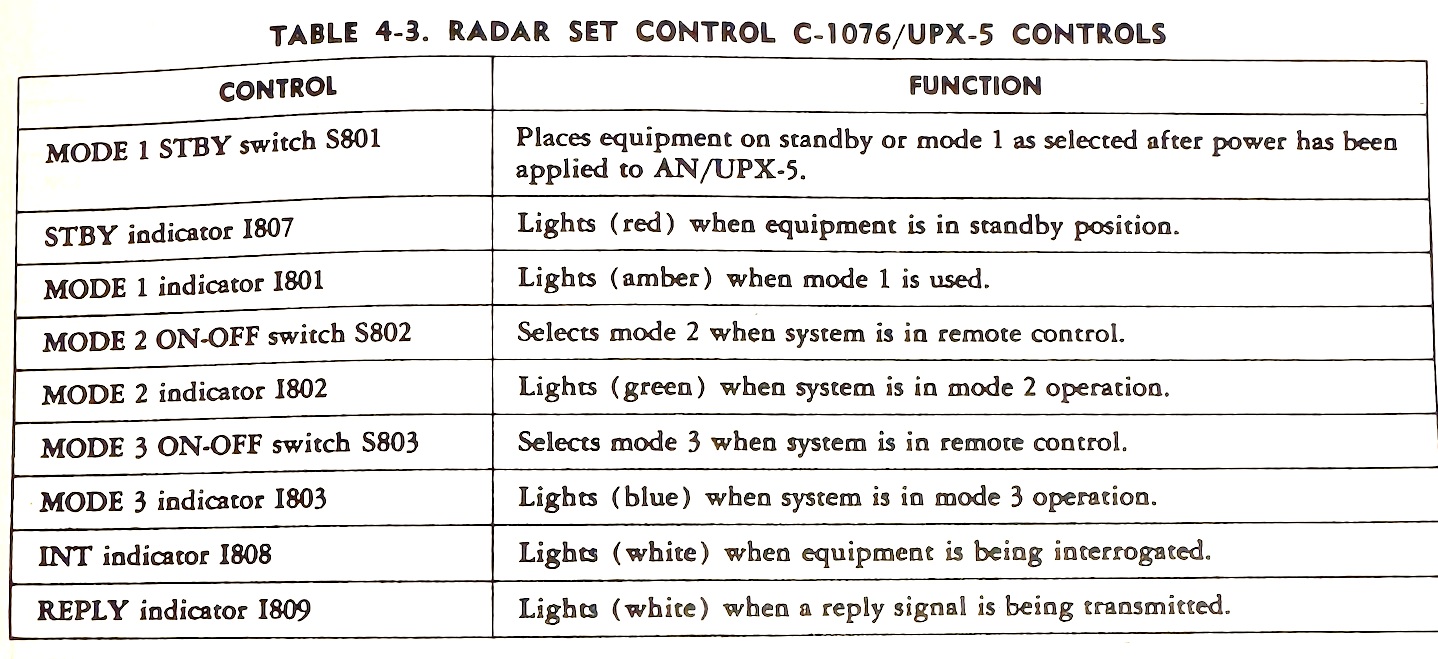

Controls and indicators on the C1076  Control Box. These modes are circa 1950s. (via NAVSHIPS 911836(A).

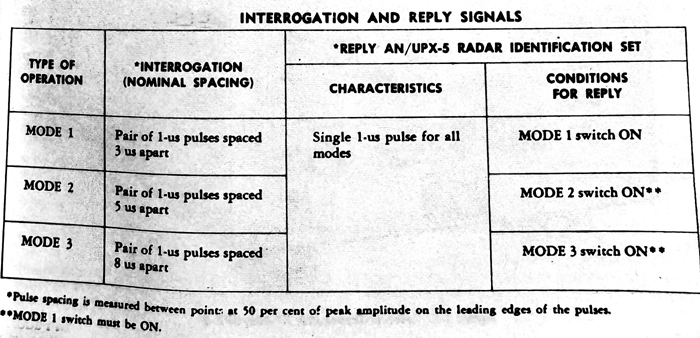

UPX-5 - Interrogation and Reply pulse spacing. (via NAVSHIPS 911836(A).

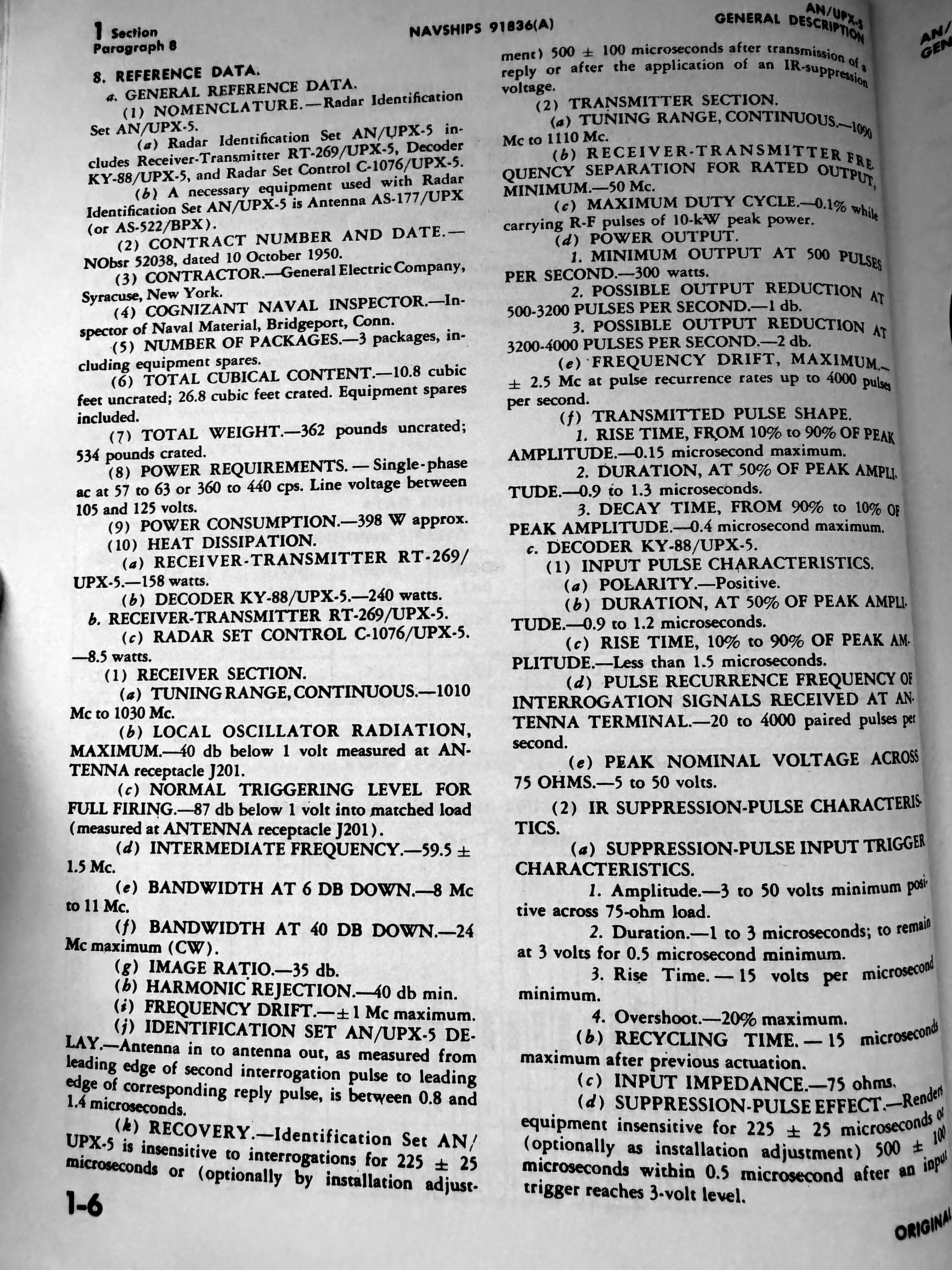

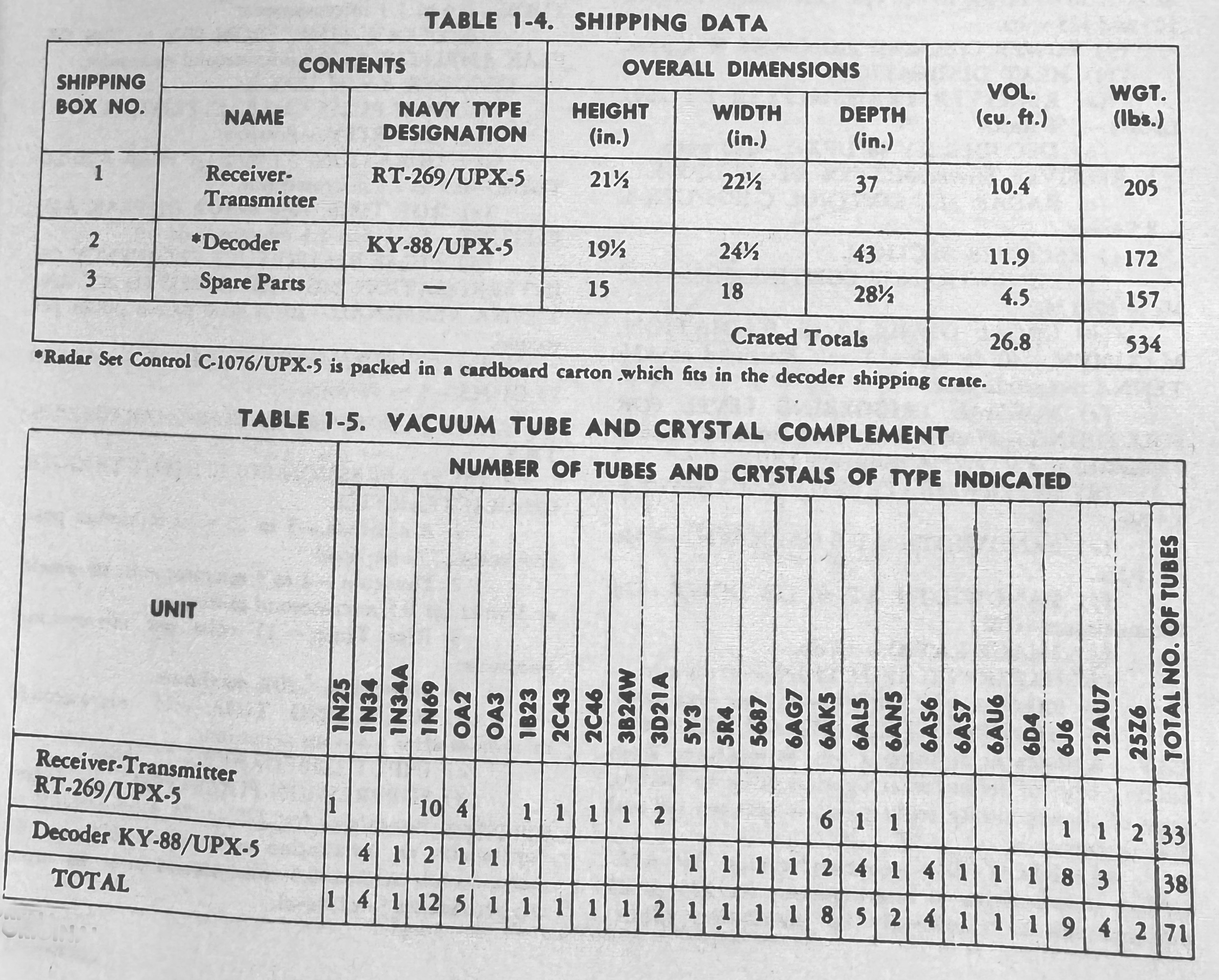

UPX- system: :  Dimensions, weights and tube complement for the RT269 and KY88 devices. (via NAVSHIPS 911836(A).

This is the signal interconnection diagram for the UPX-5 system. The remote  control box is optional. The KY-88 gets its primary AC power from a daisychained connection on the RT-269 thus allowing both units to be powered down with a single switch. .( via NAVSHIPS 911836(A).

KY-136/UPA-38

A unit of coder group AN/UPA-38. Not fitted in HMCS  HAIDA. (Photo courtesy Destroyer Escort Central page,  http://www.de220.com)



KY-200/UPX-12

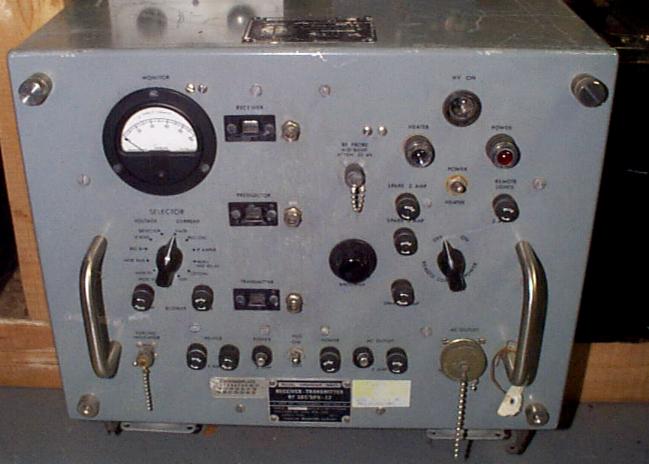

The KY-200/UPX-12 was a unit of transponder set AN/UPX-12. Not fitted in HMCS HAIDA but used by the RCN. Very similar to the UPX-1 except for the handles and the left side of the panel below the meter.  (Photo by Richard Brisson - used with permission)

AN/UPM-99

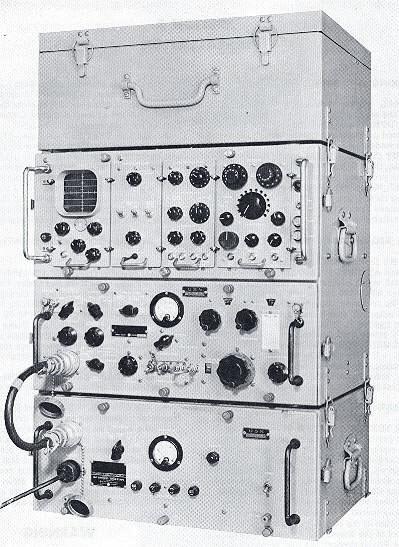

From bottom to top: PP-2391 Power Supply; SM-189/UPM99 Code Simulator ; TS-1253-UP Radar Test Set; CY-1156/UPM-4 Accessory Box. The TS-1253 unit can function separately since it has an internal power supply and incorporates the functions of a precision oscilloscope and SlF code generator.

Radar Test Set AN/UPM-99 is designed for testing and performing corrective maintenance on IFF equipment of both the Mark X and SIF (Selective Identification Feature) type. It can also be used for making various tests required for maintenance of other radar equipment operating within the 925 to 1225 MHz frequency range.

The entire test set incorporates 88 vacuum tubes and 72 solid state diodes and was introduced in 1960. it was intended for HMCS HAIDA but was never fitted.


Modern day  IFF systems are basically Question/Answer systems. An interrogator system sends out a coded radio signal that asks any number of queries, including: Who are you? The interrogator system is frequently associated with a primary radar installation, but it may also be installed aboard a ship or another airplane. The interrogation code or challenge, as it is called, is received by an electronic system known as a transponder that is aboard the target aircraft. If the transponder receives the proper electronic code from an interrogator, it automatically transmits the requested identification back to the interrogating radar. Because it was developed as an adjunct to the primary echo-type detection radar and is usually used in conjunction with a primary radar, the IFF system is also known as secondary radar.

Modern IFF is a two channel system, with one frequency (1030 MHz) used for the interrogating signals and another (1090 MHz) for the reply. The system is further broken down into four modes of operation, two for both military and civilian aircraft and two strictly for military use.

Each mode of operation elicits a specific type of information from the aircraft that is being challenged.

Mode 1, which has 64 reply codes, is used in military air traffic control to determine what type of aircraft is answering or what type of mission it is on.

Mode 2, also only for military use, requests the "tail number" that identifies a particular aircraft. There are 4096 possible reply codes in this mode.

Mode 3/A is the standard air traffic control mode. It is used internationally, in conjunction with the automatic altitude reporting mode (Mode C), to provide positive control of all aircraft flying under instrument flight rules. Such aircraft are assigned unique mode3/A codes by the airport departure controller. General aviation aircraft flying under visual flight rules are not under constant positive control, and such aircraft use a common Mode 3/A code of 1200. In either case, the assigned code number is manually entered into the transponder control unit by the pilot or a crew member.

Altitude information is provided to the transponder by the aircraft's air data computer in increments of 100 feet. When interrogated in Mode C, the transponder automatically replies with the aircraft altitude. Ground interrogators normally interlace modes by alternately sending Mode 3/A and Mode C challenges thus receiving continuous identity and altitude data from the controlled aircraft.

A timing diagram which shows the timing of the pulses for various IFF modes. (Graphic courtesy Litton Systems)

The code signal sent by the interrogator system consists of two pulses spaced at a precisely defined interval. (A third pulse that has nothing to do with the coding of the query is actually used for interference suppression reasons.) In Mode 1, the interval between the first and last pulse is 3 microseconds; in Mode 2, it is five microseconds; in Mode 3/A, it is eight microseconds; and, in Mode C, it is 21 microseconds. The airborne transponder contains circuitry that discriminates between these various timings and automatically sends back the desired reply.

The transponder replies are also in the form of a pulse, though in this case, there are 12 information pulses that are digitally coded as "ones" and "zeros." The total number of reply code combinations therefore, is 4,096. The reply codes are entered by means of four code wheels on the transponder control unit. The reply pulses generated by the transponder are decoded by the interrogating system and are typically displayed as needed on the primary radar scope near the blip that represents the aircraft that has been challenged. Thus, the aircraft controller can monitor the track of each aircraft through his zone and know its identity, altitude and position at all times.

The original reason for IFF systems came about was to identify friendly forces in a battlefield environment. For that reason, it is essential that hostile forces not be able to use the system to identify themselves as friendly even if the physical IFF equipment should fall into their hands.

The secure mode is used exclusively for military purposes. This mode uses a very long challenge word which contains a preamble that tells the transponder it is about to receive a secure message. The challenge itself is encrypted at the interrogator by a separate device that uses various mathematical algorithms to put it in a secure form. The transponder routes the ensuing challenge to a separate device that uses the inverse algorithms to decode the challenge. In effect, each challenge is telling the transponder to respond in a certain way. If the transponder cannot decipher the challenge, it will not be able to respond in the proper way and thus will not be identified as a friend.

To prevent unauthorized use of either the interrogation equipment or the transponders if they should fall into hostile hands, a key code must be periodically entered into each device. To eliminate the chance of a random guess by a hostile target corresponding with the proper response, each identification consists of a rapid series of challenges each requiring a different response that must be correct before the target is confirmed as a friend. A very high degree of security to the identification system is ensured through the use of key codes and powerful cryptographic techniques.

[Acknowledgments to Litton Systems the information on modern day IFF].

UPDATE

Question to Chargpt:
Can an adversary spoof mode 2 or 3 IFF signals?

Chargpt said:
Yes, an adversary can spoof Mode 2 or Mode 3 Identification Friend or Foe (IFF) signals, though the difficulty varies based on encryption and authentication measures in place.

Mode 2 and Mode 3 IFF Overview:

Mode 2: Used primarily by military aircraft and ships, providing a unique, unencrypted four-digit octal code for identification.
Mode 3/A: Used in both military and civilian aviation, also transmitting a four-digit octal code for air traffic control purposes.

Spoofing Feasibility:
Unencrypted Transmission:

Both Mode 2 and Mode 3/A operate using unencrypted signals in the 1030 MHz (interrogation) and 1090 MHz (response) frequencies.This makes them vulnerable to electronic warfare tactics such as spoofing, where an adversary can transmit false responses to an interrogation.

Replay Attacks:

Since Mode 2 and Mode 3/A are not cryptographically secured, an adversary could record legitimate IFF responses and rebroadcast them to mislead interrogators.

Active Signal Injection:

A sophisticated adversary could generate fake Mode 2 or Mode 3 responses using readily available transponder equipment and SDR (Software-Defined Radio) technology.This could deceive radar operators by making an aircraft appear as a friendly unit or obscure its actual location.

Countermeasures:
Mode 4 & Mode 5. :Mode 4 has been decertified as of June 30/2020.

Military aircraft use Mode 4 and Mode 5, which incorporate cryptographic authentication to prevent spoofing.
Mode 5, in particular, uses encrypted challenge-response mechanisms to verify friendly aircraft, making it much harder to spoof than Mode 2 or 3.

Enhanced Radar and Multi-Sensor Fusion:

Integrating IFF data with other surveillance systems (e.g., radar cross-section analysis, ADS-B, AWACS, or passive RF detection) can help detect inconsistencies in spoofed signals.

Behavioral & Procedural Verification:

Controllers and radar operators can cross-check reported IFF codes against known flight plans and operational patterns to identify anomalies.

Conclusion:
While Mode 2 and Mode 3/A can be spoofed due to their lack of encryption, modern militaries rely on Mode 4 and Mode 5 for secure identification, reducing the risk of successful spoofing in critical operations. However, adversaries with electronic warfare capabilities could still exploit these older modes in environments where legacy systems are in use.
