B24 AIRCRAFT RADIO SYSTEMS
Many collectors have never seen their 'Boatanchors' in their
original habitat. I have taken the liberty of scanning some pertinent
sections from the B24 Liberator - Radio Systems Manual dated 1943 to illustrate
just one of many environments. All photos are full size, JPG format.
B24D Radio Fitting (Listing - Text)
BC 221-D Frequency Meter
BC 221/SCR211 Frequency Meter Calibration
Method

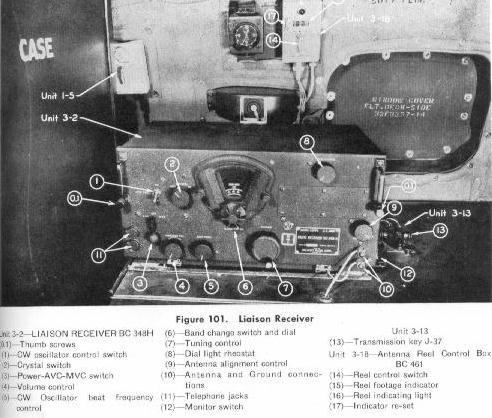

BC 348 Liason Receiver

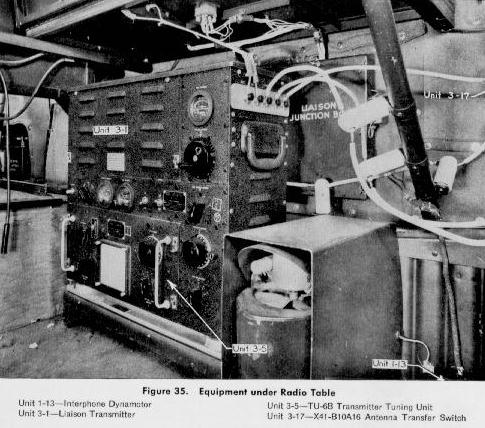

BC 375 Liason Transmitter

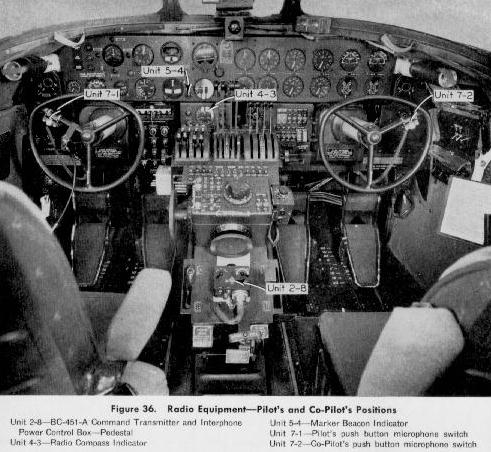

Cockpit Radio Controls
Command Radio System

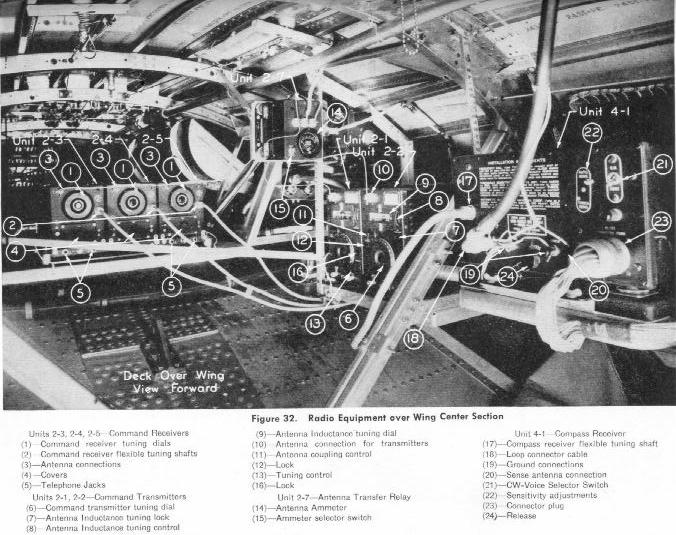

Command Radios Over the Center Wing Section

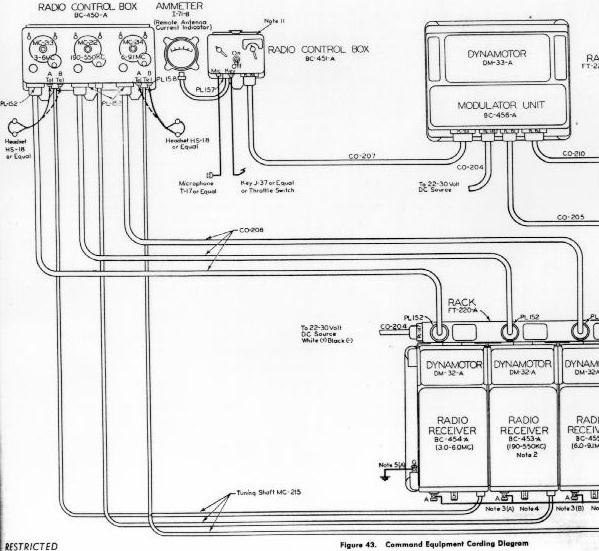

Command Set Cordage Diagram
Interphone System

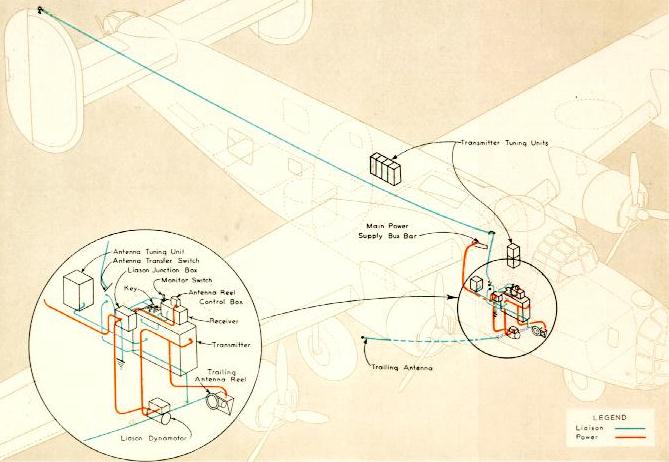

Liason Radio System

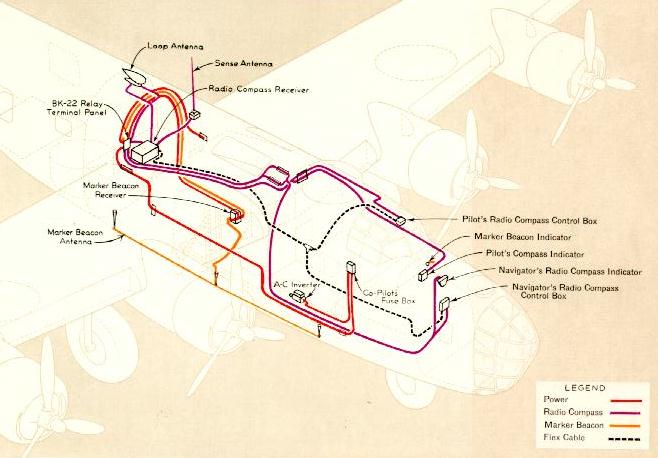

Radio Compass and Marker Beacon System
Radio Compass Installation
