ROYAL YACHT (HMY) BRITANNIA -
UK PRC320

SPECIFICATIONS:

Frequency Range: 2 - 29.999 MHz
Output Power: 30 or 3 W AM: 7.5 W
Channel Spacing: 100 Hz
Number of Channels: 280,000
Modes of Operation: USB, AM, CW wide (2900 Hz), CW narrow ( 400 Hz)
Sensitivity: SSB / CW Narrow 1.7ÁV @ 20 dB AM 7.5 ÁV @ 20 dB
Power Requirements: 20-28 VDC
Power consumption: Receiving 175 mA Low HF output 1.2 A High HF output
Battery: 24 V NiCad

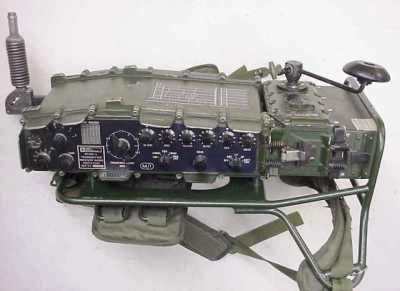

UK PRC320 (Photo courtesy Green Radio web site)

CREDITS or REFERENCES

1) PRC320 specs -  https://armyradio.com/Clansman-RT-320---PRC-320-30-Watt-HF-Transceiver.html
2) PRC320 photo  - http://www.greenradio.de/e_prc320.htm
