MOUNT DOUGLAS , BC.  VHF/DF


As a result of being asked to identify a concrete structure at Mount Douglas Park in British Columbia, the ensuing research effort unearthed a WWII era Fighter Control Network. It was previously thought that the remains at Mount Douglas Park were that of a secret WWII High Frequency Direction Finding  station based on old newspaper and city archives that used the term Huff-Duff as well as long term residents terming it "secret". This idea for the site purpose was furthered with the discovery that the Beeston Hill site in the UK looked similar and had similar dimensions. More recent information makes it clear that new information changes the picture.

Starting in 1942 , the RCAF installed and operated a VHF  Direction Finding service atop Mount Douglas, a short distance from wartime Victoria B.C. It was part of a FIghter Control Network whose mission would be to direct fighter aircraft in case of attack by the Japanese. In the 1940s, VHF was considered to be 99 to 156 MHz as noted in the VHF Fighter Control manual, and not 30 to 300 MHz as it is today. Installations which had the capability to perform VHF radio direction finding (VHF/DF)  were called "fixers" .  (When the direction finding station determined the bearing of a signal, it was termed a fix.) The bearings measured by the fixers would sent to a central control point  which had the authority to dispatch fighter aircraft.  So far the remains of two fixer stations have been identified. These are: Mount Douglas and Point No Point,  all in British Columbia.. A much smaller hexagon base was found on Radar Hill near Tofino.

A key element of this defensive system was the centralized Filter Room; the point at which all information was gathered, consolidated and assessed in order to determine how to respond to the threat. Reports of aircraft operating offshore were phoned in from friendly ships, Coast Watchers, radar stations and Air Force Bases. The Filter officer would use experience to decide when a plot would be displayed, and how to label it; friendly or enemy, number, altitude, heading, etc. There were two such Filter Rooms on the West Coast; -one in Vancouver and another in Victoria.
The room for the Victoria area  was known as "No. 2 Filter  Room"  for Western Air Command. So where was the Victoria Filter Room located.? The answer can be found in the story titled "Victoria's Secret" by Doug Rollins, the Librarian/Historian at the BC Aviation Museum

/mount_douglas_radar_coverage_s.jpg Canadian West coast patrol areas and radar coverage in 1944. Click on thumbnail to enlarge. (Provided by Doug Rollins, BC Aviation Museum)

The  story titled " Radar Detachments on the West Coast of Canada" by Chris Weicht, details the problems that were encountered in establishing radar coverage and patrol areas for Western BC.



/mount_douglas_network2.jpg
This is a generic diagram of a VHF fighter control system, The Canadian setup might have been similar to this.   There  were three  "fixer"  stations and one :"Homer" station in the network. The fixer  used the SCR-565 sets with the RC-82 antenna. Fighter Control systems bore the designators of SCS-2, SCS-3 and the Superman System. A magnified version of this network diagram is available here.    (Via VHF Fighter Control manual)
/mount_dougas_patricsa_bay_scr588.jpg
Separate from the Fighter Control Network was a series of sites designed to provide radar coverage for Western British Columbia. Shown here is the SCR-588 Ground Control Intercept (GCI) radar installation  at Patricia Bay taken in October 1942, From left to right: Power House, Operations Building  and the SCR-588 antenna.  Detected targets of interest would be reported to the associated Filter Room as there were three of them . Other radar sites used Chain Home Low (CHL) radar. SCR-588  was the Americanized version of the British CHL/GCI set built by the Canadian company, Research Enterprises Limited.

Range: 105 mi in search mode,  45 mi in GCI mode.
Peak Power: 125 kw
Operating frequency: 209 MHz.

This radar set could be used as both a medium range search radar and as a shorter range GCI radar with height finding capability. (Photo courtesy BC Aviation Museum)

At Mount Douglas, only the octagon pedestal for the DF equipment remains today but two eyewitnesses, namely  Joan Stewart and ,Al Smith, both verified that the installation atop Moumt Douglas appeared  to that of the one installed at Beeston Hill, England. The tower resembled a farm silo and was about 15m high with antennas on top of it.  Recently discovered distant photos clearly show a tall silo structure at the summit.

To obtain a fix on a target, control central would have to apply two or more DF bearings on a map, The point where the  bearings converge is called the fix

Another VHF/DF station at Point No Point, BC. was discovered with identical octagon base dimensions and also photos showing the silo structure. There exists a concrete hexagon pedestal on Radar Hill in Tofino BC, with currently unknown purpose.

/mount_douglas_beeston_hill.jpg /mount_douglas_vhf_df_with_roof.jpg
The VHF/DF system installed at Mount Douglas was similar to the one at Beeston Hill, UK.  British VHF/DF stations monitored  German E-Boats and bombers which used the low VHF band.  (40 to 50 MHz) for communications  (Photo via Wikipedia)

The equipment used for VHF direction finding was typically located atop a  hill in a small octagonal shaped hut.  Operators would intercept and obtain bearings on targets of interest.

Although not applicable to the Mount. Douglas site, this image illustrates a VHF/DF structure with a roof which was  photographed in England,


/mount_douglas_structure.jpg

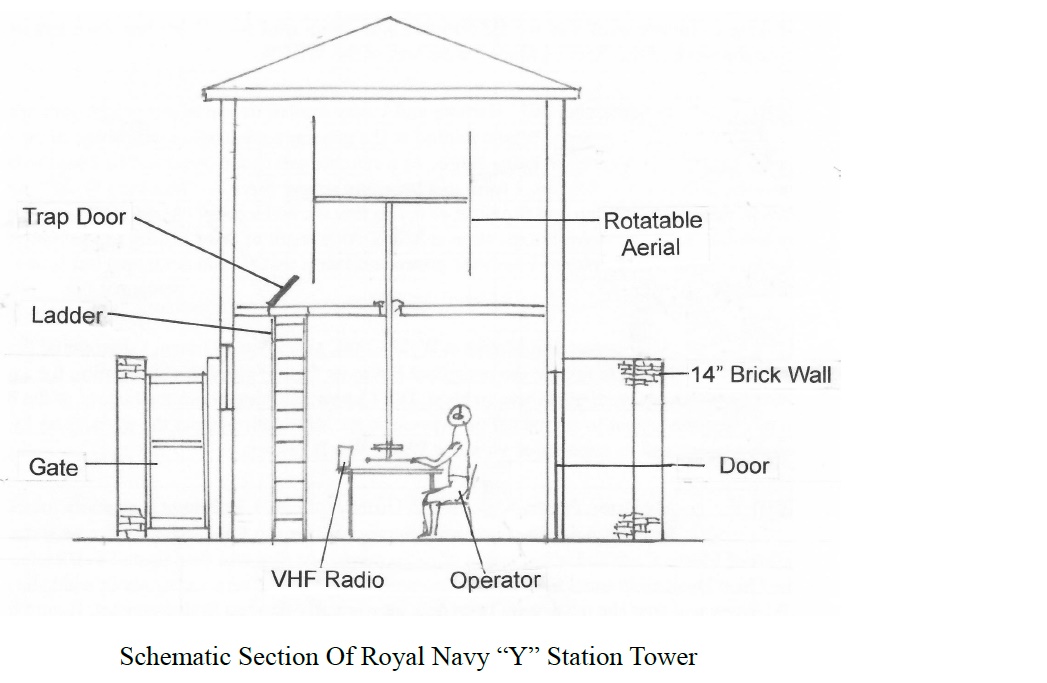

This is a generic, cutaway diagram of a fixer station.. In England , the DF system was used to obtain bearings on German E-boats and aircraft.
/mount_douglas_scr565.jpg

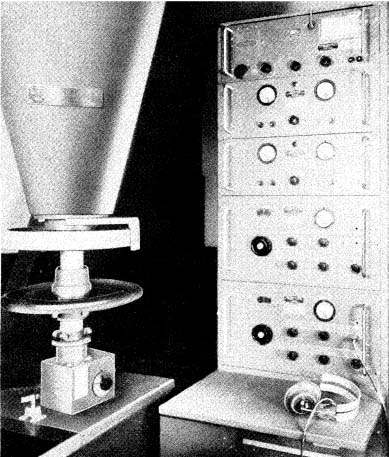

This is the operators position for the SCR-565 VHF/DF system. Two major components are the BC--639 receiver and the lower mast assembly of the  RC-82 antenna. . More detail on these systems can be found in the Fighter Control Manual listed elsewhere in this document. (Fighter Control Manual)

During WWII, "SC" was used to denote a complete system, with one and two-letter suffix designators (such as "BC", for basic component, "FT" for mounting, etc.) were used for components. Only a few system designators were used:

SCM Set, Complete, Meteorological
SCR Set, Complete, Radio
SCS Set, Complete, System

 In this particular installation, the 100 to 156 MHz VHF receiver is the BC-639  The Canadian fixer sites did not have the outboard meter attached to the azimuth scale.  That is part of  RC -153 antenna.   (Photo C60477AC taken at  Saffron-Walden  England on September 1945 provided by Clive Kidd) )
Topmost portion of the RC-82 antenna is a steerable  Adcock  array .The vertical rod in the middle is the sense antenna which allows the operator to determine the true bearing.  A tuned coupling unit is provided to: match the antenna to the receiver Each  RC-82 antenna cane with the  rod set: shown  below.  By selecting a particular rod set, the installer could optimize which portion of the 100 to 156 MHz band  would be monitored.

Qty 8 rods, 28 in. with plug on each end. Resonant frequency = 100 MHz
Qty 8 rods, 23 in. with plug on each end. Resonant frequency = 122 MHz
Qty 8 rods  21 in. with plug on each end. Resonant frequency = 133 MHz.

VHF/DF OPERATION

Radio set SCR-565 is radio direction finding equipment used to obtain a bearing of an aircraft. The operator of the radio set obtains a bearing from the radio signals emitted by the aircraft. This bearing is the direction of flight from the individual direction finding "fixer" station. The station operator then reports the bearing of  the aircraft to the operations block  by wire telephone.

Researcher and radio collector Tom Brent provides this backgrounder on VHF Direction Finding

STAFF ACCOMMODATIONS AT MOUNT DOUGLAS

At this time it is believed  that at least 4 operators would be needed to man the Mt. Douglas installation. That would  provide for  7 x 24 hour coverage with one day off per week for each operator. . It is believed that Mount Douglas personnel were shuttled back and forth  from  HMCS Givenchy at the Esquimalt navy base.


HISTORY OF THE MOUNT DOUGLAS SITE

Darrell Wick, President  Friends of Mount Douglas Park Society (2020) provides this history about the site:

• Road to summit was completed in 1939.
• At the summit is a concrete octagon base. It has similar dimensions to the Beeston Hill Station. It has what appears to be a cable tunnel leading from the interior to the outside. There is a more recent wall and bench structure that was built in 1960 on top of the original octagon.
• The base of wood power or phone poles have been found in the vicinity.
• I have seen and taken photos of a similar hexagon base at Radar Hill near Tofino.
• Two people that lived in the area during WWII told me in 2015 that there was a secret military base at the summit and they were not allowed to go there. Their description matched photos of the Beeston Hill Station.
• A BC Archives photo from 1944 show a large diameter tower structure at the summit.
• The structure was removed sometime prior to 1950.
• The site is an excellent VHF site with line of sight to Strait of Juan de Fuqua and Sails Sea. Line of sight to the Victoria airport is blocked by Mount Newton, which overlooks the airport.
• Mt Douglas is within Mt Douglas Park and within the Municipality of Saanch. However, the park was originally a conditional crown grant to Victoria up until 1990 when it was returned to the province. It was then conditionally granted to Saanich in 1992. In both cases, the grant condition related to maintaining the park as a natural park.
• While Mt Douglas Park was with Victoria, but located within Saanich, it was managed by a joint Victoria-Saanich committee. I have not found any mention of this military site in the sketchy committee minutes. I never found anything relevant in the Victoria archives.
• A little ways away, a bit lower down, is a 1x1x1 Meter concrete block. On the top four corners are small holes (depressions) and one in the centre. Nothing else.
• A little further down is a large pond that we think has a man made “dam”.
• There has been and currently is another VHF radio side 150 m to the southeast. I do not know when it was first constructed. This has nothing to do with the summit military site.

BACK THEN PHOTOS

/mount_douglas_view_of_point_no_point_from sea.jpg
POINT NO POINT, BC : As seen from this view on the beach next to the Juan De Fuca Strait. (Photo credit unknown)
POINT NO POINT, BC : This photo , taken in 1955,  shows a TR-17 VHF/DF installation. It housed the SCR-565 equipment as shown in the network diagram . The structure collapsed in 1966.  All that remains is the base. Point No Point was formerly called. Glacier Point .

Evelyn Packham, a Registered Nurse who had served as matron at the Army hospital at Terrace during World War II, bought the large tract of land in 1952, at a time when the west coast rain forest was beginning to regenerate after extensive logging had taken place there during the 1930s. Evelyn eventually developed the property into a lodge which is still serving vacationers  today. (Photo of Rosemary Owen  taken by her husband Gwyn Owen. Sooke News Mirror)

/mount_douglas_tr17.jpg

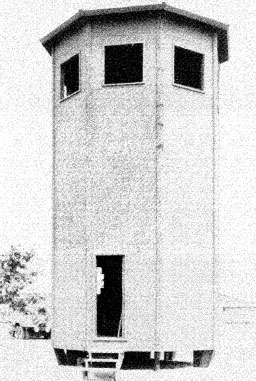

This structure, whose image appears in the Fighter Control Handbook (page38),  identifies the structure in the colour photo as type TR-17. The tower is a prefabricated three-story, octagonal  building capable of easy assembly in the field. It is designed to house radio set SCR- 564, DF homing station, or radio set SCR- 565, DF fixer station. Tower TR- 1 7 is so constructed that if it should become necessary to move the station to a new location, all but the concrete base may be salvaged.

All parts for tower TR- 17 are packed in thirteen export boxes . The boxes are designed and constructed to permit unpacking the parts without destroying the boxes. The size of each of these boxes is as follows:

Height 30 ft, 7 .625 in.
Width of Side 5 ft, 9.25  in.
Largest Diameter . 15 ft
Between Flats 12 ft

Radio sets used  with TR-17 are   SCR- 564, SCR- 565 and SCR- 645

Taken from Mt Tolmie in 1944, this photo shows the height (225 meters) of Mount Douglas. The  arrow points to the VHF/DF installation. (From the British Columbia Archives)

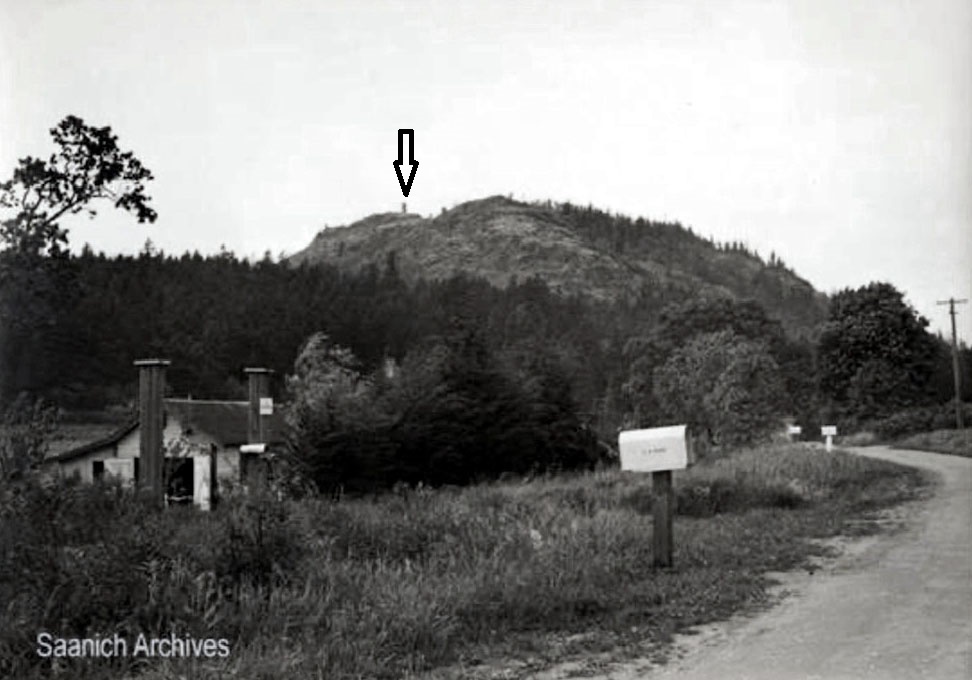

MOUNT DOUGLAS: Taken from Cedar Hill Road sometime between 1944 and 1947.(Date based on C.A. Bird on mailbox and records show he lived there then, but not after. (From the Saanich Archives. Photo  R-120-2012-007-007)

WHAT'S  THERE NOW?

/mount_douglas_octagon2.jpg

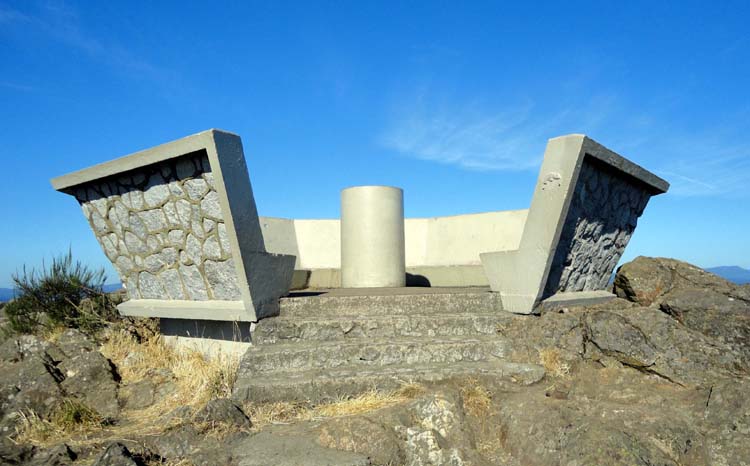

Mount Douglas: This is all that is left of the original VHF/DF system in  Mount Douglas Park.  It was unofficially nicknamed the "cupcake" The base consists of two octagons, an inner one that is covered with a thin layer of rose coloured concrete and an outer octagon that the cupcake sits on   ( Photo via  Mike Goldsworthy )

The pedestal at Beeston Hill, UK has the following description :  "The concrete remains of part of this facility can still be seen on the summit of the hill.  It consists of an octagonal concrete base that measures 3,850 mm (12 ft 8 in) across, with a channel running west to east across the middle. On the southern edge of the octagon is a raised area of concrete, which is 225 mm (8.9 in) higher than the rest of the base. Around the edge of the octagon are the remnants of what was once a reinforced parapet, which has long been removed. There are also signs of a Fllatiron brick wall running westward away from the raised area. The octagonal shape of the base indicates that a direction-finding station operator's hut stood there. It would have consisted of a double skinned wooden structure in which the cavity was filled with shingle pebbles designed to make the structure "splinter proof" or "bulletproof". (Photo by Darrell Wick )

Mount Douglas: A view of the "cupcake" from the other side. The rock faced wall with interior seats was installed  on top of the octagon base around 1960. Empty .303 cartridges from 1943 continue to be found in the Mount Douglas Park area. (Photo by Darrell Wick )

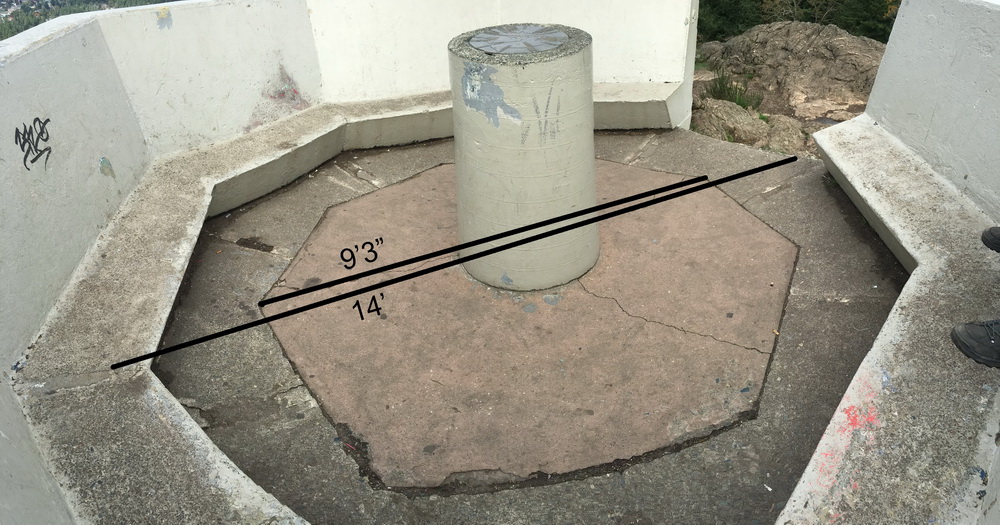

Mount Douglas: This image illustrates the dimensions  of the concrete base. By 1950,  the tower had been demolished and replaced with a wood observation deck. (Photo by Darrell Wick )



/mount_douglas_point_no_point_base.jpg

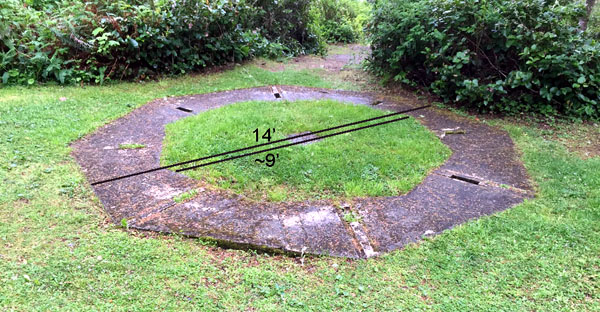

Point No Point: All that remains is this octagon base. (Photo by  Darrell Wick)
Tofino: , BC: Located on the western side of Vancouver Island on Radar Hill. All that's left of the installation is a  hexagon base. .(Photo by  Darrell Wick)

Credits and References:

1)  Mike.Goldsworthy <Mike.Goldsworthy(at)saanich.ca>
Park Planner + Designer;  Parks Division;
Parks, Recreation and Community Services, District of Saanich
2   Tom Brent  <navyradiocom(at)gmail.com>
3)   https://en.wikipedia.org/wiki/Beeston_Hill_Y_Station
4) Fall 2015 edition of the Friends of Mount Douglas Park Society.
5) Darrell Wick  VE7OB    <darrellat)mountdouglaspark.ca> President, Friends of Mount Douglas Park Society
6) John Wise <jcwise49(at)gmail.com>
7) Clive Kidd <cjckidd(at)waitrose.com>
8) Martin Briscoe<[martin(at)mbriscoe.me.uk>
9) Stuart Rayner    <stuart.rayner(at)mac.com>
10) Sooke News Mirror article from Aug 4/17
https://www.sookenewsmirror.com/community/ww11-rcaf-range-finder-found-at-point-no-point/
11) VHF Fighter Control document  http://www.radiomanual.info/schemi/Surplus_Handbooks/VHF_fighter_control_equipment_handbook_1943.pdf
12)  Radio (Radar)  http://www.c-and-e-museum.org/Pinetreeline/misc/other/misc5b3.html
13) SCR-588 info http://fortwiki.com/SCR-588
14) Doug Rollins, Librarian/Historian- BC Aviation Museum, Victoria airport
