CH-100 Transceiver

---

Type:   HF SSB  transceiver
Power output: 100 watts
Frequency range: 1.6 to 9 MHz. An extension kit allows operation  from 12.3 to 13.2 MHz
Channels:  11 channel standard. Can be expanded to 20 channels with an  A/B switch
Dimensions: 4 inches high by 19 inches wide. It was designed for rack mounting in a standard 19 inch rack but it worked well as a desktop radio.
Default Input power: 13.6 VDC  Using an internal converter, 26 and 36 VDC operation is also supported.
Colour:  Brown, the same color scheme as the BH-30, and the DT-85 series of radios.
Weight: 28.4 pounds when fitted with an AC power supply.

Comment:

1) This radio allows for a choice of a modular power supply:  115/230 VAC, 26/36 VDC, or 13.6 VDC.
2) Alternately , the operator can configure 10 semi-duplex channels.

Semi-duplex communication connection

A radio remote control with a semi-duplex connection can send and receive signals to or from the radiographic receiver. However, at the moment that the signals are sent the remote control cannot receive any return signals from the receiver. As soon as the signal is sent, the “ears” of the remote control are open and listening for incoming signals from the specific receiver. With semi-duplex these signals are a “yes” or “no” which can be translated in a led light that goes on or off.


CH-100 front panel.

CH-100  rear view.

CH-100 markings on heat sink.

All CH-100 photos in this table via Kijiji. Click on image to enlarge,.

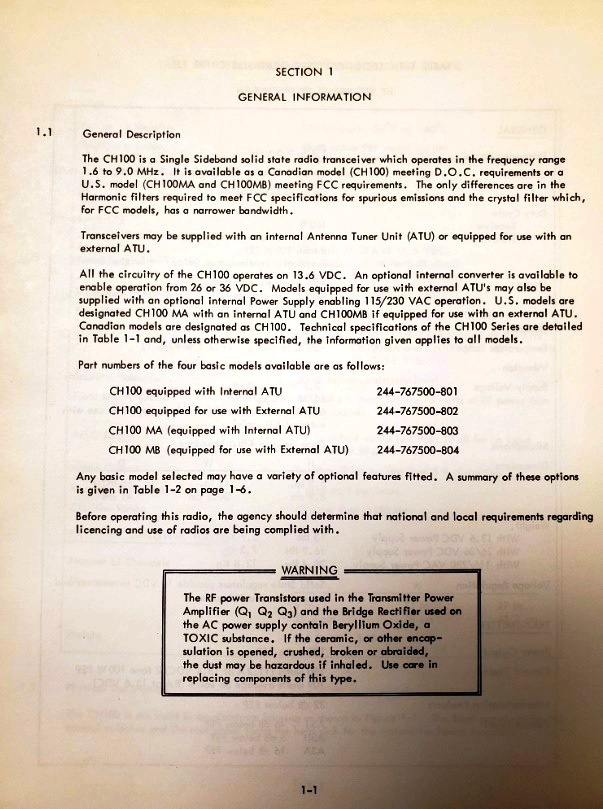

CH-100 manual cover only (Provided by Denis Couillard),

CH-100 general information.

---
