SPECIFICATIONSType: Superheterodyne
Use: UHF Shipboard Receiver.
Frequency range - 225 to 400 MHz. (Except 222 to 232 MHz which is unuseable due to blocking of the IF amplifier by harmonics of the Crystal Multiplier circuits)
IF: 15.5 MHz
Sensitivity: 10 µv or less.
Frequency control: Can be used with manual tuning or 10-channel autotune.
Crystal Type: CR-7
No. of tubes: 21
Modes: MCW or AM only.
Input impedance: 50 ohms.
Primary Power: 110/115/120 VAC, single phase, 300 watts maximun, 175 watts nominal.
Weight: 150 pounds
Dimensions: 13.5" H x 22"W x 22 5/32" D
Circa 1944.
Made by National Co. Malden Mass. and Admiral Corp Chicago, Ill.
Manual No. 900617
![]() |

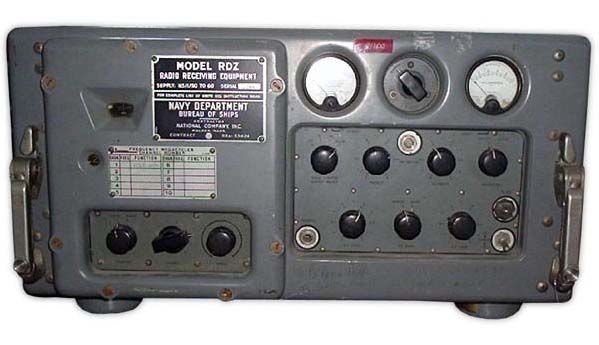

RDZ receiver (Photo courtesy Le Musée Québecois de la Radio) |
![]() |
![]() |

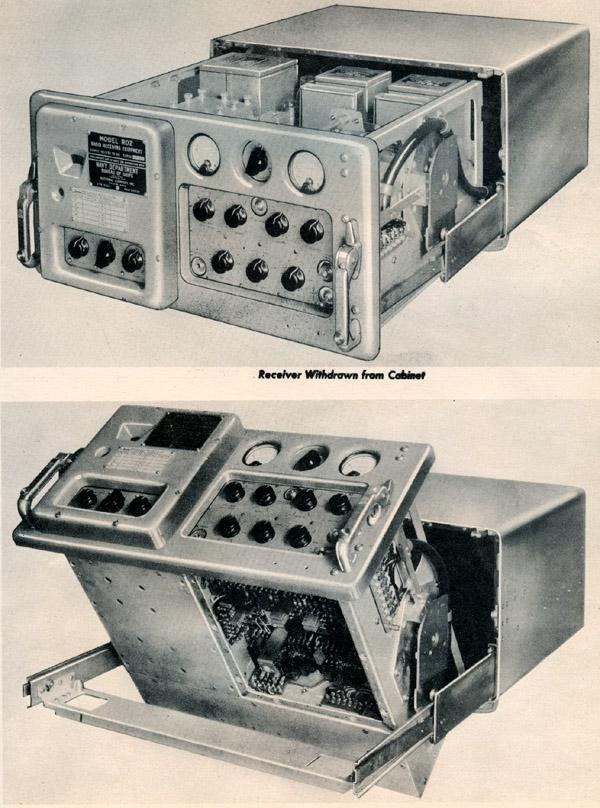

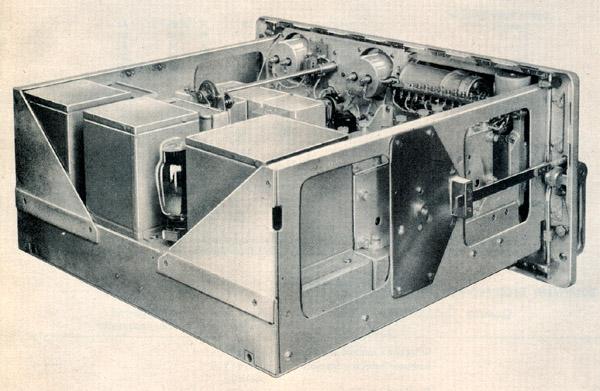

Various internal views of the RDZ receiver. (Courtesy USN) |
