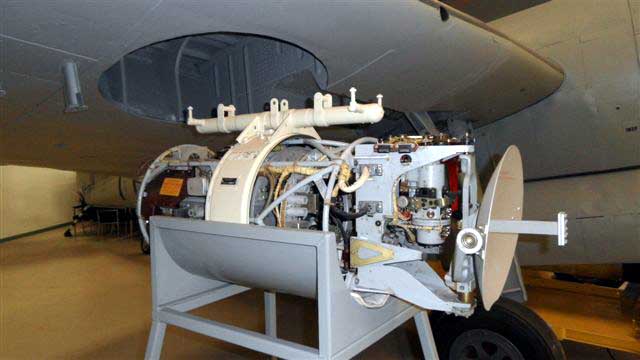

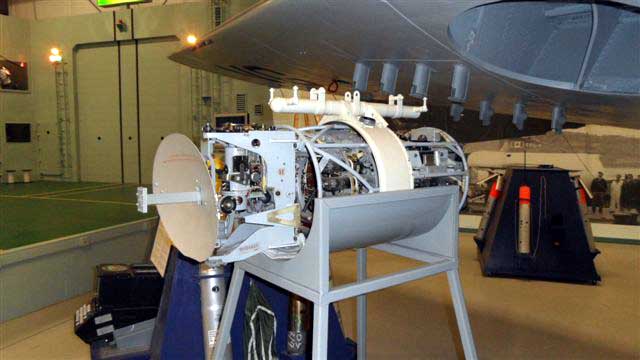

Above and Below: This AN/APS-4 pod is on display at the Shearwater Aviation Museum. (Photos by  Ian Snow VA3QT)

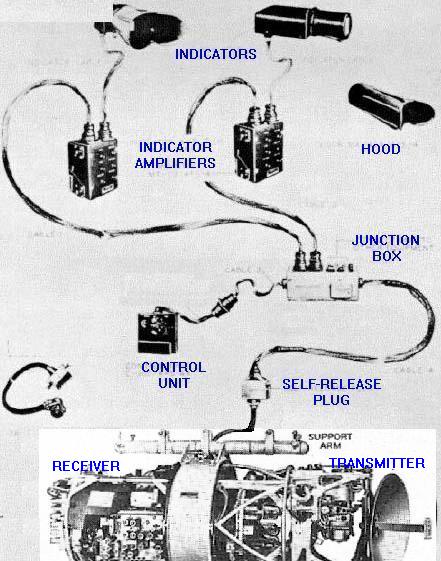

AN/APS-4 system components. (Courtesy Tpub.com)

AN/APS-4 in the Avenger. The scope and control boxes were situated in the Observer's Mate compartment. The equipment is positioned on the forward right-hand quarter of his action station in the bilge of the AS 3 Mk 1. (From publication - Operating Instructions for R.C.N. A/S-3 and A/S-3M Aircraft.  MICN. 3.10.11A , courtesy Leo Pettipas).
