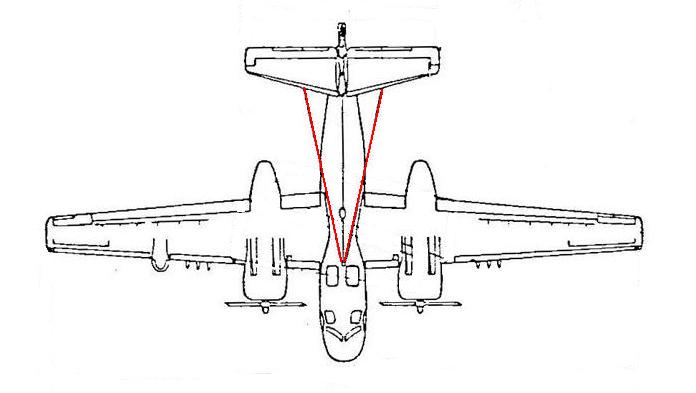

| This diagram shows the placement of the HF antenna. From the fuselage top-midsection to under the tailplane. |
It is virtually impossible to depict the Tracker's HF wire antenna when the wings are folded so the anchor points and insulators are highlighted.
|
| This diagram shows the placement of the HF antenna. From the fuselage top-midsection to under the tailplane. |
 |

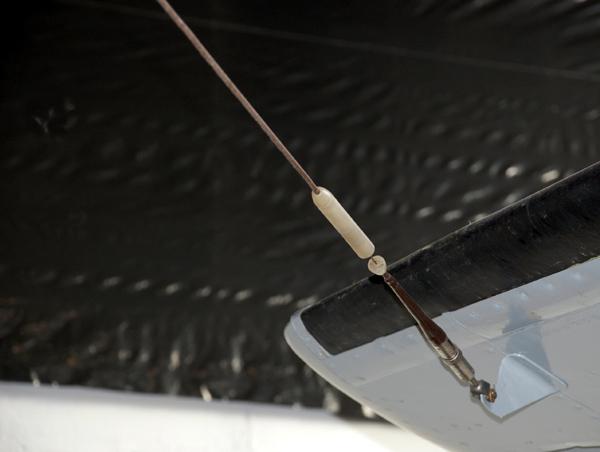

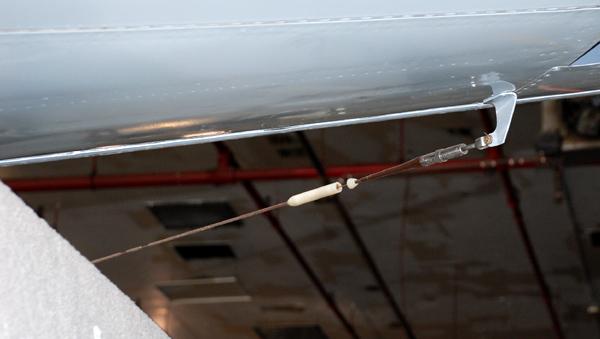

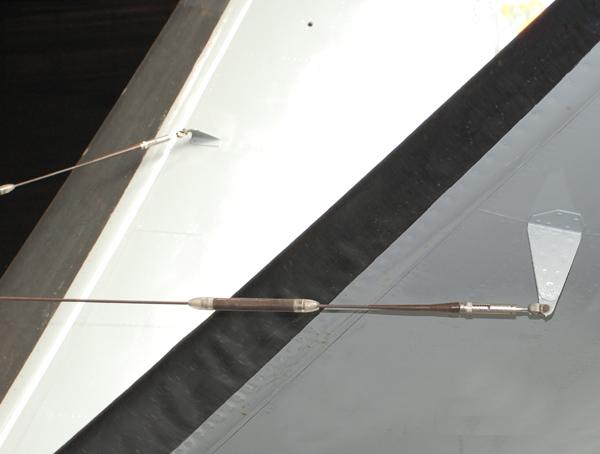

| The upper wire belongs to the ARN-6 sense antenna. The lower wire is anchored to the underside of the port tailplane. |
 |
 |
 |

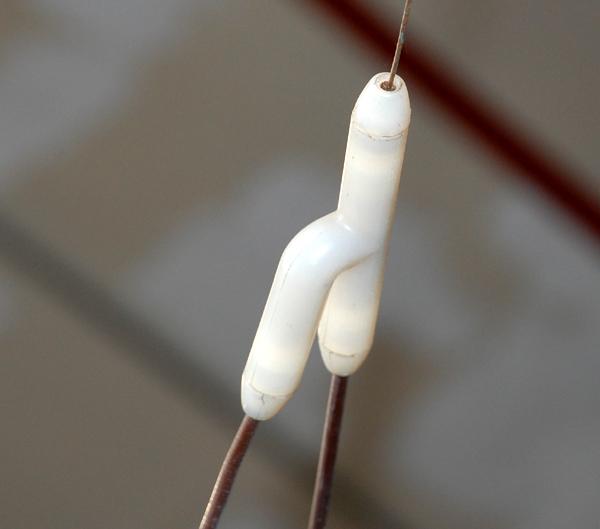

| Feed point |
| All photos in this table by Jerry Proc |
