This SW2-C example is held by the The Maritime Museum of British Columbia. Held in the museum's storage facility for a number of years, it remained as a yet-to-be-discovered artifact until its identification was confirmed during the week of June 4, 2012. This is believed to be the only surviving example of its kind.
![]() |

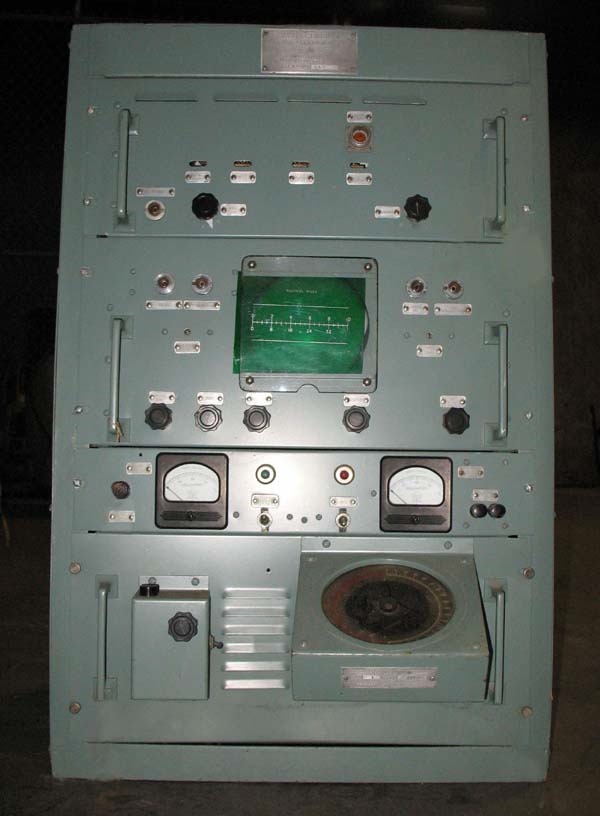

SW2-C receiver - front view. |
![]() |

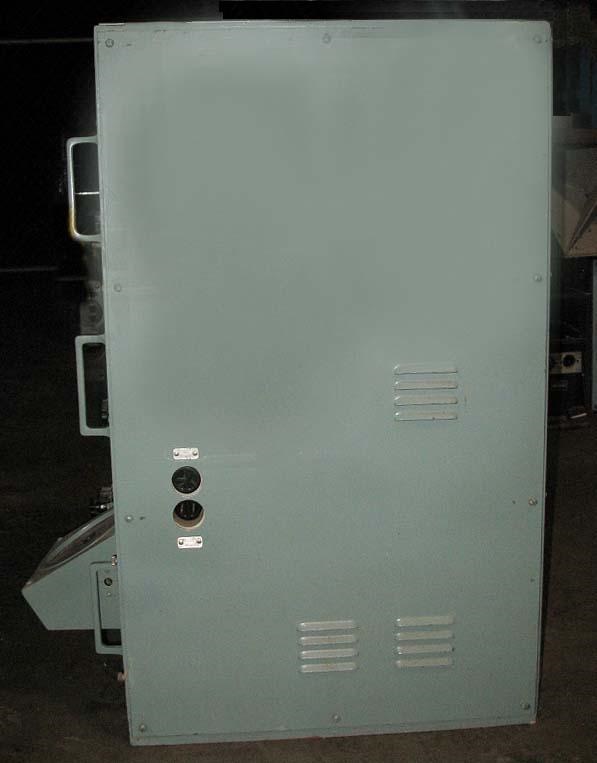

SW2-C receiver - right side panel. The left side only has cooling louvers. |
![]() |
Range scope: Short range is 0 to 10 miles. Long range is 0 to 40 miles |
![]() |

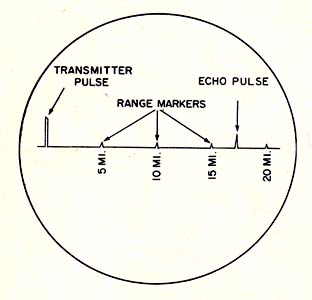

This is how a target would have been displayed on the A-scope of the SW2C. (Graphic courtesy ABC's of Radar) |
![]() |

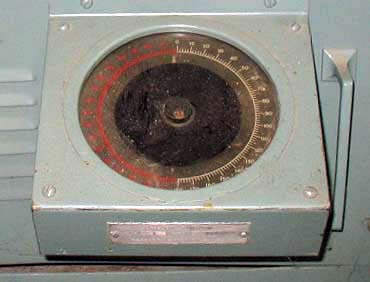

Antenna position indicator |
![]() |

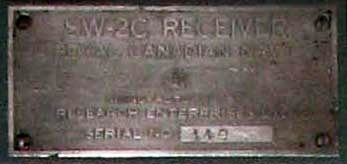

Receiver nameplate. S/N 440 made by Research Enterprises for the Royal Canadian Navy. Note the placement of the dash in the model number. It does not appear in the same format as the transmitter nameplate. |
All photos in this table by Frank Statham. |
![]() |

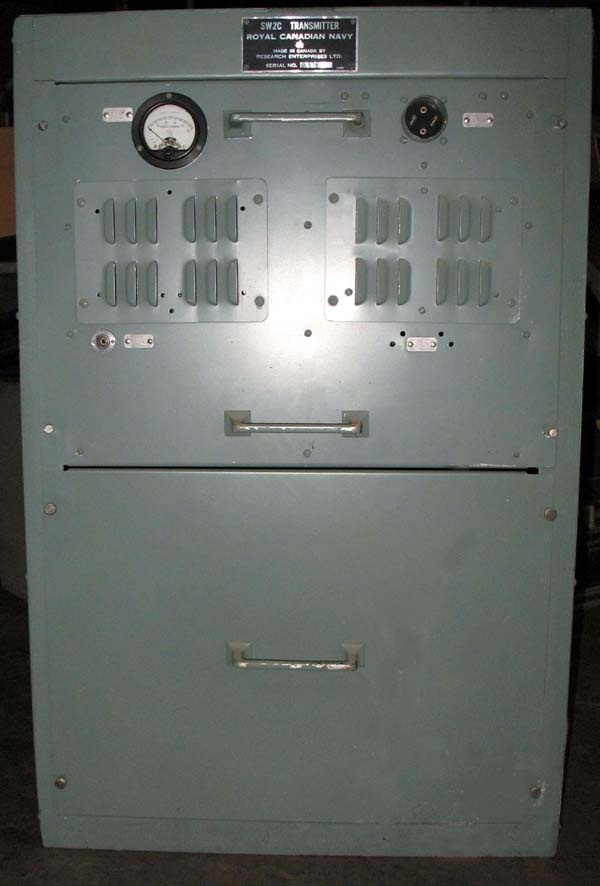

SW2C transmitter - front view |
![]() |
SW2C transmitter. Right side view. The left side panel (not shown) has a single black power connector like the one in the above photo.. |
![]() |
SW2C transmitter - meter detail |
![]() |

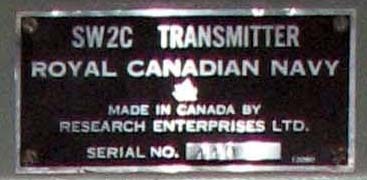

Transmitter nameplate: S/N 440 |
All photos in this table by Frank Statham. |
The following corvettes were known to have been fitted with SWC radar types as confirmed from photos.AGASSIZ
BRANDON
CHILLIWACK
COLLINGWOOD
DAWSON
LA MALBAIE
LUNENBURG
SASKATOON
SHERBROOKEThese corvettes look like they were fitted with SWC but the photos lack sufficient resolution.
AMHERST
DUNDAS
HEPATICA
KAMLOOPS
KENOGAMI
WOODSTOCK
